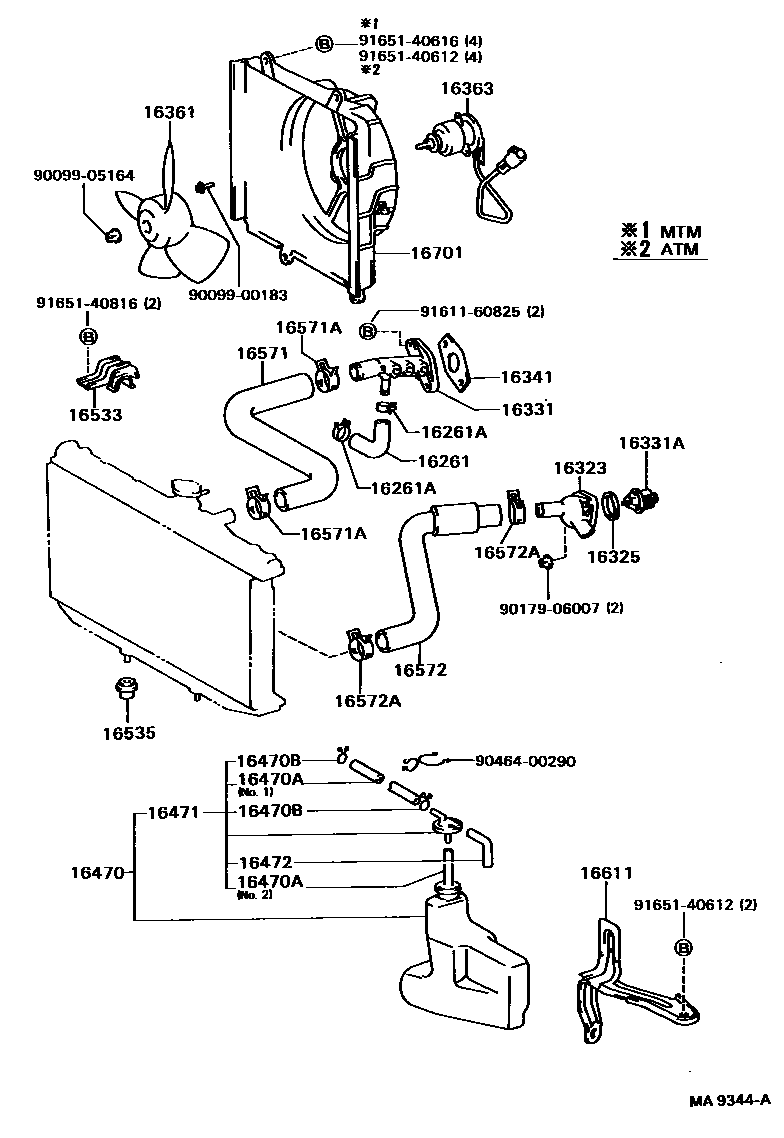

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16261HOSE, WATER BY-PASS

main16261-62010i2VZFE..VZV21198802-198808

main16261-63010i1SI..SV20198611-198904

main16261-74010i3SFE..SV21198611-198904

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i2VZFE..VZV21198802-198808

sub96135-51300

main90467-21001i1SI..SV20198611-198904

sub90467-21006

main90467-22003i3SFE..SV21198611-198904

sub90467-21010

16323HOUSING, WATER INLET

main16323-63020i1SI..SV20198611-198904

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i2VZFE..VZV21198802-198808

main16325-63010i1SI,3SFE..SV2#198611-198904

sub16325-63011

16331OUTLET, WATER

main16304-74030i3SFE..SV21198611-198904

main16331-62010i2VZFE..VZV21198802-198808

sub16331-62011

main16331-63060i1SI..SV20..5F198611-198904

main16331-63070i1SI..SV20..4FC198611-198904

16331ATHERMOSTAT

main90916-03046i1SI,3SFE..SV2#198611-198904

*WAX 82-95

main90916-03075i2VZFE..VZV21198802-198808

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-62020i2VZFE..VZV21198802-198808

sub16341-62030

main16341-63010i1SI,3SFE..SV2#198611-198710

sub16341-63011

16361FAN

main16361-63020i1SI,3SFE..SV2#..4FC198611-198904

sub16361-74070

main16361-63040i1SI,3SFE..SV2#..5F198611-198904

main16361-64030i2VZFE..VZV21198802-198808

16363MOTOR, COOLING FAN

main16363-10010i1SI,3SFE..SV2#..5F198611-198904

main16363-74010i2VZFE..VZV21198802-198808

NO.1

main16363-74010i1SI,3SFE..SV2#..4FC198611-198904

main88550-32060i2VZFE..VZV21198802-198808

NO.2

16470TANK ASSY, RADIATOR RESERVE

main16470-62010i2VZFE..VZV21198802-198808

sub16470-62011

main16470-74040i1SI,3SFE..SV2#198611-198808

sub16470-74041

main16470-74041i1SI,3SFE..SV2#198808-198904

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1SI,3SFE..SV2#198611-198710

L=1000(*H,L=450),NO.1,NO.2

main90445-12078i2VZFE..VZV21198802-198808

L=600(*H,L=170),NO.1,NO.2

main90445-12078i1SI,3SFE..SV2#198710-198904

L=600,NO.1,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1SI,3SFE..SV2#198611-198904

16471CAP SUB-ASSY, RESERVE TANK

main16405-62010i2VZFE..VZV21198802-198808

sub16405-62011

main16405-74030i1SI,3SFE..SV2#198611-198808

sub16405-74031

main16405-74031i1SI,3SFE..SV2#198808-198904

sub16405-62011

16472HOSE, BREATHER

main85338-74040i1SI,3SFE..SV2#198611-198904

16533SUPPORT, RADIATOR, UPPER

main16533-64071i2VZFE..VZV21198802-198808

main16533-74040i1SI,3SFE..SV2#198611-198904

16535SUPPORT, RADIATOR, LOWER

main16535-64021i2VZFE..VZV21198802-198808

main16535-74030i1SI,3SFE..SV2#198611-198904

16571HOSE, RADIATOR, INLET

main16571-62010i2VZFE..VZV21198802-198808

main16571-63050i1SI..SV20198611-198904

main16571-74050i3SFE..SV21198611-198904

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i1SI,3SFE..SV2#198611-198904

sub90467-34003

main90467-37001i2VZFE..VZV21198802-198808

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-62010i2VZFE..VZV21198802-198808

main16572-74050i1SI,3SFE..SV2#198611-198904

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i1SI,3SFE..SV2#198611-198904

sub90467-34003

main90467-34003i2VZFE..VZV21198802-198808

sub90467-34004

16611BRACKET, RADIATOR RESERVE TANK

main16611-74030i1SI,3SFE..SV2#198611-198904

16701SHROUD SUB-ASSY, FAN

main16711-62020i2VZFE..VZV21198802-198808

main16711-74070i1SI,3SFE..SV2#..5F198611-198904

main16711-74080i1SI,3SFE..SV2#..4FC198611-198904

9009900183

main90099-00183

9009905164

main90099-05164

9017906007

main90179-06007

9046400290

main90464-00290

9161160825

main91611-60825

9165140612

main91651-40612

9165140616

main91651-40616

9165140816

main91651-40816

30 parts on this diagram · 4 diagrams in section
