ENGINE OIL COOLER

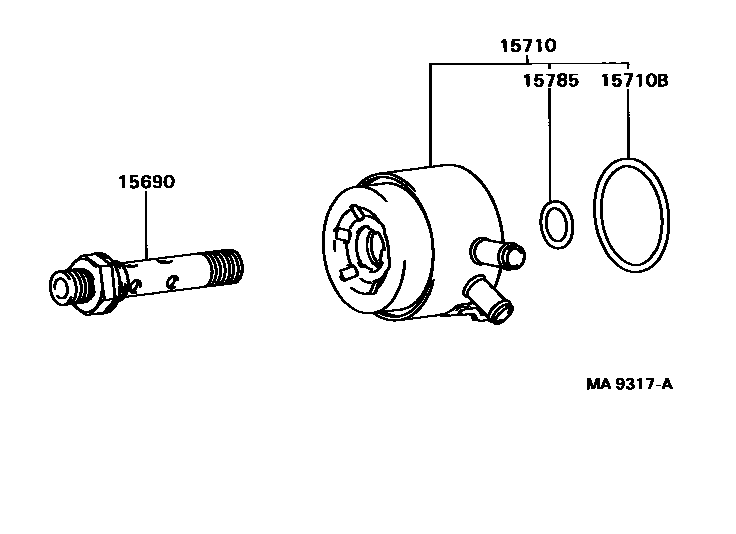

Parts diagram

15690VALVE ASSY, OIL COOLER RELIEF

main15690-74010i198611-198806

main15690-74011i198806-198904

15710COOLER ASSY, OIL

main15710-74020i198611-198806

main15710-74021i198806-198904

15710BRING, O(FOR OIL COOLER)

main90301-52002i198611

15785GASKET, OIL COOLER

main15785-35010i198611

4 parts on this diagram · 1 diagram in section
