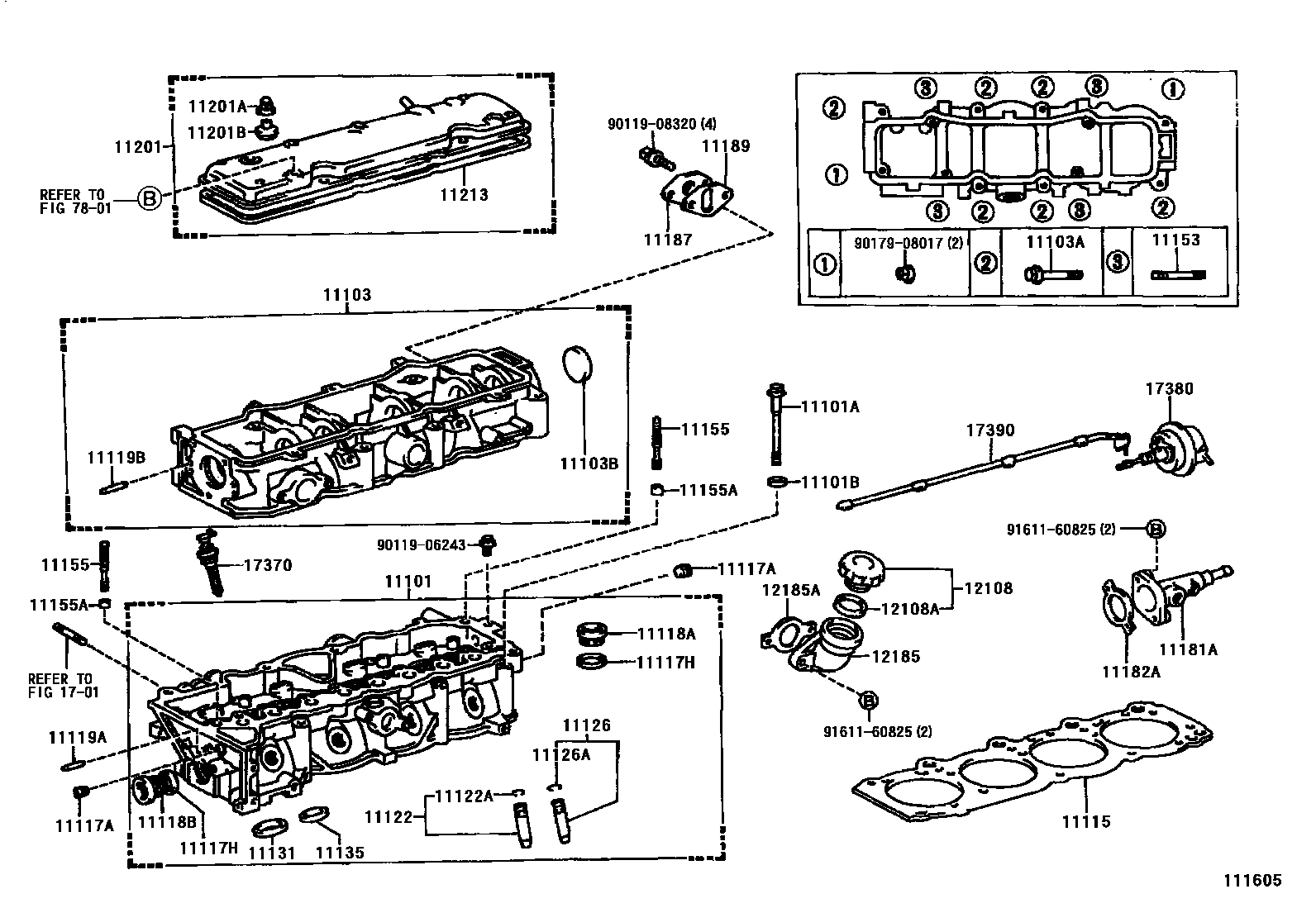

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103HOUSING SUB-ASSY, CAMSHAFT
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103BPLUG, TIGHT, NO.1(FOR CAM HOUSING)
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117HGASKET(FOR WATER HOLE)
PNC11118A
11118APLUG, STRAIGHT, NO.1
11118BPLUG, STRAIGHT, NO.2
11119APIN, STRAIGHT, NO.1
L=14,OD=6
11119BPIN, STRAIGHT, NO.2
L=14,OD=6
11122BUSH, INTAKE VALVE GUIDE
STD
STD,STD
O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05,O/S 0.05
STD
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD,STD
STD,STD
STD
O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11153BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
11155APIN, RING W/HEAD
11181PLATE, CYLINDER HEAD, REAR
11181ACOVER, CYLINDER HEAD, REAR
11182AGASKET, CYLINDER HEAD REAR COVER
11187COVER, CAMSHAFT HOUSING, REAR
11189GASKET, CAMSHAFT HOUSING REAR COVER
11201COVER SUB-ASSY, CYLINDER HEAD
NO.1
NO.2
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12185HOUSING, OIL FILLER CAP
12185AGASKET, OIL FILLER CAP HOUSING
1701MANIFOLD
17370VALVE ASSY, SWIRL CONTROL
17380ACTUATOR ASSY, SWIRL CONTROL
17390LINK ASSY, SWIRL CONTROL
7801ACCELERATOR LINK
9011906243
main90119-06243
9011908320
main90119-08320
9017908017
main90179-08017
9161160825
main91611-60825
44 parts on this diagram · 3 diagrams in section
