STANDARD TOOL

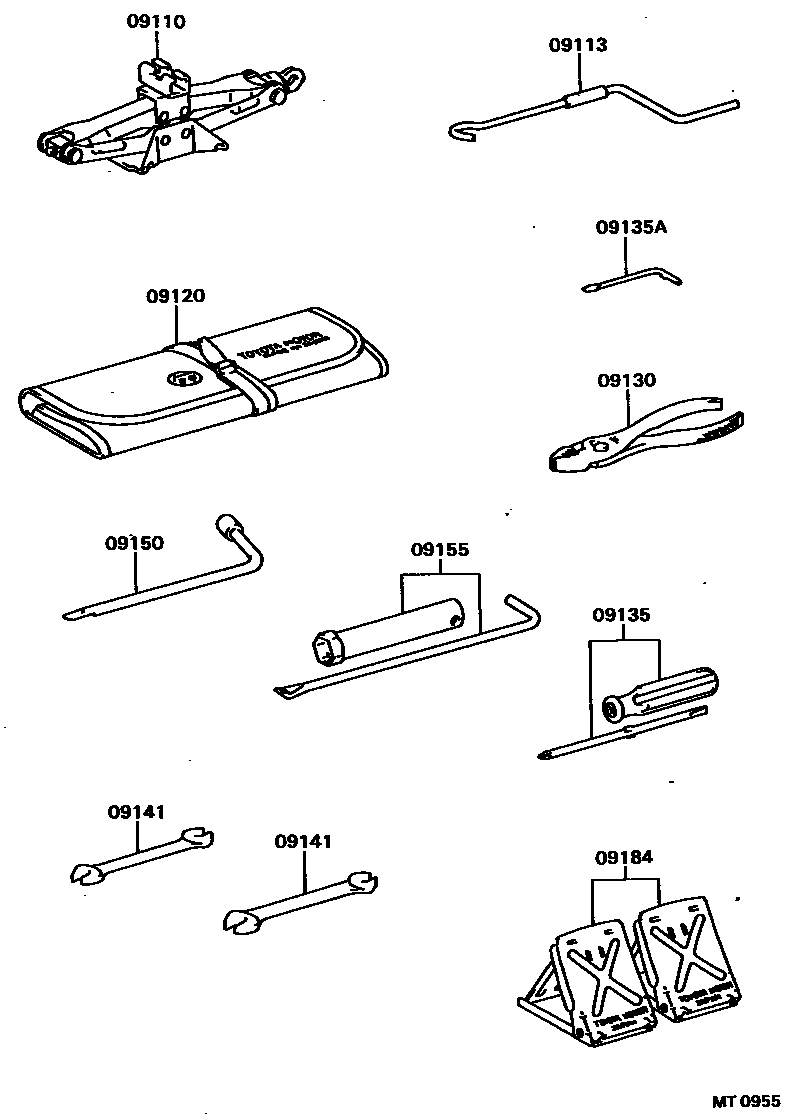

Parts diagram

09110JACK ASSY

main09110-20042i198802-198808

09113HANDLE, JACK

main09113-32010i198802-198808

09120BAG, TOOL

main09120-10030i198802-198808

09130PLIERS

main99913-11500i198802-198808

09135DRIVER, SCREW

main99915-10700i198802-198808

09135ABIT, SCREW DRIVER

main09135-00012i198802-198808

09141SPANNER

main99914-10810i198802-198808

8 X 10

main99914-11214i198802-198808

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i198802-198808

09155WRENCH, SPARK PLUG

main09155-74010i198802-198808

09184STOPPER, WHEEL

main09184-00010i198802-198808

10 parts on this diagram · 1 diagram in section
