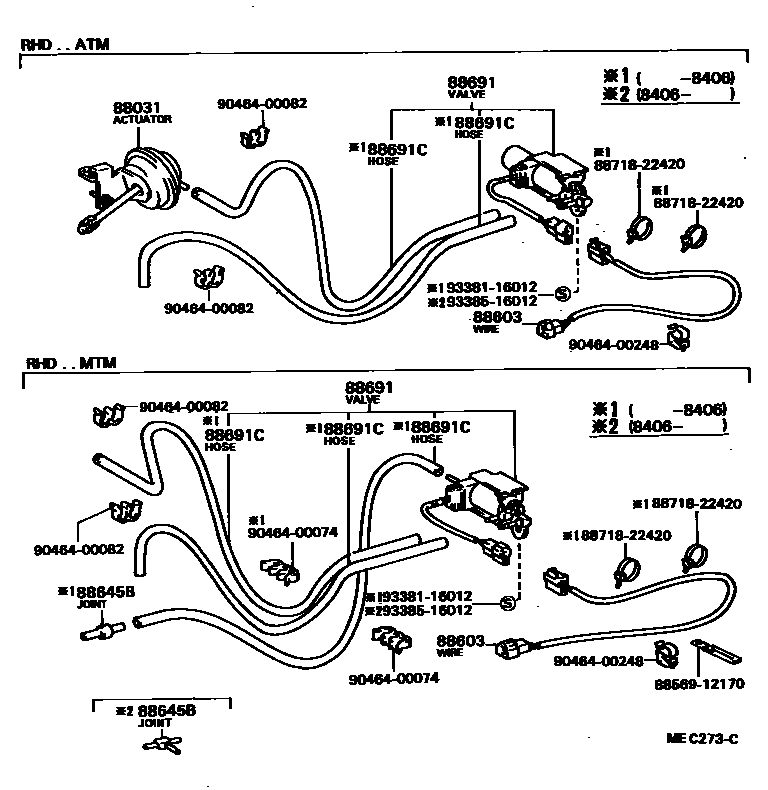

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88031ACTUATOR SET, IDLE-UP

main88031-12120iCV10198308-198508

main88031-30070iCV11..LHD198508-198610

main88031-32010iSV10..4FC198210-198508

88603WIRE, IDLE UP DEVICE

main88605-32020iCV10,SV1#..RHD198210-198406

main88605-32260iCV1#,SV1#..RHD198406-198610

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90405-05127iSV10..RHD..5F198210-198406

2-WAY

main90413-04001iSV10..RHD..5F198406-198610

3-WAY

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-32070iSV10..LHD..4FC198210-198610

main88690-32100iSV10..LHD..5F198210-198610

main88690-32110iSV10..RHD198210-198610

main88690-32120iCV1#..RHD198308-198610

main88690-32140iCV10..LHD198308-198508

main88690-32180iSV11..LHD198408-198610

main88690-32210iSV11..RHD198303-198610

main88690-32230iCV11..LHD198508-198610

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main95411-10030iSV10..RHD198210-198406

L=300,MARK=#0

main95411-10060iSV11..RHD198303-198406

*H,L=600,MARK=#0

main95411-10160iSV10..RHD198210-198406

*H,L=360,MARK=#1

main95411-19960iSV10..LHD; SV10..RHD198210-198406

*H,L=360,MARK=#*; *H,L=600,MARK=#*

8856912170CLAMP (FOR COOLER RELAY)

main88569-12170

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9046400074

main90464-00074

9046400082

main90464-00082

9046400248

main90464-00248

9338116012

main93381-16012

9338516012

main93385-16012

12 parts on this diagram · 5 diagrams in section
