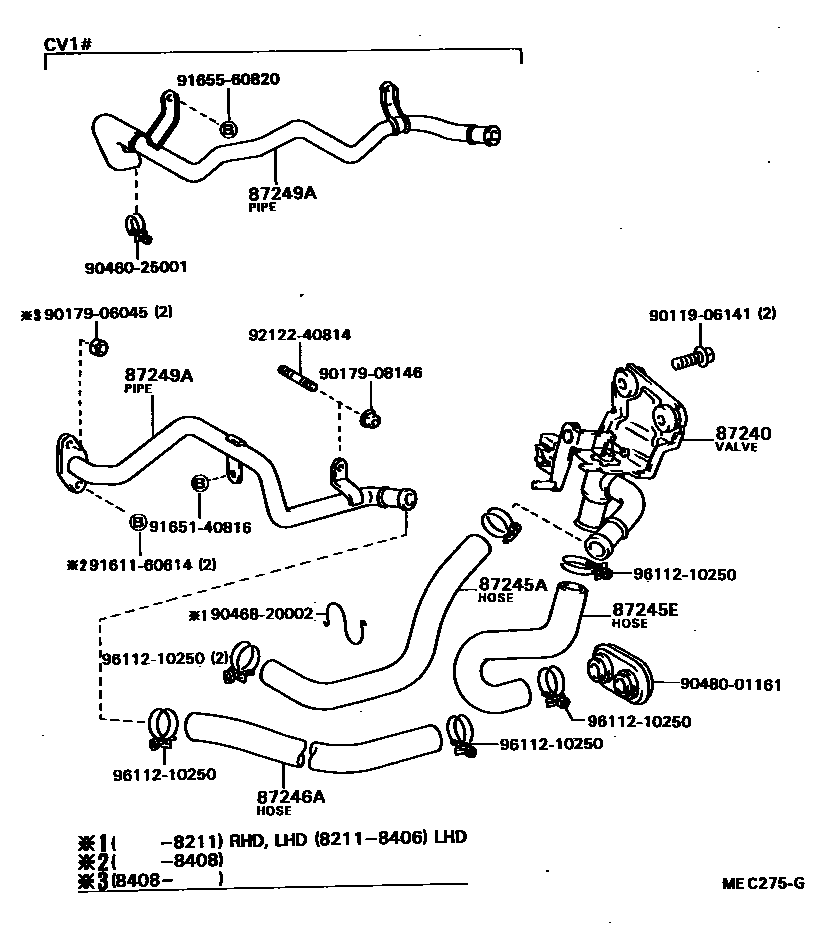

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-32010iCV1#,SV1#..RHD198210-198610

main87240-32020iCV1#,SV1#..LHD198210-198610

87245AHOSE, HEATER WATER, INLET A

main87245-32060iCV1#198308-198610

main99552-30700iSV1#198210-198306

*H,L=520

main99556-30520iSV1#198306-198610

*H,L=520

87245EHOSE, HEATER WATER, INLET E

main87245-32010iCV1#,SV1#..RHD198210-198610

main87245-32040iCV1#,SV1#..LHD198210-198610

87246AHOSE, HEATER WATER, OUTLET A

main87245-32050iCV1#198308-198610

main99552-30500iSV1#198210-198406

main99556-30400iSV1#198406-198610

*H,L=400

87249APIPE, HEATER WATER OUTLET, A

main87208-20170iSV11198305-198406

main87208-32011iSV10198210-198310

main87208-32012iSV10198310-198406

main87208-32020iSV11198303-198305

main87209-12390iCV10198308-198508

main87209-12420iCV11198508-198610

9011906141

main90119-06141

9017906045

main90179-06045

9017908146

main90179-08146

9046025001

main90460-25001

9046820002

main90468-20002

9048001161

main90480-01161

9161160614

main91611-60614

9165140816

main91651-40816

9165560820

main91655-60820

9212240814

main92122-40814

9611210250

main96112-10250

16 parts on this diagram · 1 diagram in section
