HORN

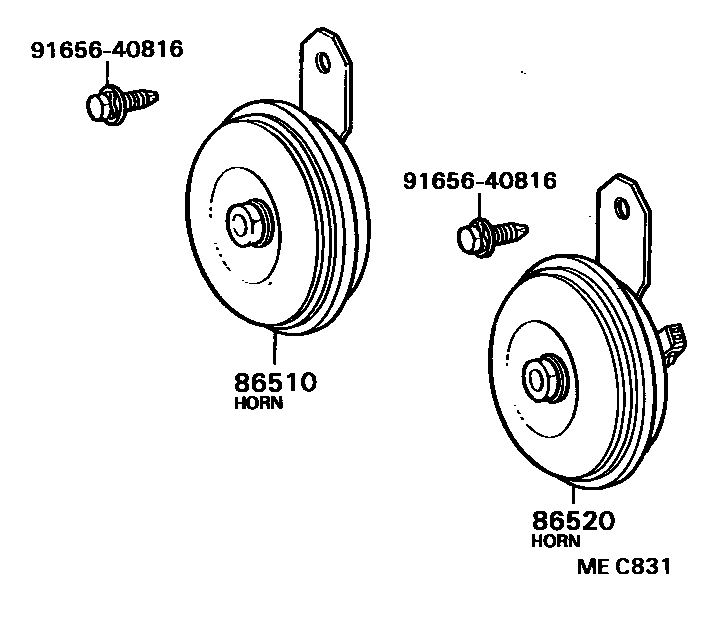

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-22070i198303-198406

DENSO

main86510-22080i198303-198406

MARUKO

main86510-22100i198406-198610

DENSO

main86510-22110i198406-198610

MARUKO

main86510-32010i198210-198508

main86510-32011i198508-198610

86520HORN ASSY, LOW PITCHED

main86520-22070i198303-198406

DENSO

main86520-22080i198303-198406

MARUKO

main86520-22100i198406-198610

DENSO

main86520-22110i198406-198610

MARUKO

main86520-32010i198210-198508

main86520-32011i198508-198610

9165640816

main91656-40816

3 parts on this diagram · 1 diagram in section
