SEAT MOTOR & SEAT HEATER

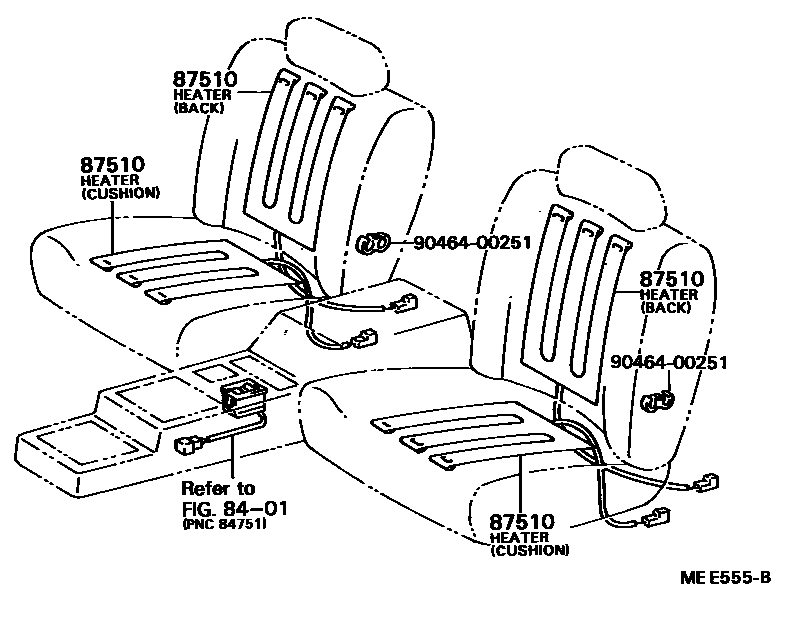

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87510HEATER ASSY, SEAT

main87510-32010×2i198406-198610

CUSHION

main87510-32020×2i198406-198610

BACK

9046400251

main90464-00251

3 parts on this diagram · 1 diagram in section
