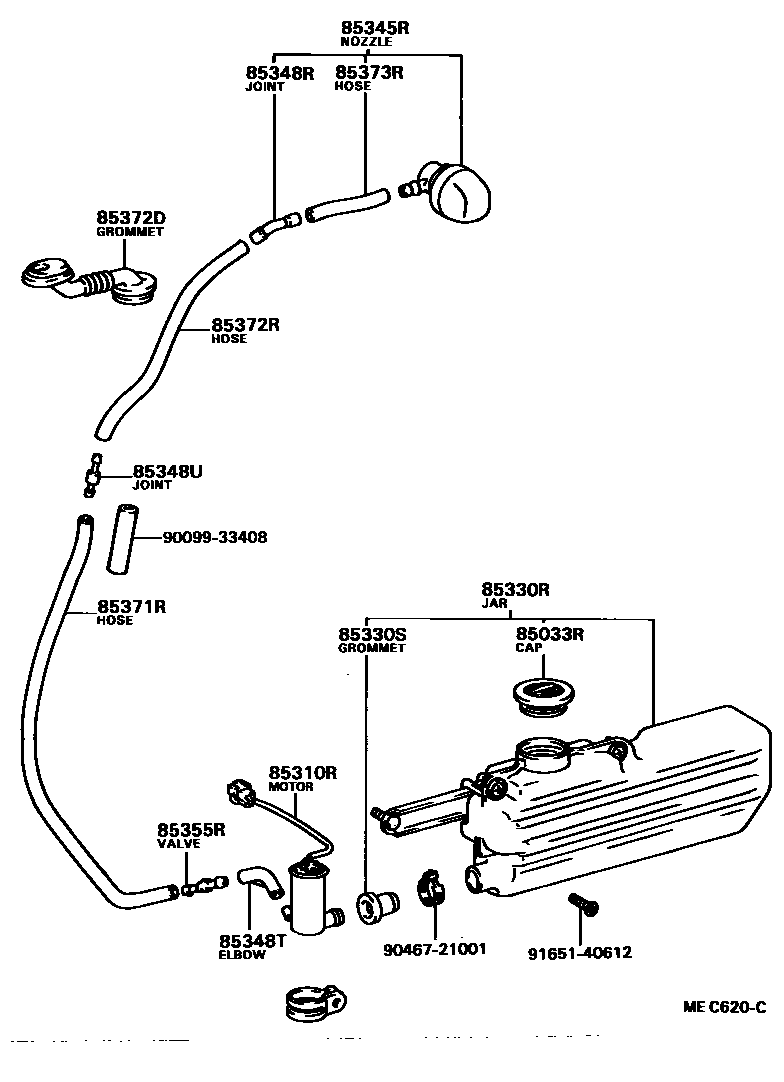

REAR WASHER
85033RCAP ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330RJAR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1800
85372DGROMMET, REAR WASHER HOSE
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1000
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000
9009933408
main90099-33408
9046721001
main90467-21001
9165140612
main91651-40612
16 parts on this diagram · 1 diagram in section
