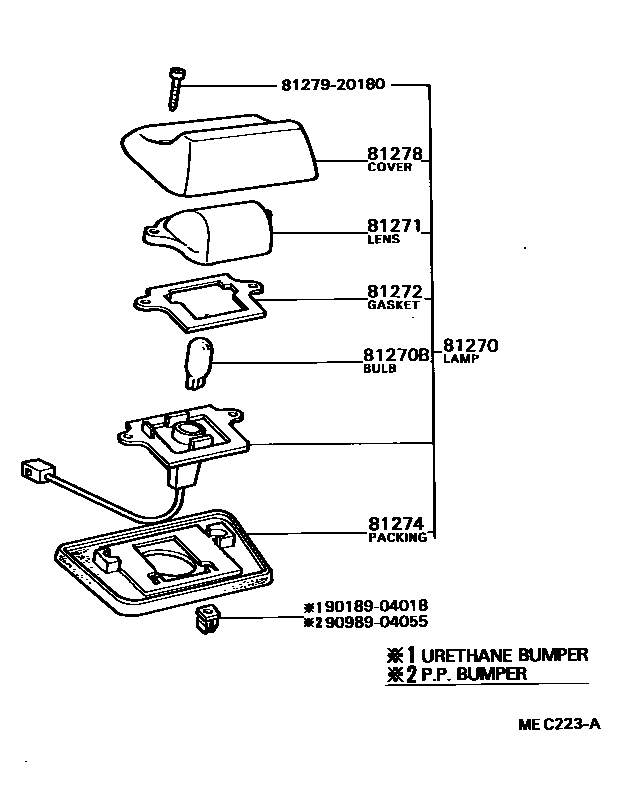

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-14210×2iCV1#,SV1#198210-198610

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iCV1#,SV1#198210-198610

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-22110×2iCV1#,SV1#198210-198610

81272GASKET, LICENSE PLATE LAMP LENS

main81272-22110×2iCV1#,SV1#198210-198610

81274GASKET, LICENSE PLATE LAMP BODY

main81274-22110iCV1#,SV1#198210-198610

81278COVER, LICENSE PLATE LAMP

main81276-10101×2iCV1#,SV1#198210-198610

8127920180WASHER, SIDE TURN SIGNAL LAMP

main81279-20180

9018904018

main90189-04018

9098904055

main90989-04055

9 parts on this diagram · 1 diagram in section
