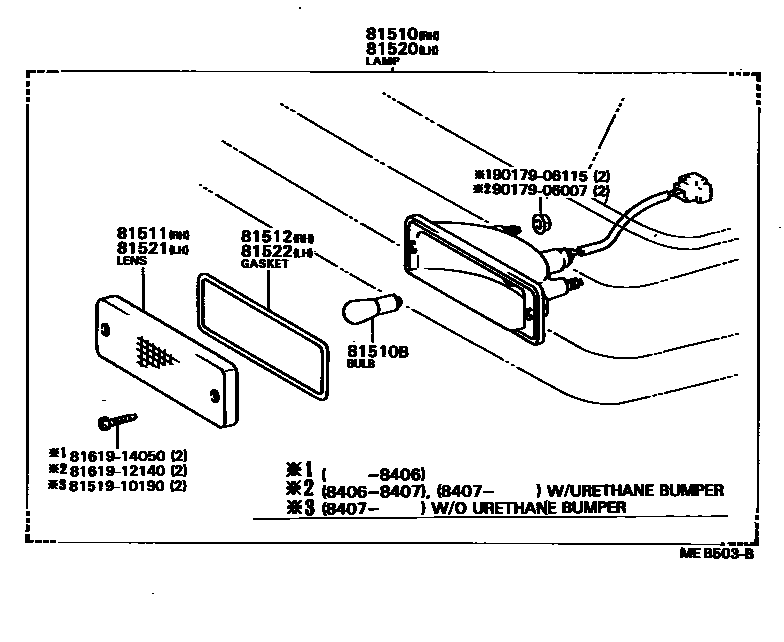

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-39485iCV10,SV1#198210-198406

main81510-39486iCV1#,SV1#198406-198610

W/URETHANE BUMPER

main81510-39525iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iCV1#,SV1#198210-198610

12V 21W,12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12280iCV1#,SV1#198210-198610

W/URETHANE BUMPER

main81511-16080iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14140iCV1#,SV1#198210-198610

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-39485iCV10,SV1#198210-198406

main81520-39486iCV1#,SV1#198406-198610

W/URETHANE BUMPER

main81520-39525iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12260iCV1#,SV1#198210-198610

W/URETHANE BUMPER

main81521-16080iCV1#,SV1#..EUR198406-198610

W/P.P. BUMPER

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14140iCV1#,SV1#198210-198610

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

8161912140

main81619-12140

8161914050

main81619-14050

9017906007

main90179-06007

9017906115

main90179-06115

12 parts on this diagram · 1 diagram in section
