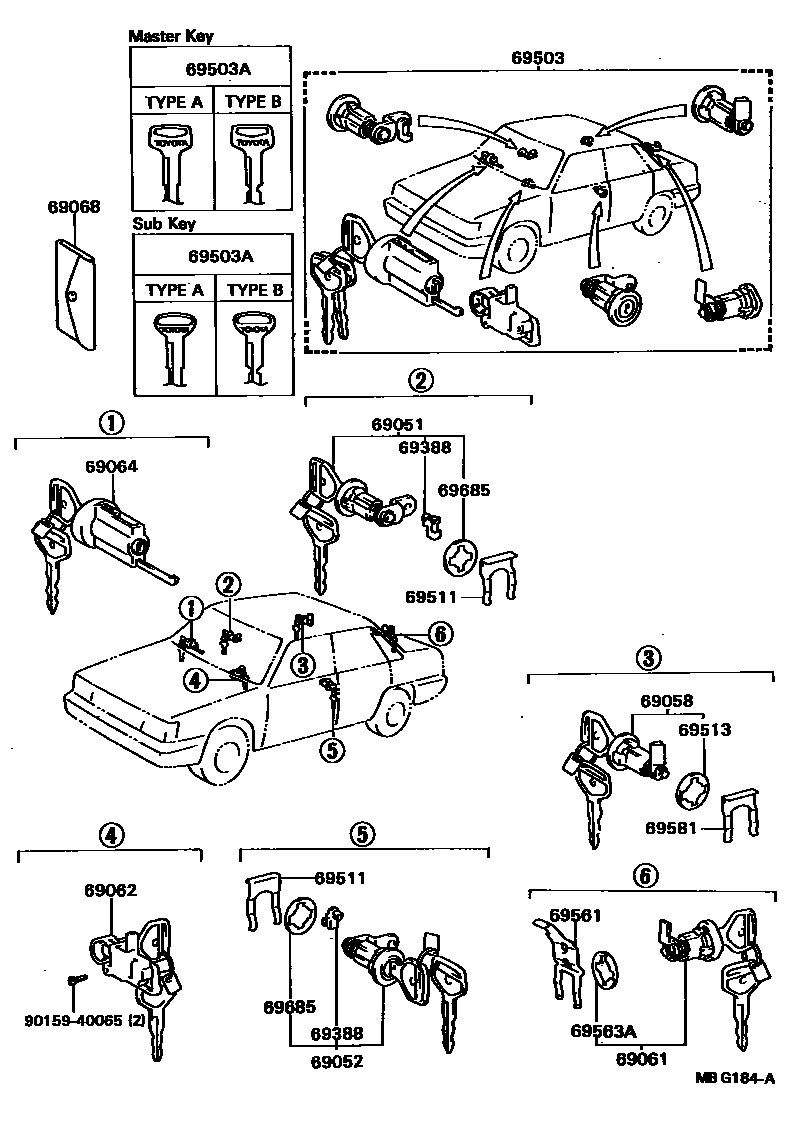

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69058CYLINDER & KEY SET, FUEL FILLER LID
69061CYLINDER & KEY SET, LUGGAGE LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69068COVER SUB-ASSY, KEY
69388SNAP, ROD(FOR DOOR LOCK)
W/BACK DOOR
LH,W/FR DOOR
RH,W/FR DOOR
69503CYLINDER SET, LOCK
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
69503AKEY, BLANK
SUB KEY,W(*68),SUB KEY,TYPE A
69511RETAINER, FRONT DOOR LOCK CYLINDER
69513PAD, FUEL FILLER LID LOCK CYLINDER
69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
69685PAD, LOCK CYLINDER
9015940065
main90159-40065
17 parts on this diagram · 2 diagrams in section
