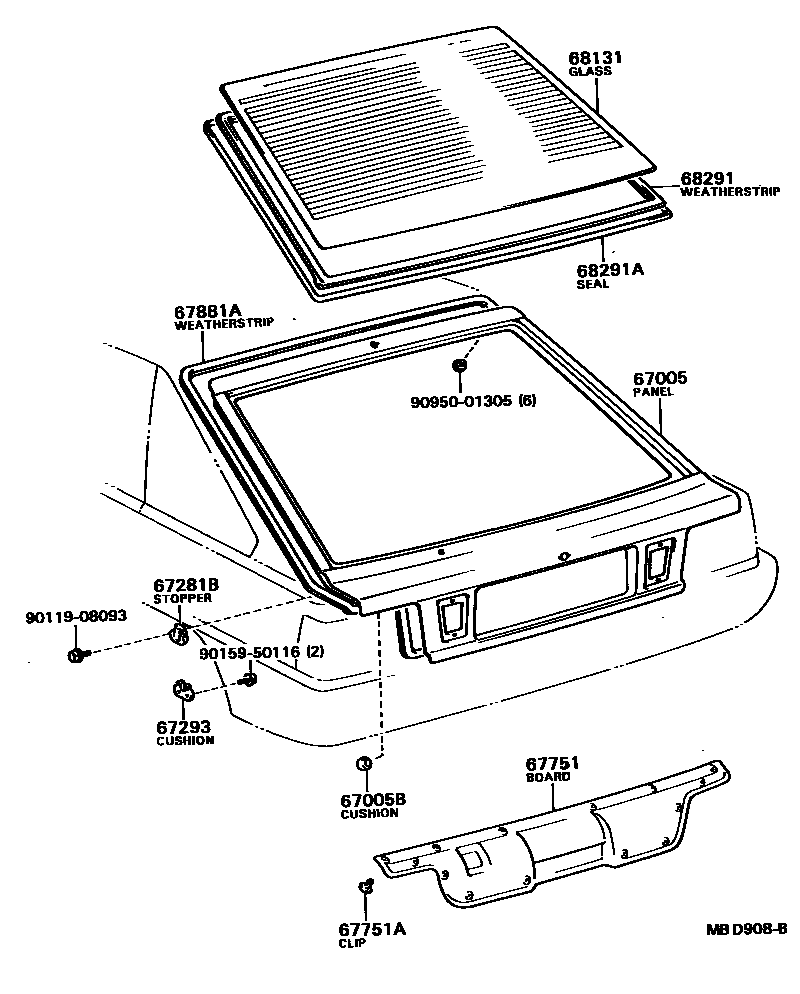

BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/O RR WINDOW WIPER
W/RR WINDOW WIPER
W/O RR WINDOW WIPER
W/RR WINDOW WIPER
W/RR WINDOW WIPER
W/O RR WINDOW WIPER
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
SHADOW GRAY,SHADOW GRAY,TRIM1#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
BLUE,BLUE,TRIM8#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
SHADOW GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=4.0
*EHTT,HEAVY,T=4.0
BRONZE,*EHTT,T=4.0
BRONZE,*EHTT,HEAVY,T=4.0
68291WEATHERSTRIP, BACK DOOR GLASS
68291ASEAL, BACK WINDOW GLASS WEATHERSTRIP
9011908093
main90119-08093
9015950116
main90159-50116
9095001305
main90950-01305
13 parts on this diagram · 1 diagram in section
