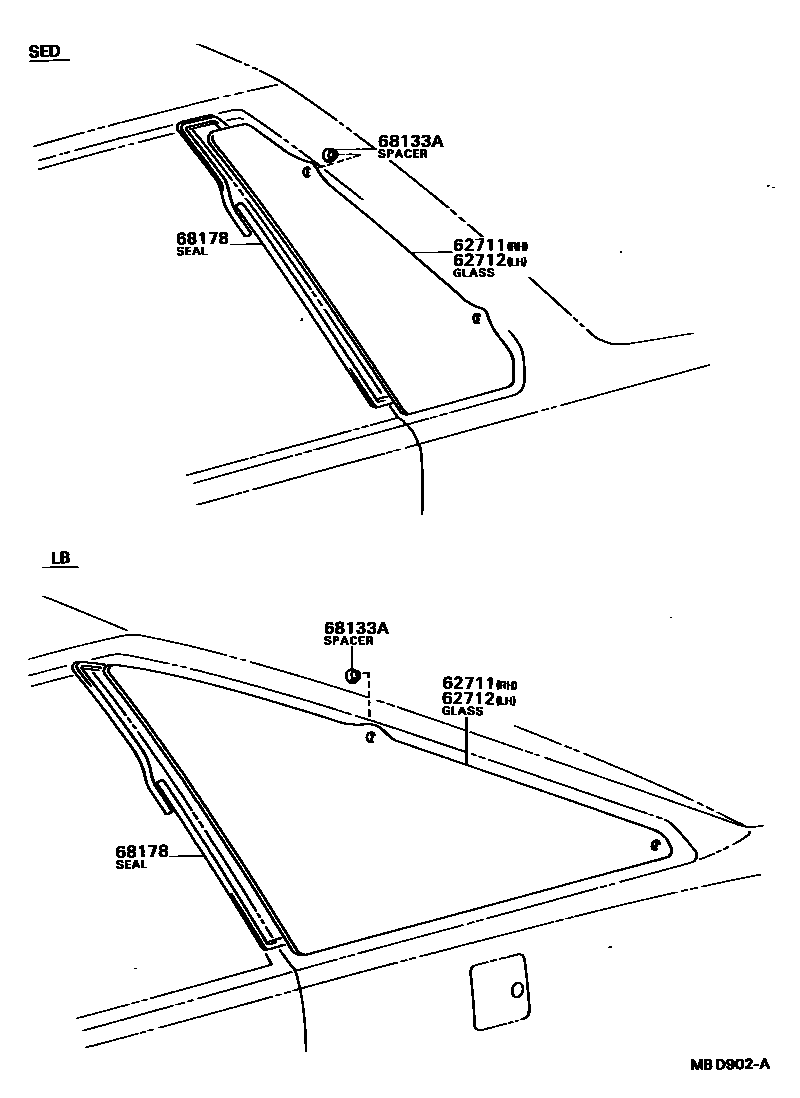

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-32011iCV1#,SV1#..4D198406-198610

*TT,T=3.5

main62711-32061iCV1#,SV1#..(GL,GLI)..4D198406-198610

BRONZE,*TT,T=3.5

main62711-32900iCV10,SV1#..4D198210-198406

*TT,T=3.5

main62711-32905iCV10,SV1#..(GL,GLI)..4D198210-198406

BRONZE,*TT,T=3.5

main62711-32906iCV1#,SV1#..5D198210-198610

*TT,T=3.5

main62711-32909iCV1#,SV1#..(GL,GLI)..5D..EUR198210-198610

BRONZE,*TT,T=3.5

62712GLASS, QUARTER WINDOW, LH

main62712-32011iCV1#,SV1#..4D198406-198610

*TT,T=3.5

main62712-32061iCV1#,SV1#..(GL,GLI)..4D198406-198610

BRONZE,*TT,T=3.5

main62712-32900iCV10,SV1#..4D198210-198406

*TT,T=3.5

main62712-32905iCV10,SV1#..(GL,GLI)..4D198210-198406

BRONZE,*TT,T=3.5

main62712-32906iCV1#,SV1#..5D198210-198610

*TT,T=3.5

main62712-32909iCV1#,SV1#..(GL,GLI)..5D..EUR198210-198610

BRONZE,*TT,T=3.5

68133ASPACER, QUARTER WINDOW NO.2 GLASS

main68137-32010×4iCV1#,SV1#198210-198610

68178SEAL, QUARTER WINDOW NO.2 GLASS

main68177-32010×2iCV10,SV1#..4D198210-198406

main68177-32020×2iCV1#,SV1#..5D198210-198610

4 parts on this diagram · 1 diagram in section
