MAT & CARPET

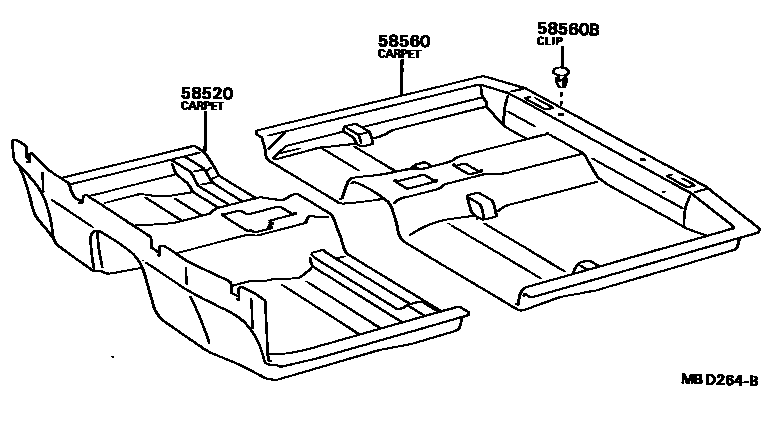

Parts diagram
58520CARPET ASSY, FRONT FLOOR
main58510-32030-03i198210-198406
GRAY,GRAY,TRIM1#
main58510-32030-04i198210-198406
BLUE,BLUE,TRIM8#
main58510-32030-06i198210-198406
BROWN,BROWN,TRIM4#
main58510-32040-03i198210-198406
GRAY,GRAY,TRIM1#
main58510-32040-04i198210-198406
BLUE,BLUE,TRIM8#
main58510-32040-06i198210-198406
BROWN,BROWN,TRIM4#
main58510-32050-03i198210-198406
GRAY,GRAY,TRIM1#
main58510-32050-04i198210-198406
BLUE,BLUE,TRIM8#
main58510-32050-06i198210-198406
BROWN,BROWN,TRIM4#
main58510-32070-03i198406-198511
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58510-32070-04i198406-198511
BLUE,BLUE,TRIM8#
main58510-32070-05i198408-198511
BEIGE,BEIGE,TRIM4#
main58510-32080-03i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58510-32080-04i198406-198610
BLUE,BLUE,TRIM8#
main58510-32080-05i198408-198610
BEIGE,BEIGE,TRIM4#
main58510-32090-03i198406-198511
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58510-32090-04i198406-198511
BLUE,BLUE,TRIM8#
main58510-32090-05i198511-198610
BEIGE,BEIGE,TRIM4#
main58510-32110-03i198511-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58510-32110-04i198511-198610
BLUE,BLUE,TRIM8#
main58510-32110-05i198511-198610
BEIGE,BEIGE,TRIM4#
58560CARPET ASSY, FLOOR, REAR
main58540-32010-03i198210-198406
GRAY,GRAY,TRIM1#
main58540-32010-04i198210-198406
BLUE,BLUE,TRIM8#
main58540-32010-06i198210-198406
BROWN,BROWN,TRIM4#
main58540-32020-03i198210-198309
GRAY,GRAY,TRIM1#
main58540-32020-04i198210-198309
BLUE,BLUE,TRIM8#
main58540-32020-06i198210-198309
BROWN,BROWN,TRIM4#
main58540-32030-03i198210-198406
GRAY,GRAY,TRIM1#
main58540-32030-04i198210-198406
BLUE,BLUE,TRIM8#
main58540-32030-06i198210-198406
BROWN,BROWN,TRIM4#
main58540-32040-03i198309-198406
GRAY,GRAY,TRIM1#
main58540-32040-04i198309-198406
BLUE,BLUE,TRIM8#
main58540-32040-06i198309-198406
BROWN,BROWN,TRIM4#
main58540-32060-03i198406-198511
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58540-32060-04i198406-198511
BLUE,BLUE,TRIM8#
main58540-32060-05i198408-198511
BEIGE,BEIGE,TRIM4#
main58540-32080-03i198511-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58540-32080-04i198511-198610
BLUE,BLUE,TRIM8#
main58540-32080-05i198408-198511
BEIGE,BEIGE,TRIM4#
main58540-32120-03i198511-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main58540-32120-04i198511-198610
BLUE,BLUE,TRIM8#
main58540-32120-05i198511-198610
BEIGE,BEIGE,TRIM4#
58560BCLIP(FOR FLOOR CARPET, REAR)
main90467-07158-13×2i198210-198406
GRAY,GRAY,TRIM1#
main90467-07158-15×2i198408-198610
BEIGE,BEIGE,TRIM4#
main90467-07158-16×2i198210-198406
BROWN,BROWN,TRIM4#
main90467-07158-23×2i198406-198610
SHADOW GRAY,SHADOW GRAY,TRIM1#
main90467-07158-24×2i198210-198610
BLUE,BLUE,TRIM8#

3 parts on this diagram · 2 diagrams in section
