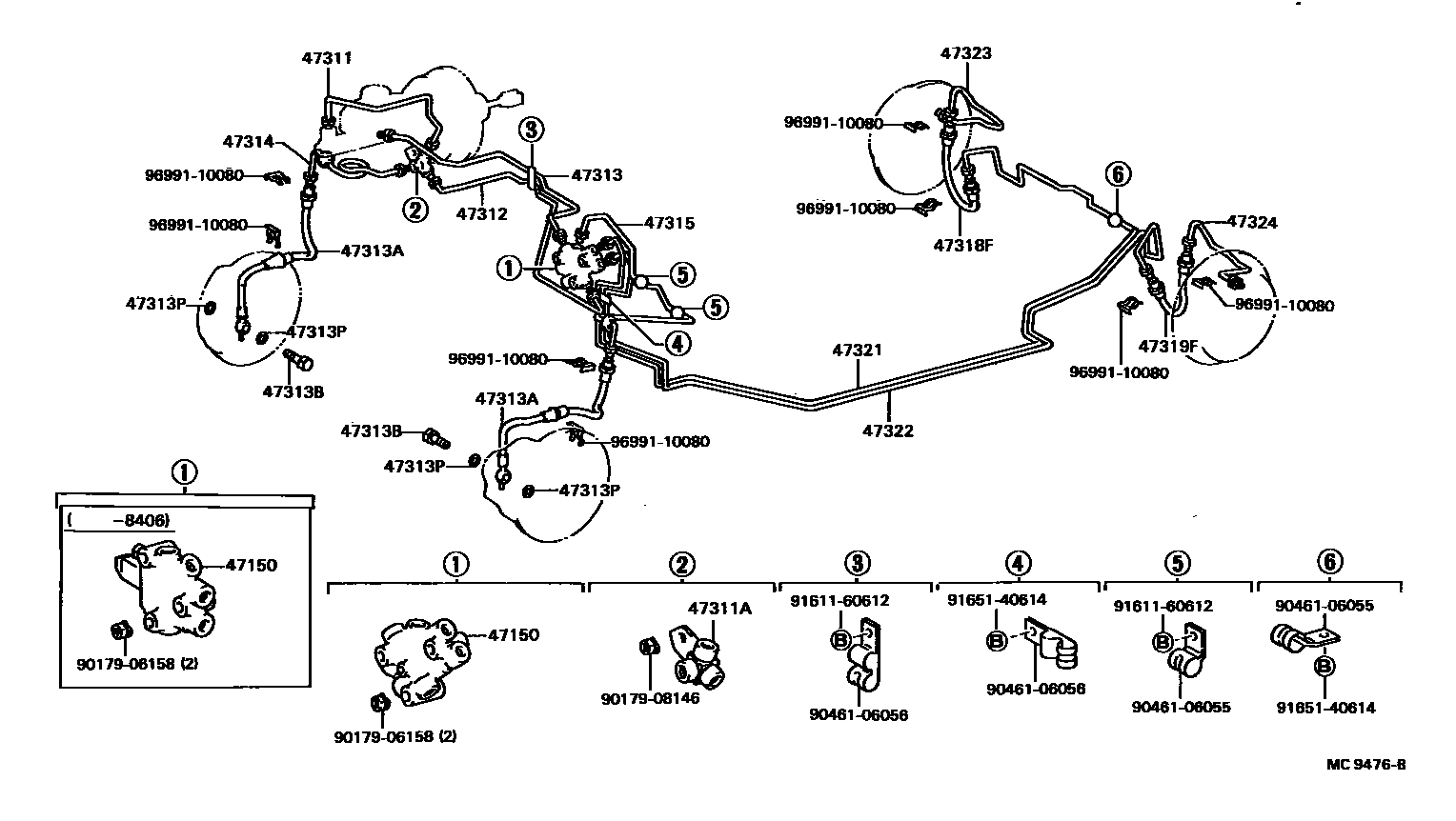

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47150VALVE ASSY, PROPORTIONING

main47150-32010iCV10,SV1#198210-198406

main47150-32030iCV1#,SV1#198406-198610

47311TUBE, FRONT BRAKE, NO.1

main47311-32010iCV10,SV1#..RHD198210-198406

main47311-32020iSV10..LHD198210-198301

main47311-32040iCV10,SV1#..LHD198301-198406

main47311-32050iCV1#,SV1#..LHD198406-198610

main47312-32060iCV1#,SV1#..RHD198406-198610

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10122iCV1#,SV1#..RHD198210-198610

main90413-10148iSV10..LHD198210-198301

main90413-10154iSV1#..LHD198301-198308

main90413-10165iCV1#,SV1#..LHD198308-198610

47312TUBE, FRONT BRAKE, NO.2

main47312-32010iCV10,SV1#..RHD198210-198406

main47312-32020iSV10..LHD198210-198301

main47312-32021iSV1#..LHD198301-198308

main47312-32022iCV10,SV1#..LHD198308-198406

main47312-32031iSV11..4D198303-198308

SWEDEN SPEC

main47312-32032iSV11..4D198308-198310

SWEDEN SPEC

main47312-32040iCV1#,SV1#..RHD198406-198610

main47312-32050iCV1#,SV1#..LHD198406-198610

47313TUBE, FRONT BRAKE, NO.3

main47313-32010iCV10,SV1#..RHD198210-198406

main47313-32020iSV10..LHD198210-198301

main47313-32021iCV10,SV1#..LHD198301-198406

main47313-32031iSV11..4D198303-198310

SWEDEN SPEC

main47313-32040iCV1#,SV1#..RHD198406-198610

main47313-32050iCV1#,SV1#..LHD198406-198610

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02429×2iCV1#,SV1#198210-198610

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iCV1#,SV1#198210-198610

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iCV1#,SV1#198210-198610

47314TUBE, FRONT BRAKE, NO.4

main47314-32010iCV10,SV1#..RHD198210-198406

main47314-32020iSV10..LHD198210-198301

main47314-32021iSV1#..LHD198301-198308

main47314-32022iCV10,SV1#..LHD198308-198406

main47314-32031iSV11..4D198303-198308

SWEDEN SPEC

main47314-32032iSV11..4D198308-198310

SWEDEN SPEC

main47314-32040iCV1#,SV1#..RHD198406-198610

main47314-32050iCV1#,SV1#..LHD198406-198610

47315TUBE, FRONT BRAKE, NO.5

main47315-32010iCV10,SV1#..RHD198210-198406

main47315-32020iCV10,SV1#..LHD198210-198406

main47315-32030iSV11..4D198303-198310

SWEDEN SPEC

main47315-32040iCV1#,SV1#..RHD198406-198610

main47315-32050iCV1#,SV1#..LHD198406-198610

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96950-33455iCV1#,SV1#198210-198610

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96950-33455iCV1#,SV1#198210-198610

47321TUBE, REAR BRAKE, NO.1

main47321-32010iCV10,SV1#198210-198406

main47321-32020iSV11..4D198303-198310

SWEDEN SPEC

main47321-32040iCV1#,SV1#198406-198610

47322TUBE, REAR BRAKE, NO.2

main47322-32010iCV10,SV1#198210-198406

main47322-32020iSV11..SDZ198310-198406

SWEDEN SPEC

main47322-32030iCV1#,SV1#198406-198610

47323TUBE, REAR BRAKE, NO.3

main47323-20040iCV1#,SV1#198303-198610

main47324-32010iSV10198210-198303

47324TUBE, REAR BRAKE, NO.4

main47324-20040iCV1#,SV1#198303-198610

main47325-32010iSV10198210-198303

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046106056

main90461-06056

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

23 parts on this diagram · 3 diagrams in section
