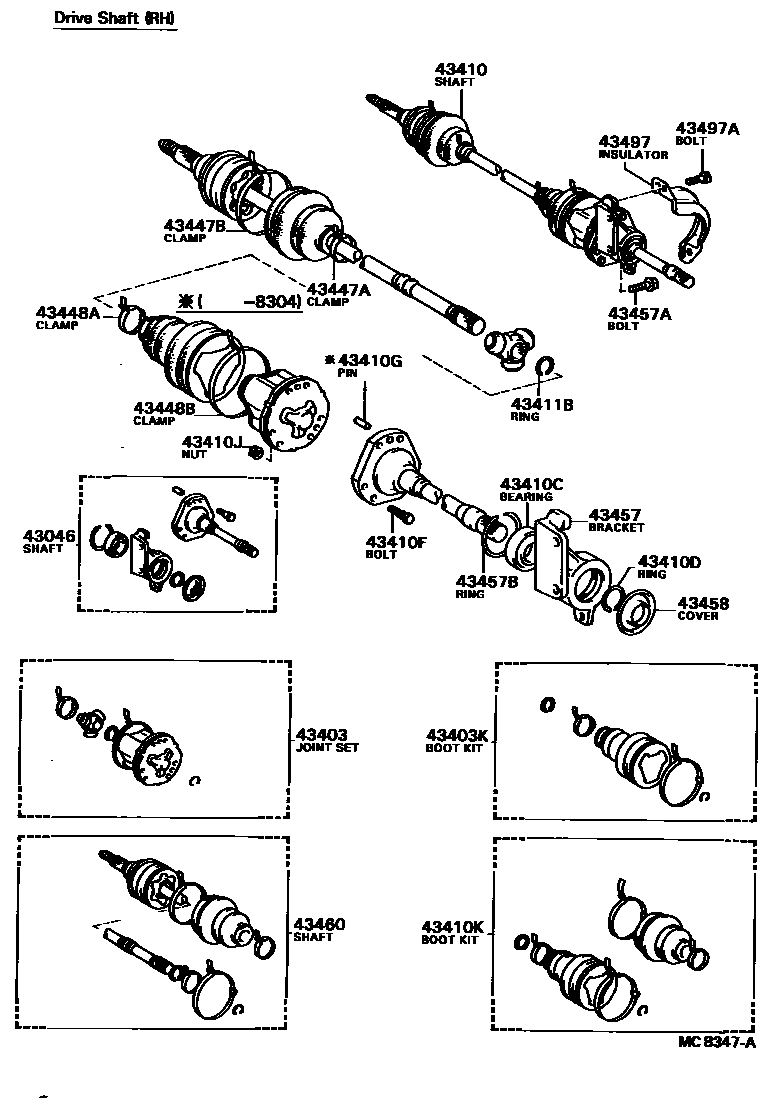

FRONT DRIVE SHAFT
43046SHAFT SUB-ASSY, FRONT DRIVE BEARING
43403JOINT SET, FRONT AXLE INBOARD, RH
43403KBOOT KIT, FRONT AXLE INBOARD JOINT SET
sub04438-12050
43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)
43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)
43410JNUT (FOR FRONT DRIVE SHAFT)
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43458COVER, FRONT DRIVE SHAFT DUST
43497INSULATOR, BEARING BRACKET HEAT
T=0.7
T=1.0
43497ABOLT (FOR BEARING BRACKET HEAT INSULATOR)
22 parts on this diagram · 5 diagrams in section
