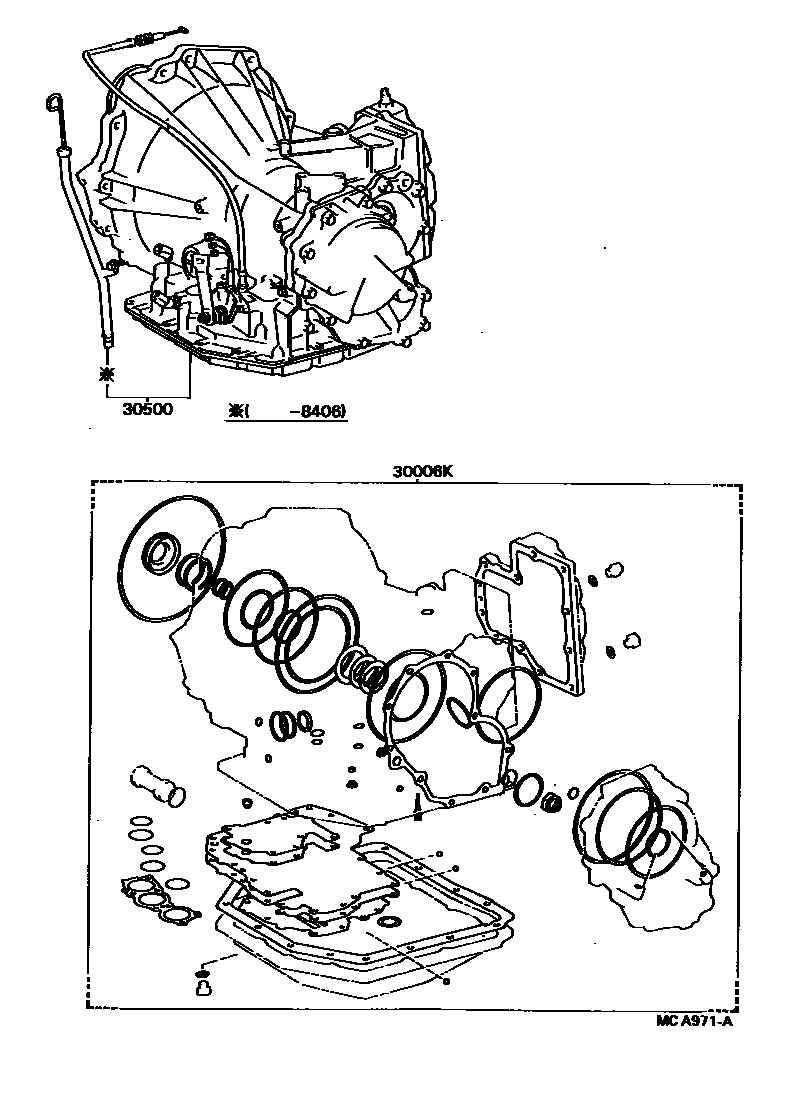

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

30006KGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-32010i198210-198406

main04351-32011i198406-198508

main04351-32030i198508-198610

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32040i198210-198406

main30500-32041i198406-198607

main30500-32042i198607-198610

main30500-32060i198303-198406

main30500-32061i198406-198607

main30500-32062i198607-198610

main30500-32070i198303-198406

main30500-32071i198406-198607

main30500-32072i198607-198610

main30500-32090i198308-198406

main30500-32091i198406-198508

main30500-32140i198508-198607

main30500-32141i198607-198610

2 parts on this diagram · 1 diagram in section
