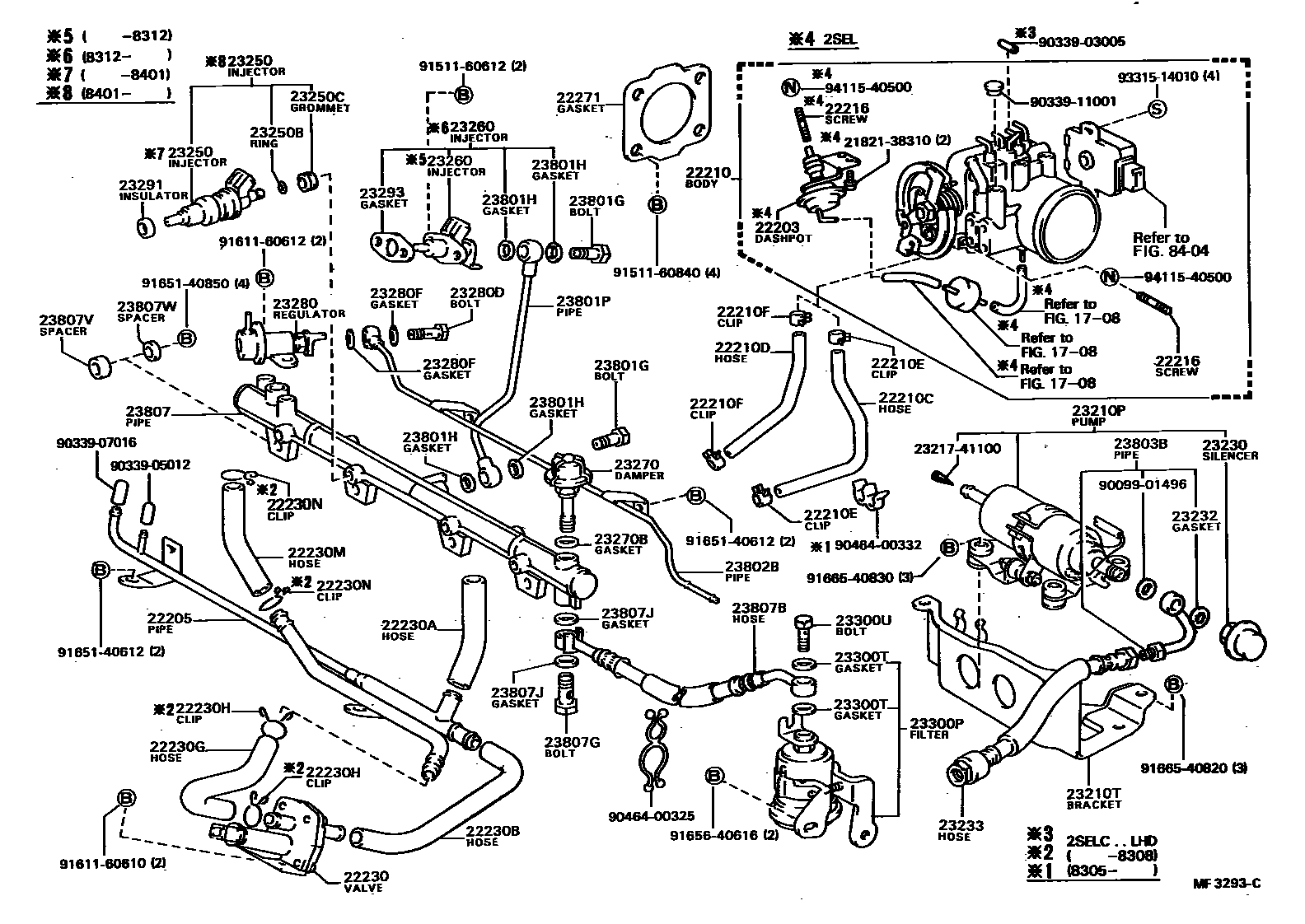

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1708VACUUM PIPING

→ Go to FIG 17-08

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-74012i2SEL..SV11198310-198403

main22202-74013i2SEL..SV11198403-198610

22205PIPE SUB-ASSY, AUXILIARY AIR

main22205-63010i2SELC..SV11..FRG;2SELC..SV11..ARL198508-198610

main22205-74011i2SE#..SV11198303-198508

22210BODY ASSY, THROTTLE

main22210-74011i2SEL..SV11..RHD198310-198610

main22210-74030i2SELC..SV11..SDZ198303-198308

main22210-74031i2SELC..SV11..EUR198308-198610

main22210-74051i2SELC..SV11..ARL198508-198610

main22210-74080i2SELC..SV11..ARL198303-198308

main22210-74081i2SELC..SV11..ARL198308-198508

main22210-74091i2SEL..SV11..LHD198310-198610

22210CHOSE, WATER BY-PASS, NO.1

main16264-74010i2SE#..SV11198303-198610

22210DHOSE, WATER BY-PASS, NO.2

main16267-74010i2SELC..SV11198303-198305

main16267-74011i2SE#..SV11198305-198610

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main90467-13001×2i2SE#..SV11198303-198610

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main90467-13001×2i2SE#..SV11198303-198610

22216SCREW, DASH POT ADJUSTING

main22216-74010×2i2SE#..SV11198303-198610

22230VALVE ASSY, AUXILIARY AIR

main22230-74020i2SE#..SV11198303-198508

main22230-74040i2SELC..SV11..FRG;2SELC..SV11..ARL198508-198610

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main90445-21007i2SE#..SV11198303-198610

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main22234-74011i2SE#..SV11198303-198610

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main22236-74010i2SE#..SV11198303-198610

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-20002×2i2SELC..SV11198303-198308

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-74010i2SE#..SV11198303-198610

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-20002×2i2SELC..SV11198303-198308

22271GASKET, THROTTLE BODY

main22271-74010i2SE#..SV11198303-198610

23210PPUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-74010i2SELC..SV11..ARL198303-198406

main23210-74020i2SE#..SV11..EUR198303-198406

23210TBRACKET, FUEL PUMP

main23265-74010i2SE#..SV11198303-198406

23230SILENCER ASSY

main23230-26080i2SE#..SV11198303-198406

23232GASKET(FOR FUEL PUMP HOSE)

main23232-41081i2SE#..SV11198303-198406

23233HOSE, FUEL PUMP

main23239-16010i2SEL..SV11198406-198506

main23239-63010i2SE#..SV11198506-198610

main90923-01308i2SE#..SV11198303-198406

23250INJECTOR ASSY, FUEL

main23209-45011×4i2SE#..SV11198401-198610

main23250-45011×4i2SE#..SV11198303-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i2SE#..SV11198303-198610

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i2SE#..SV11198303-198610

23260INJECTOR ASSY, COLD START FUEL

main23260-74010i2SE#..SV11198303-198312

main23260-79055i2SE#..SV11198312-198610

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-45010i2SE#..SV11198303-198610

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-17002i2SE#..SV11198303-198610

23280REGULATOR ASSY, FUEL PRESSURE

main23280-74010i2SE#..SV11198303-198610

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-08003i2SE#..SV11198303-198509

main90401-08004i2SE#..SV11198509-198610

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-08005×2i2SE#..SV11198303-198509

main90430-08009×2i2SE#..SV11198509-198610

23291INSULATOR, INJECTOR VIBRATION

main23291-74010×4i2SE#..SV11198303-198610

23293GASKET, COLD START INJECTOR

main23293-74010i2SE#..SV11198303-198610

23300PFILTER, FUEL(FOR EFI)

main23030-79015i2SELC..SV11..ARL198303-198501

main23030-79025i2SE#..SV11..EUR198303-198610

23300TGASKET(FOR FUEL FILTER)

main90430-12005×2i2SE#..SV11198303-198610

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i2SE#..SV11198303-198610

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003×2i2SE#..SV11198303-198509

main90401-08004×2i2SE#..SV11198509-198610

23801HGASKET(FOR FUEL PIPE)

main90430-08005×4i2SE#..SV11198303-198509

main90430-08009×4i2SE#..SV11198509-198610

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-74010i2SE#..SV11198303-198610

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-74010i2SE#..SV11198303-198610

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-79015i2SELC..SV11..ARL198303-198406

main23803-79025i2SE#..SV11..EUR198303-198406

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-74010i2SE#..SV11198303-198610

23807BHOSE, FUEL DELIVERY PIPE

main23271-74010i2SELC..SV11..ARL198303-198508

main23271-74020i2SE#..SV11..EUR198303-198508

23807GBOLT, UNION PIPE FUEL DELIVARY INLET

main90401-14091i2SE#..SV11198303-198610

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-14002×2i2SE#..SV11198303-198610

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11006×4i2SE#..SV11198303-198610

23807WSPACER, NO.2(FOR DELIVERY PIPE)

main90560-08024×4i2SE#..SV11198303-198610

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

2321741100FILTER, FUEL PUMP

main23217-41100

9009901496

main90099-01496

9033903005

main90339-03005

9033905012

main90339-05012

9033907016

main90339-07016

9033911001

main90339-11001

9046400325

main90464-00325

9046400332

main90464-00332

9151160612

main91511-60612

9151160840

main91511-60840

9161160610

main91611-60610

9161160612

main91611-60612

9165140612

main91651-40612

9165140850

main91651-40850

9165640616

main91656-40616

9166540820

main91665-40820

9166540830

main91665-40830

9331514010

main93315-14010

9411540500

main94115-40500

68 parts on this diagram · 3 diagrams in section
