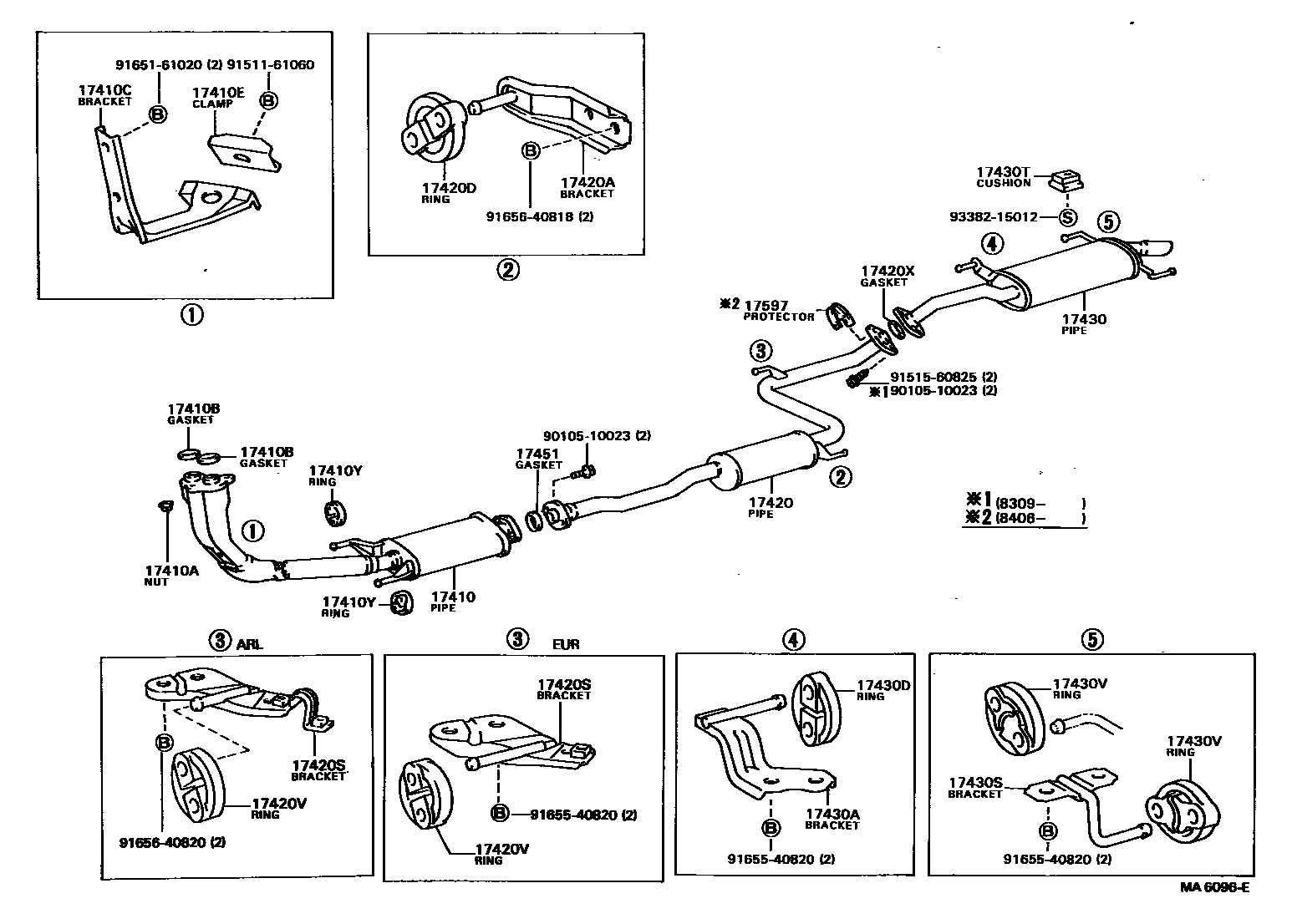

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
NO.1
NO.2
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
17420PIPE ASSY, EXHAUST, CENTER
17420ABRACKET, EXHAUST PIPE CENTER, FRONT
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420SBRACKET, EXHAUST PIPE CENTER, REAR
17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
RR
FR
17597PROTECTOR, EXHAUST PIPE SPLASH
9010510023
main90105-10023
9151161060
main91511-61060
9151560825
main91515-60825
9165161020
main91651-61020
9165540820
main91655-40820
9165640818
main91656-40818
9165640820
main91656-40820
9338215012
main93382-15012
28 parts on this diagram · 6 diagrams in section
