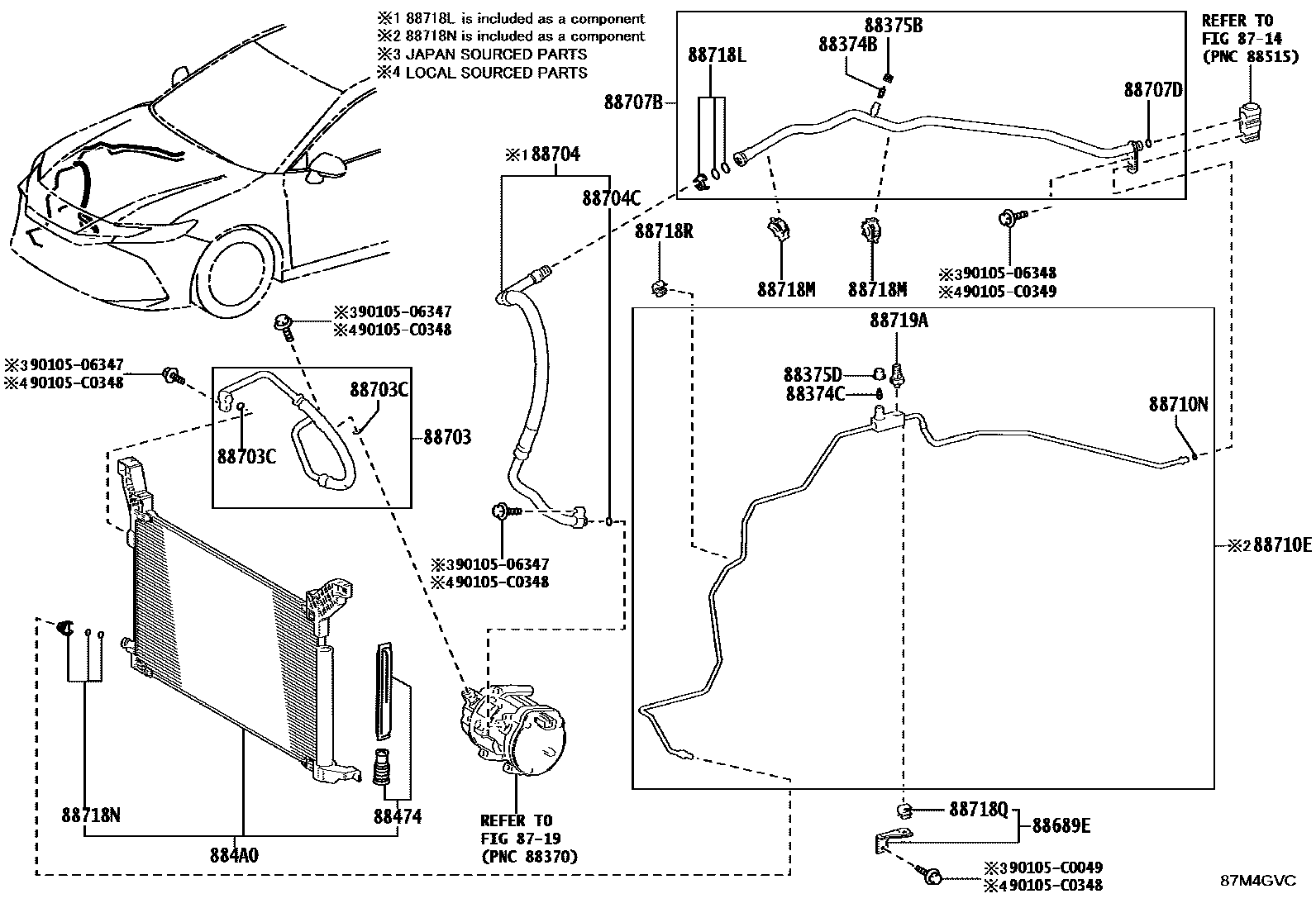

HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
88689EBRACKET, COOLER, NO.1
88703HOSE SUB-ASSY, DISCHARGE
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704CHOSE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88718LCLAMP, PIPING
88718NCLAMP, PIPING
88718RCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
9010506347
main90105-06347
9010506348
main90105-06348
90105C0049
main90105-C0049
90105C0348
main90105-C0348
90105C0349
main90105-C0349
28 parts on this diagram · 3 diagrams in section
