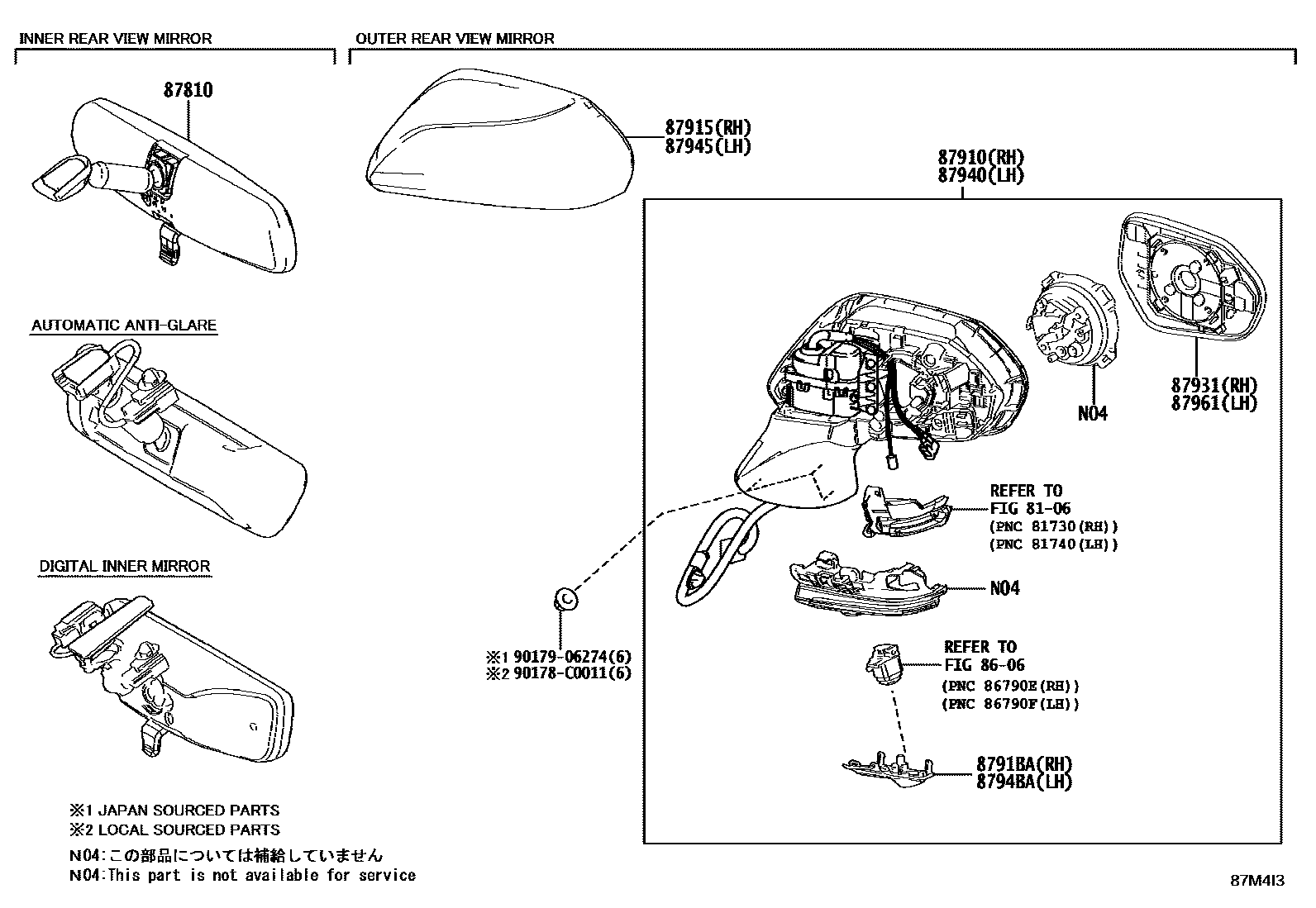

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-06240iMXVA80,MXVH80202403

main87810-06260iAXVH80202406

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-06E30iMXVA80,MXVH80..E202403

NO PAINT REQ.,G VALUE PACKAGE

main87910-06E30iAXVH80,MXVA80,MXVH80..G202403

NO PAINT REQ.

main87910-06E40iMXVA80..G,S202403-202508

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-06916iAXVH80,MXVA80,MXVH80202403

PAINT REQ.

8791BACOVER, OUTER MIRROR, RH NO.3

87931OUTER MIRROR, RH

main87902-06040iAXVH80,MXVA80,MXVH80..G202403

G VALUE PACKAGE

main87902-06070iAXVH80,MXVA80,MXVH80..G,S202403

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-06E00iAXVH80,MXVA80,MXVH80..G202403

NO PAINT REQ.,G VALUE PACKAGE

main87940-06E00iMXVA80,MXVH80..E202403

NO PAINT REQ.

main87940-06E10iAXVH80,MXVH80..G,S202403-202508

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-06916iAXVH80,MXVA80,MXVH80202403

PAINT REQ.

8794BACOVER, OUTER MIRROR, LH NO.3

87961MIRROR OUTER, LH

main87907-06150iMXVA80,MXVH80..E202403

G VALUE PACKAGE

main87907-06220iAXVH80,MXVA80,MXVH80..G,S202403

90178C0011

main90178-C0011

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
