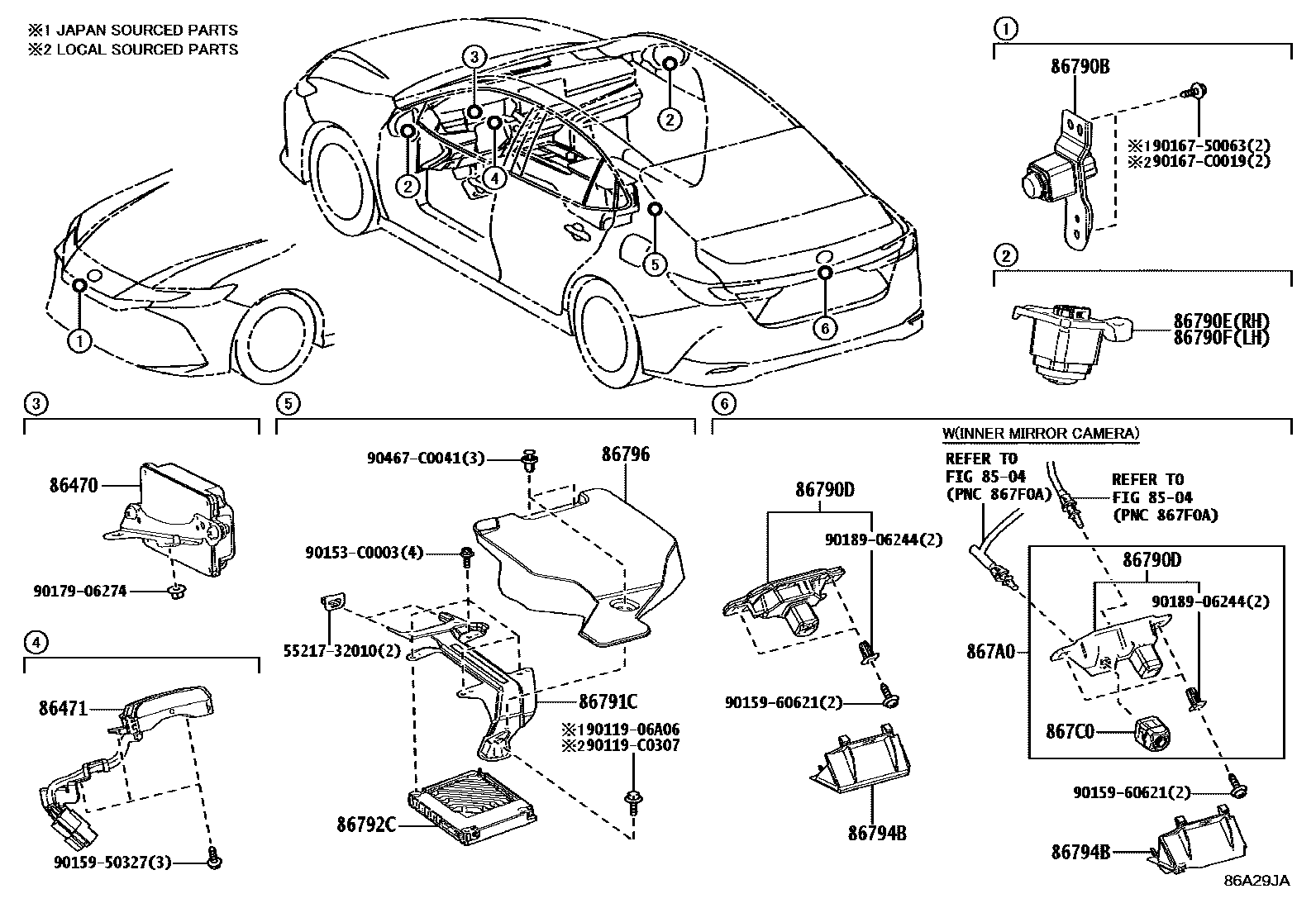

CAMERA & REAR MONITOR DISPLAY
8504
86470COMPUTER ASSY, DRIVER MONITOR
ADVANCED SAFETY PACKAGE
86471CAMERA, DRIVER MONITOR
ADVANCED SAFETY PACKAGE
86790BCAMERA ASSY, TELEVISION, FR
ADVANCED SAFETY PACKAGE
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86790DCAMERA ASSY, TELEVISION, RR
ADVANCED SAFETY PACKAGE
Q UP GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
Q UP GRADE PACKAGE
Q UP GRADE PACKAGE&PARKING SUPPORT BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
86790ECAMERA ASSY, TELEVISION, SIDE RH
ADVANCED SAFETY PACKAGE
86790FCAMERA ASSY, TELEVISION, SIDE LH
ADVANCED SAFETY PACKAGE
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
ADVANCED SAFETY PACKAGE
86792CCOMPUTER, PARKING ASSIST
ADVANCED SAFETY PACKAGE
Q UP GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
86794BCOVER, TELEVISION CAMERA
Q UP GRADE PACKAGE&PARKING SUPPORT BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
86796COVER, COMPUTER PARKING ASSIST
Q UP GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
Q UP GRADE PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(*PVM)
Q UP GRADE PACKAGE
867C0CAMERA ASSY, INNER MIRROR
Q UP GRADE PACKAGE&PARKING SUPPORT BRAKE-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9011906A06
main90119-06A06
90119C0307
main90119-C0307
90153C0003
main90153-C0003
9015950327
main90159-50327
9015960621
main90159-60621
9016750063
main90167-50063
90167C0019
main90167-C0019
9017906274
main90179-06274
9018906244
main90189-06244
90467C0041
main90467-C0041
24 parts on this diagram · 1 diagram in section
