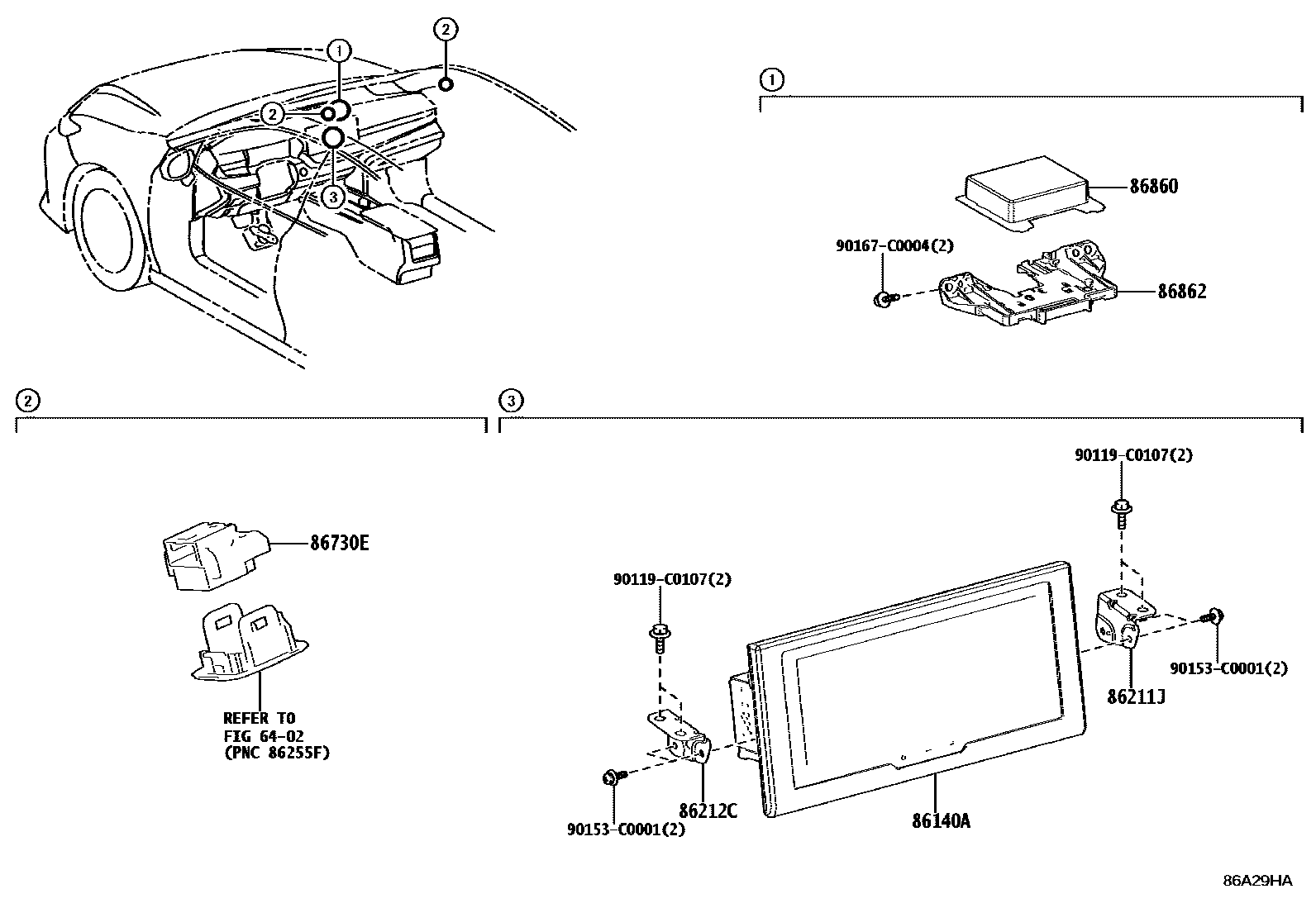

NAVIGATION & FRONT MONITOR DISPLAY

6402

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-06540iMXVA80..G,S202403

DESAY

main86140-06C60iMXVA80,MXVH80..E202403

HANGSHENG

main86100-06430iAXVH80..G202406

DESAY,Q UP GRADE PACKAGE

main86100-06550supersedes 86100-06540iAXVH80,MXVH80..G,S202403-202508

DESAY,INTERIOR PACKAGE

main86100-06560iAXVH80..G202406-202508

DESAY,ADVANCED SAFETY PACKAGE&PERIPHERAL MONITOR CAMERA-WITH(*PVM)

main86100-06570iAXVH80..S;MXVH80..G,S202403-202508

DESAY,INTERIOR PACKAGE&ADVANCED SAFETY PACKAGE

main86140-06D10iAXVH80,MXVA80,MXVH80..G202403

HANGSHENG,G VALUE PACKAGE

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-06410iAXVH80,MXVA80,MXVH80202403

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-06410iAXVH80,MXVA80,MXVH80202403

86730EMICROPHONE ASSY

main86730-0A020iAXVH80,MXVA80,MXVH80202403

86860ANTENNA ASSY, NAVIGATION

main86880-02100iAXVH80,MXVA80,MXVH80202403

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAXVH80,MXVA80,MXVH80202403

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90167C0004

main90167-C0004

10 parts on this diagram · 1 diagram in section
