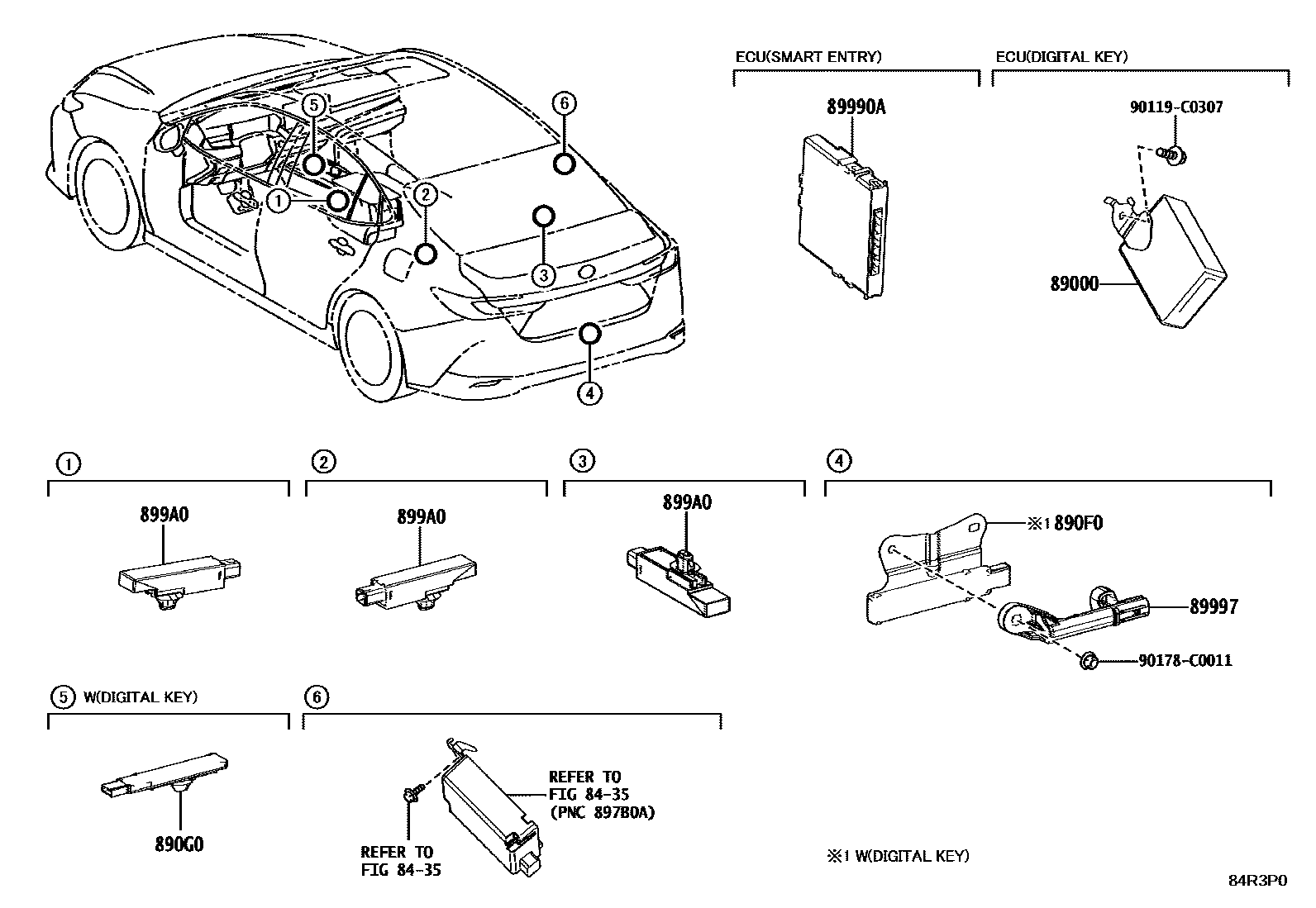

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89000COMPUTER ASSY, DIGITAL KEY

main89000-06010iAXVH80..G202406-202508

Q UP GRADE PACKAGE

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890E0-06010iAXVH80,MXVH80..G,S; AXVH80..G202406-202508

ADVANCED SAFETY PACKAGE; Q UP GRADE PACKAGE

main890F0-0E031iMXVH80..G,S202403-202405

ADVANCED SAFETY PACKAGE

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890E0-02030iAXVH80..G202406-202508

Q UP GRADE PACKAGE

89990ACOMPUTER ASSY, SMART KEY

main899H0-06040iMXVA80..G,S202403-202507

main899H0-06110iMXVA80..E202403-202507

main899H0-06120iMXVH80..E202403-202507

main899H0-06100iAXVH80..G202406-202507

Q UP GRADE PACKAGE

89997ANTENNA, ELECTRICAL KEY

main89997-0E061iAXVH80,MXVA80,MXVH80202403

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02330×3iMXVA80,MXVH80202403-202406

main899A0-02450×3iAXVH80,MXVA80,MXVH80202407

90119C0307

main90119-C0307

90178C0011

main90178-C0011

9 parts on this diagram · 1 diagram in section
