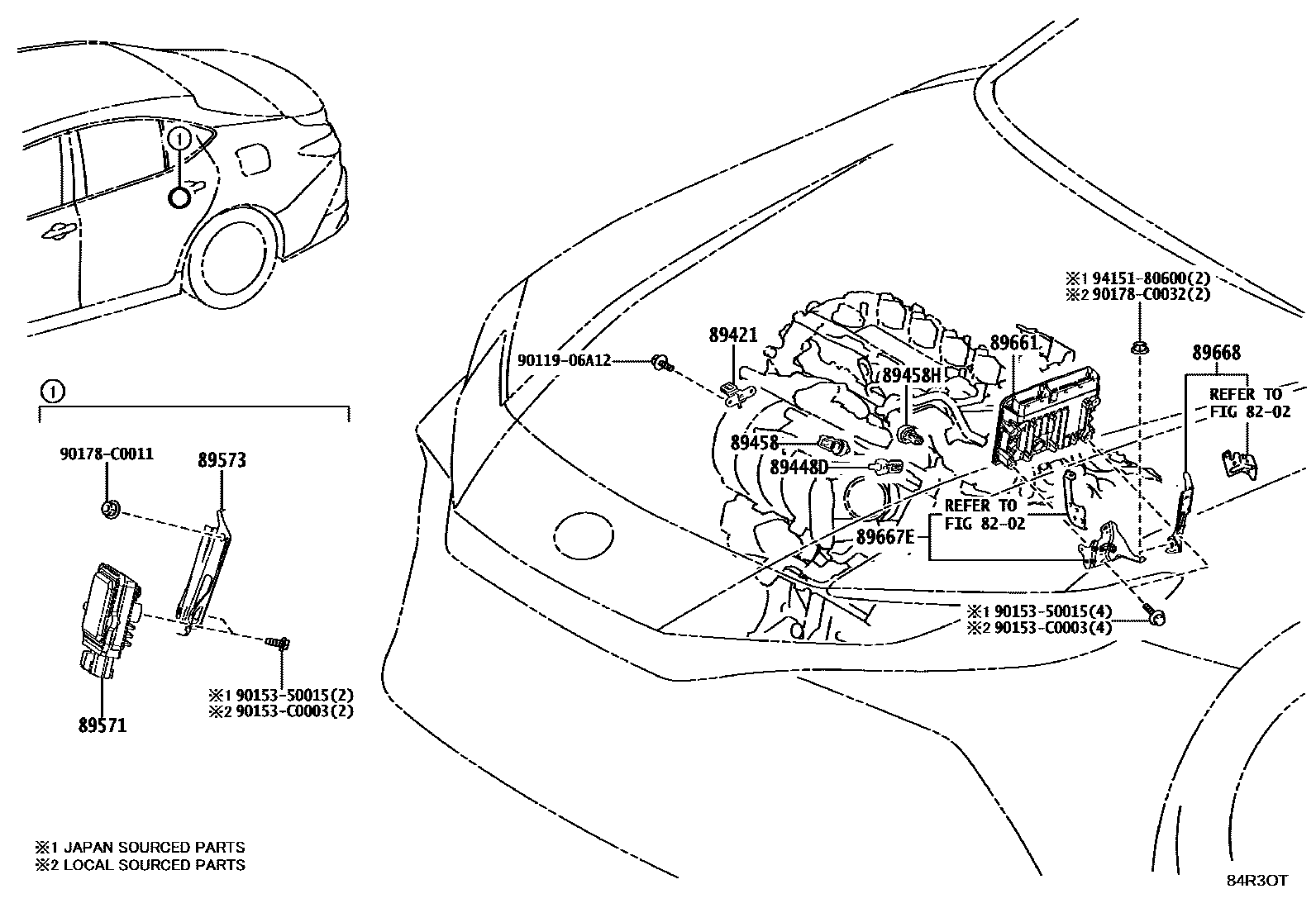

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8202

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAXVH80,MXVA80,MXVH80202403

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iAXVH80,MXVA80,MXVH80202403

(L)

main89448-33010iAXVH80,MXVA80,MXVH80202403

(J)

89458SENSOR, FUEL PRESSURE

main89458-0R010iAXVH80,MXVA80,MXVH80202403

(L)

main89458-33030iAXVH80,MXVA80,MXVH80202403

(J)

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iAXVH80,MXVA80,MXVH80202403

(L)

main89458-33042iAXVH80,MXVA80,MXVH80202403

(J)

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iAXVH80,MXVH80202403

main89571-42010iMXVA80202403

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-06060iAXVH80,MXVA80,MXVH80202403

89661COMPUTER, ENGINE CONTROL

main89661-0XC30iMXVA80202403

DENSO

main89661-0XC40iAXVH80202406

DENSO

main89661-0XC50iMXVH80202403

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06290iMXVA80202403

main89667-06380iAXVH80,MXVH80202403

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06290iMXVA80202403

main89668-06380iAXVH80,MXVH80202403

9011906A12

main90119-06A12

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
