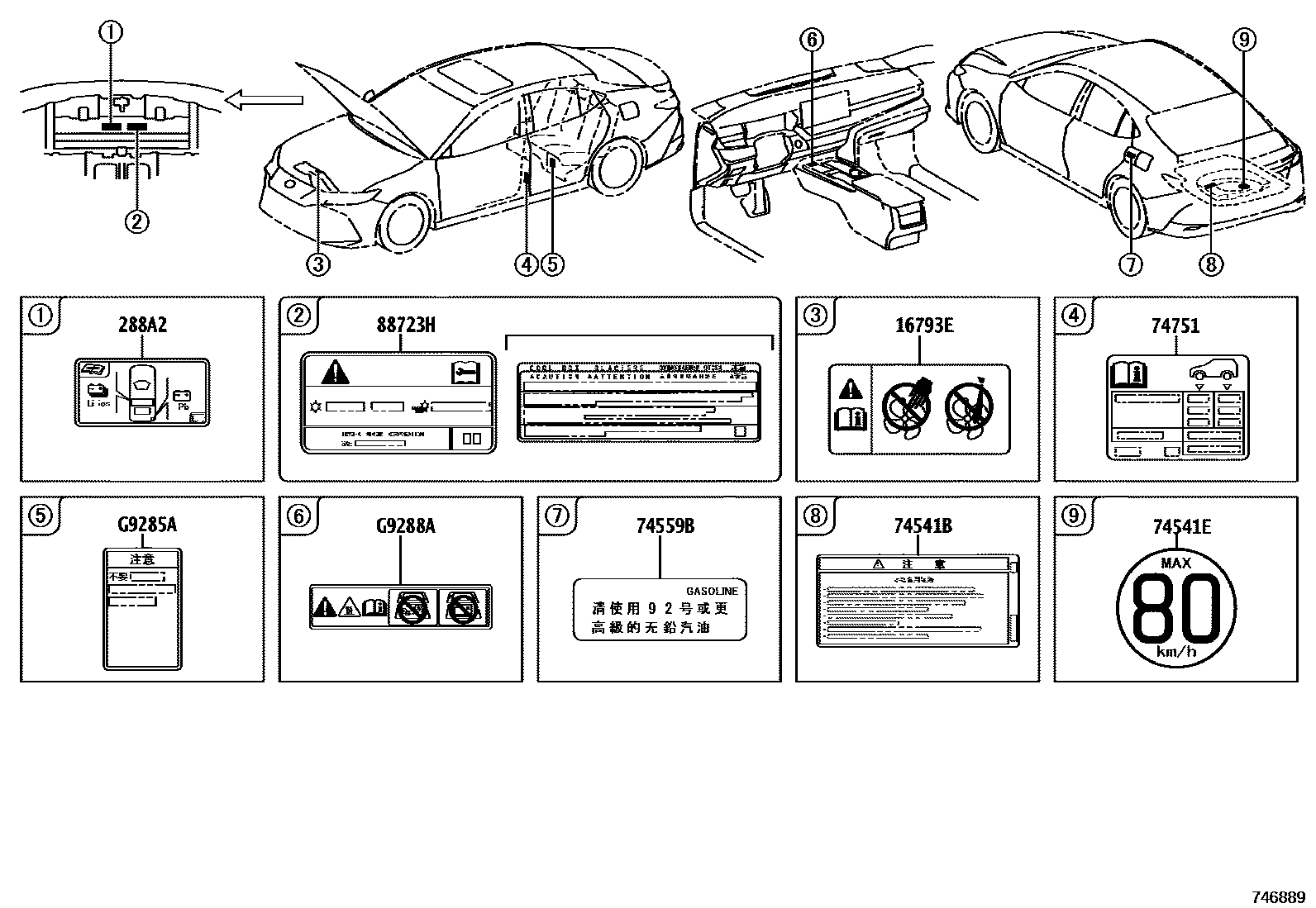

CAUTION PLATE (EXTERIOR & INTERIOR)

16793ELABEL, COOLING FAN CAUTION

main16793-36030iA25,M20..AXVH80,MXVA80,MXVH80202403

288A2LABEL, BATTERY LOCATION

main288A2-F2050iA25,M20..AXVH80,MXVH80202403

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-06060iAXVH80,MXVA80,MXVH80202403

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-20020iAXVH80,MXVA80,MXVH80202403

74559BLABEL, FUEL INFORMATION

main74579-0D010iAXVH80,MXVA80,MXVH80202403

(L)

main74579-26011iAXVH80,MXVA80,MXVH80202403

(J)

74751LABEL, TIRE PRESSURE INFORMATION

main42661-06D90iAXVH80,MXVA80,MXVH80..S202403

main42661-06E10supersedes 42661-06E20iMXVH80..E;MXVA80..E,G202403

88723HLABEL, COOLER SERVICE CAUTION

main88723-06290iAXVH80,MXVH80202403

main88723-06300iMXVA80202403

G9285ALABEL, HV BATTERY CAUTION, NO.1

mainG928L02010iAXVH80,MXVH80202403

G9288ALABEL, BATTERY CARGING NOTICE

main861C8-06020iAXVH80,MXVA80,MXVH80..G,S202403

9 parts on this diagram · 1 diagram in section
