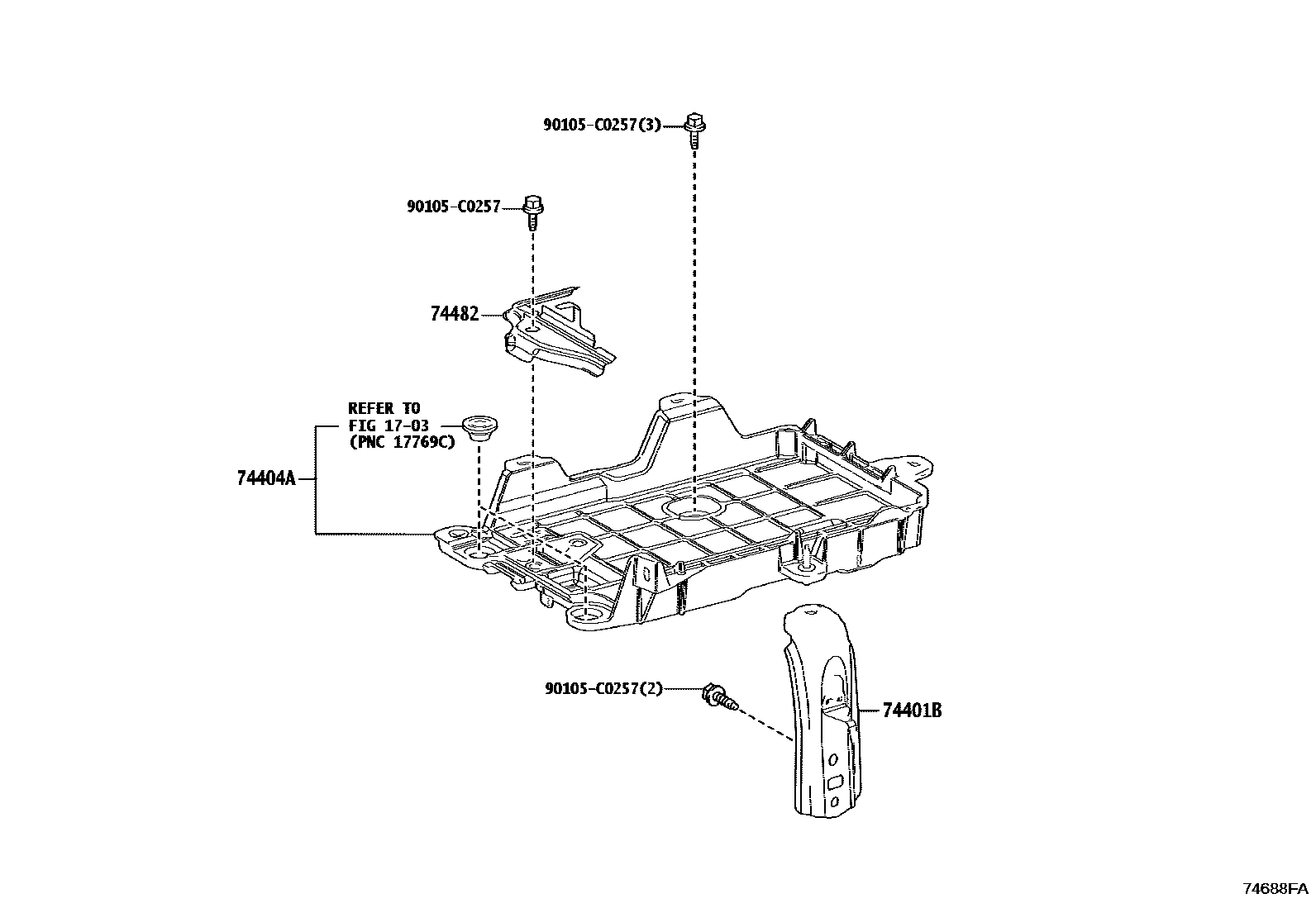

BATTERY CARRIER

0001 1 0002 1

1703AIR CLEANER

→ Go to FIG 17-03

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-06040iMXVA80202403

74404ACLAMP SUB-ASSY, BATTERY

main74404-06210iMXVA80202403

74482CLAMP, BATTERY, NO.2

main74482-06070iMXVA80202403

90105C0257

main90105-C0257

5 parts on this diagram · 2 diagrams in section
