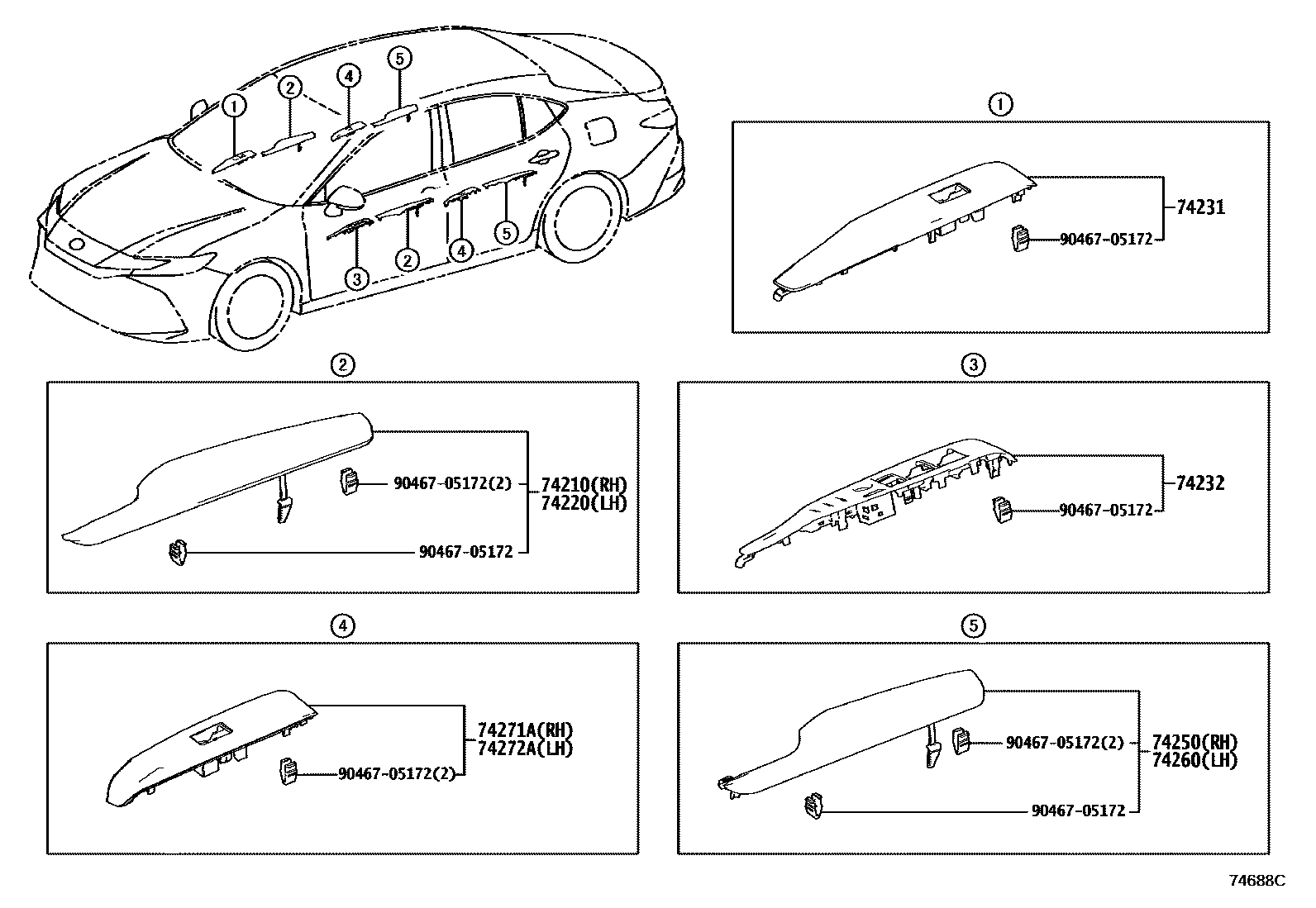

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-06360-A0iAXVH80..G202406

WHITE,TRIM0#

main74210-06360-C1iAXVH80,MXVA80,MXVH80202403

BLACK,TRIM2#

main74210-06360-D0iAXVH80,MXVA80,MXVH80..S202403

SENSUAL RED,TRIM3#

main74210-06360-E0iAXVH80,MXVA80,MXVH80..G202403

SAND BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74220-06360-A0iAXVH80..G202406

WHITE,TRIM0#

main74220-06360-C1iAXVH80,MXVA80,MXVH80202403

BLACK,TRIM2#

main74220-06360-D0iAXVH80,MXVA80,MXVH80..S202403

SENSUAL RED,TRIM3#

main74220-06360-E0iAXVH80,MXVA80,MXVH80..G202403

SAND BROWN,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-06690iAXVH80,MXVA80,MXVH80202403

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-06740iAXVH80,MXVA80,MXVH80202403

74250ARMREST ASSY, REAR RH

main74250-06330-A0iAXVH80..G202406

WHITE,TRIM0#

main74250-06330-C1iAXVH80,MXVA80,MXVH80202403

BLACK,TRIM2#

main74250-06330-D0iAXVH80,MXVA80,MXVH80..S202403

SENSUAL RED,TRIM3#

main74250-06330-E0iAXVH80,MXVA80,MXVH80..G202403

SAND BROWN,TRIM4#

74260ARMREST ASSY, REAR LH

main74260-06330-A0iAXVH80..G202406

WHITE,TRIM0#

main74260-06330-C1iAXVH80,MXVA80,MXVH80202403

BLACK,TRIM2#

main74260-06330-D0iAXVH80,MXVA80,MXVH80..S202403

SENSUAL RED,TRIM3#

main74260-06330-E0iAXVH80,MXVA80,MXVH80..G202403

SAND BROWN,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-06550iAXVH80,MXVA80,MXVH80202403

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-06560iAXVH80,MXVA80,MXVH80202403

9046705172

main90467-05172

9 parts on this diagram · 2 diagrams in section
