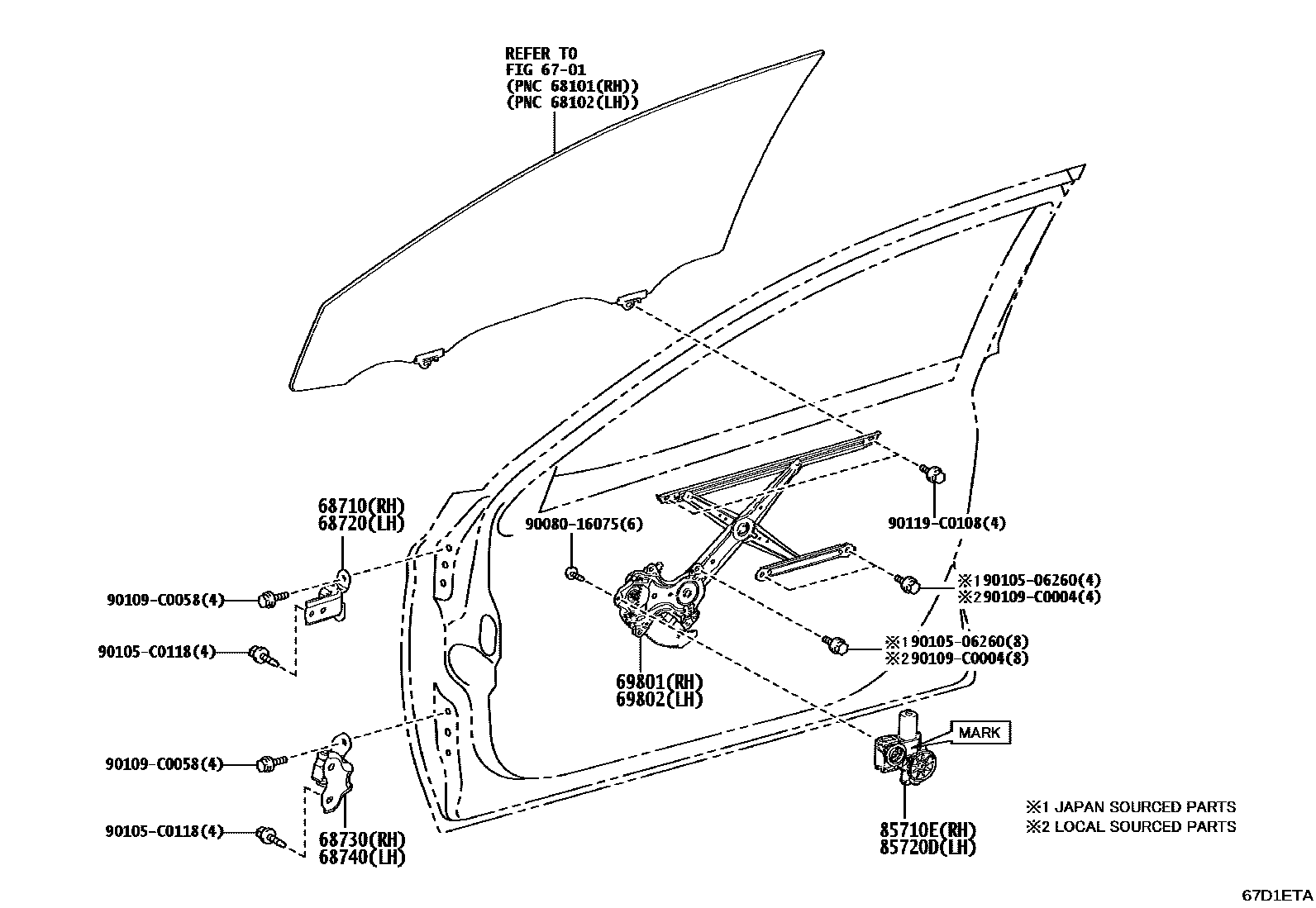

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iAXVH80,MXVA80,MXVH80202403

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iAXVH80,MXVA80,MXVH80202403

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iAXVH80,MXVA80,MXVH80202403

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iAXVH80,MXVA80,MXVH80202403

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06230iAXVH80,MXVA80,MXVH80202403

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06230iAXVH80,MXVA80,MXVH80202403

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0A121iAXVH80,MXVA80,MXVH80202403

MARK=85710-0A121

main85710-33340iAXVH80,MXVA80,MXVH80202403

MARK=85710-33340

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0A111iAXVH80,MXVA80,MXVH80202403

MARK=85720-0A111

main85720-33370iAXVH80,MXVA80,MXVH80202403

MARK=85720-33370

9008016075

main90080-16075

9010506260

main90105-06260

90105C0118

main90105-C0118

90109C0004

main90109-C0004

90109C0058

main90109-C0058

90119C0108

main90119-C0108

15 parts on this diagram · 1 diagram in section
