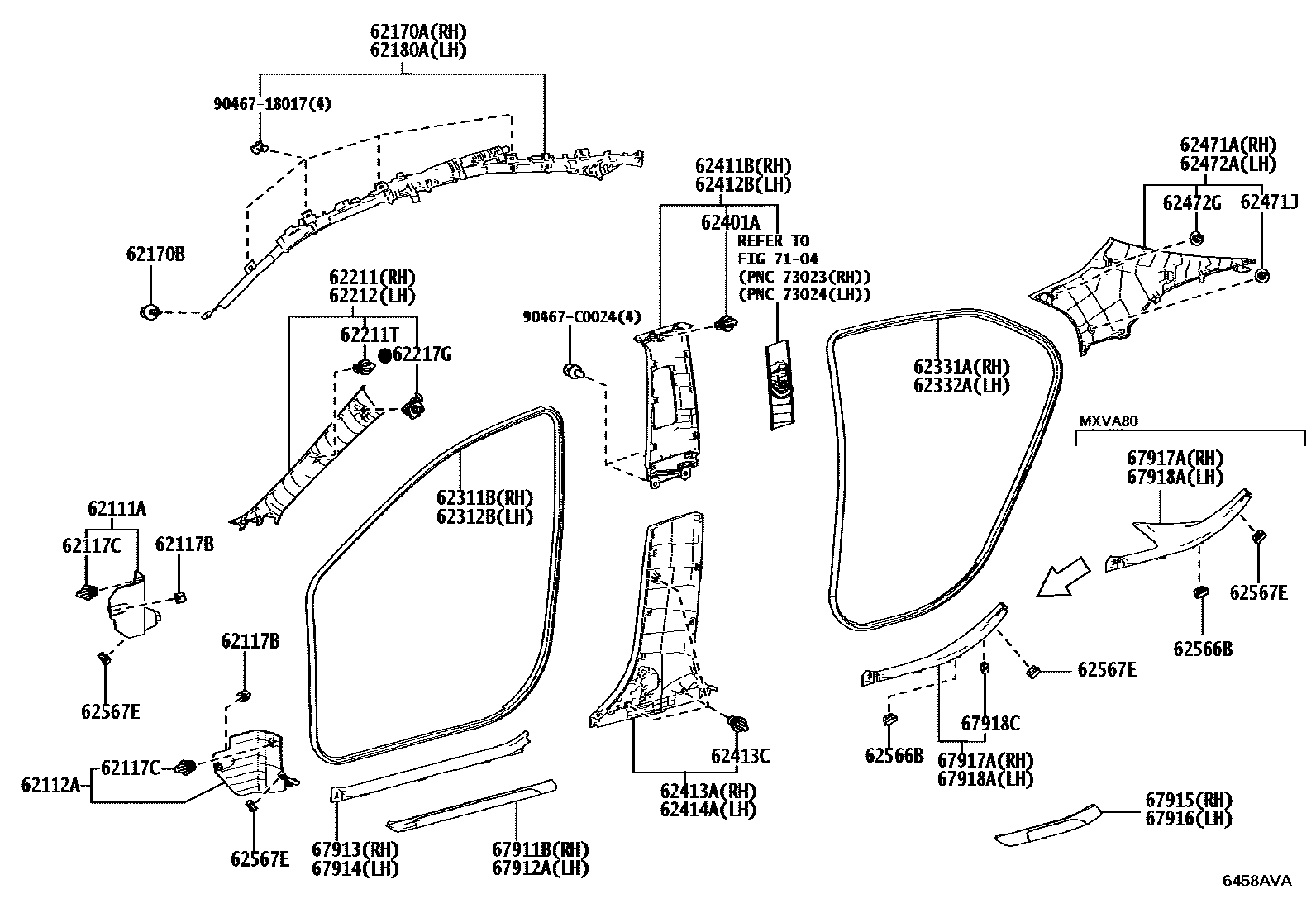

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
(L)
(J)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
FROMAGE,TRIM2#
BLACK,TRIM2#,3#
Q UP GRADE PACKAGE,FROMAGE,TRIM0#,2#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
FROMAGE,TRIM2#
BLACK,TRIM2#,3#
Q UP GRADE PACKAGE,FROMAGE,TRIM0#,2#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
FROMAGE,TRIM0#,2#,4#
BLACK,TRIM2#,3#
62412BGARNISH, CENTER PILLAR, UPPER LH
FROMAGE,TRIM2#
BLACK,TRIM2#,3#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
62471AGARNISH, ROOF SIDE, INNER RH
FROMAGE,TRIM2#
BLACK,TRIM2#,3#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
FROMAGE,TRIM2#
BLACK,TRIM2#,3#
62472GCLIP (FOR ROOF SIDE GARNISH)
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
BLACK,TRIM2#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
9046718017
main90467-18017
90467C0024
main90467-C0024
39 parts on this diagram · 1 diagram in section
