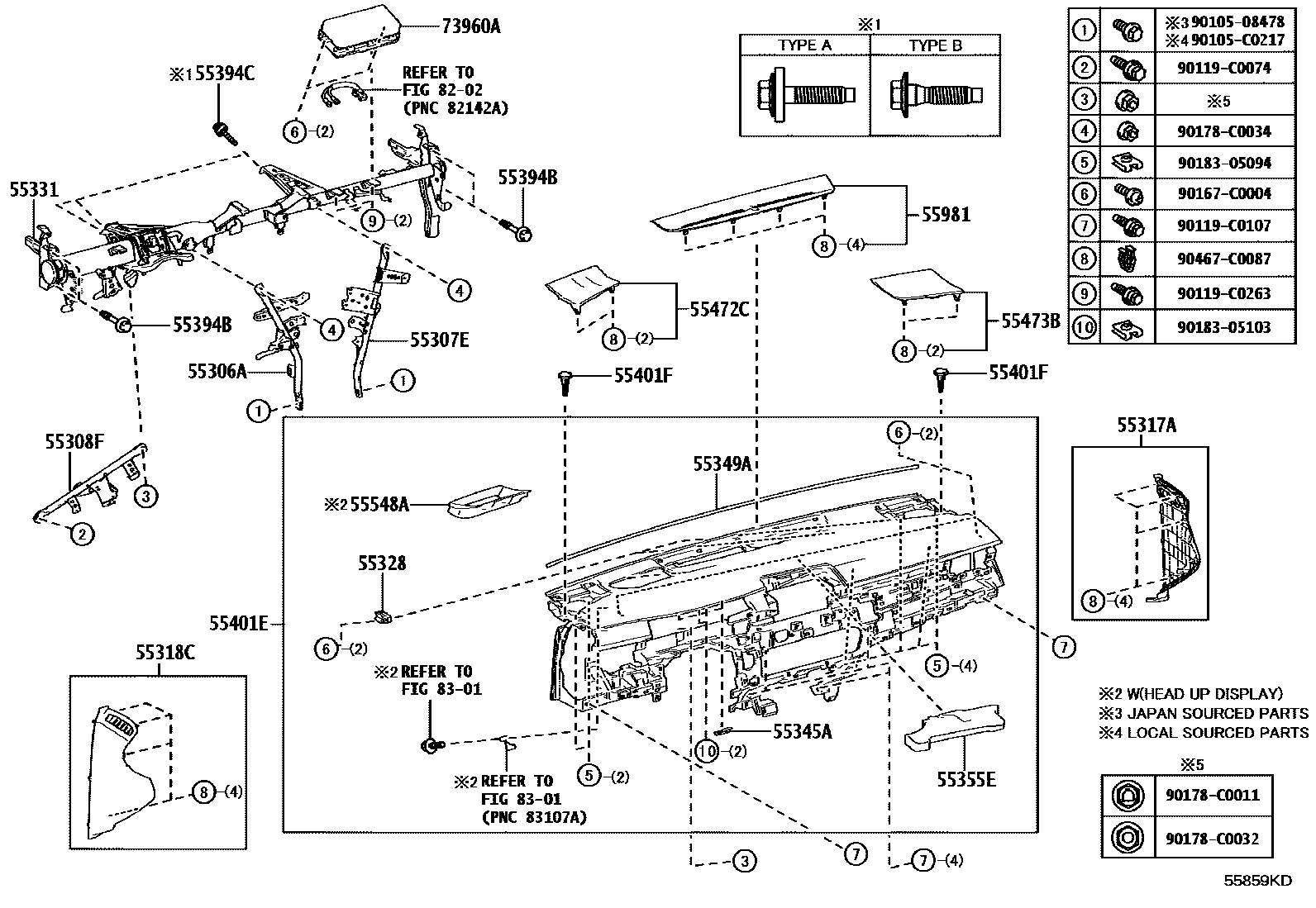

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-06290iAXVH80,MXVA80,MXVH80202403

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06280iAXVH80,MXVA80,MXVH80202403

55308FBRACE SUB-ASSY, INSTRUMENT PANEL, NO.3

main55308-06150iAXVH80,MXVA80,MXVH80202403

55317APANEL, INSTRUMENT SIDE, RH

main55317-06520-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06440-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100×4iAXVH80,MXVA80,MXVH80202403

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06590iMXVA80;MXVH80..E202403

main55330-06620supersedes 55330-06590iAXVH80..G202406-202508

Q UP GRADE PACKAGE

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iAXVH80,MXVA80,MXVH80202403

55349ACUSHION, INSTRUMENT PANEL

main55349-06230iAXVH80,MXVA80,MXVH80202403

55355ECUSHION, INSTRUMENT PANEL

main55355-06330iAXVH80,MXVA80,MXVH80202403

55394BBOLT, INSTRUMENT PANEL

main90105-08473×4iAXVH80,MXVA80,MXVH80202403

(J)

main90105-C0318×4iAXVH80,MXVA80,MXVH80202403

(L)

55394CBOLT, INSTRUMENT PANEL

main90105-08526×3iAXVH80,MXVA80,MXVH80202403

(J),TYPE B:REF ILL.

main90105-C0407×3iAXVH80,MXVA80,MXVH80202403

(L),TYPE B:REF ILL.

main90119-08D16×3iAXVH80,MXVA80,MXVH80202403

(J),TYPE A:REF ILL.

main90119-C0223×3iAXVH80,MXVA80,MXVH80202403

(L),TYPE A:REF ILL.

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-06230-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

main55401-06510-C0iAXVH80,MXVA80,MXVH80..S202403

RED NO.55,BLACK,TRIM20,3#

main55401-06510-C1iAXVH80,MXVA80,MXVH80..S202403

GRAY NO.205,BLACK,TRIM20

main55401-06510-C2iAXVH80,MXVA80,MXVH80..G202403

CHOCOLATE BROWN,BLACK,TRIM4#

55401FCLIP(FOR SAFETY PAD)

main52161-02040×2iAXVH80,MXVA80,MXVH80202403

(L)

main52161-16010×2iAXVH80,MXVA80,MXVH80202403

(J)

sub52161-0K040

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06280-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06240-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-06030-C0iAXVH80,MXVA80,MXVH80..S202403

BLACK,TRIM2#,3#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-06250-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06330iAXVH80,MXVA80,MXVH80202403

8202

8301

9010508478

main90105-08478

90105C0217

main90105-C0217

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9018305094

main90183-05094

9018305103

main90183-05103

90467C0087

main90467-C0087

33 parts on this diagram · 4 diagrams in section
