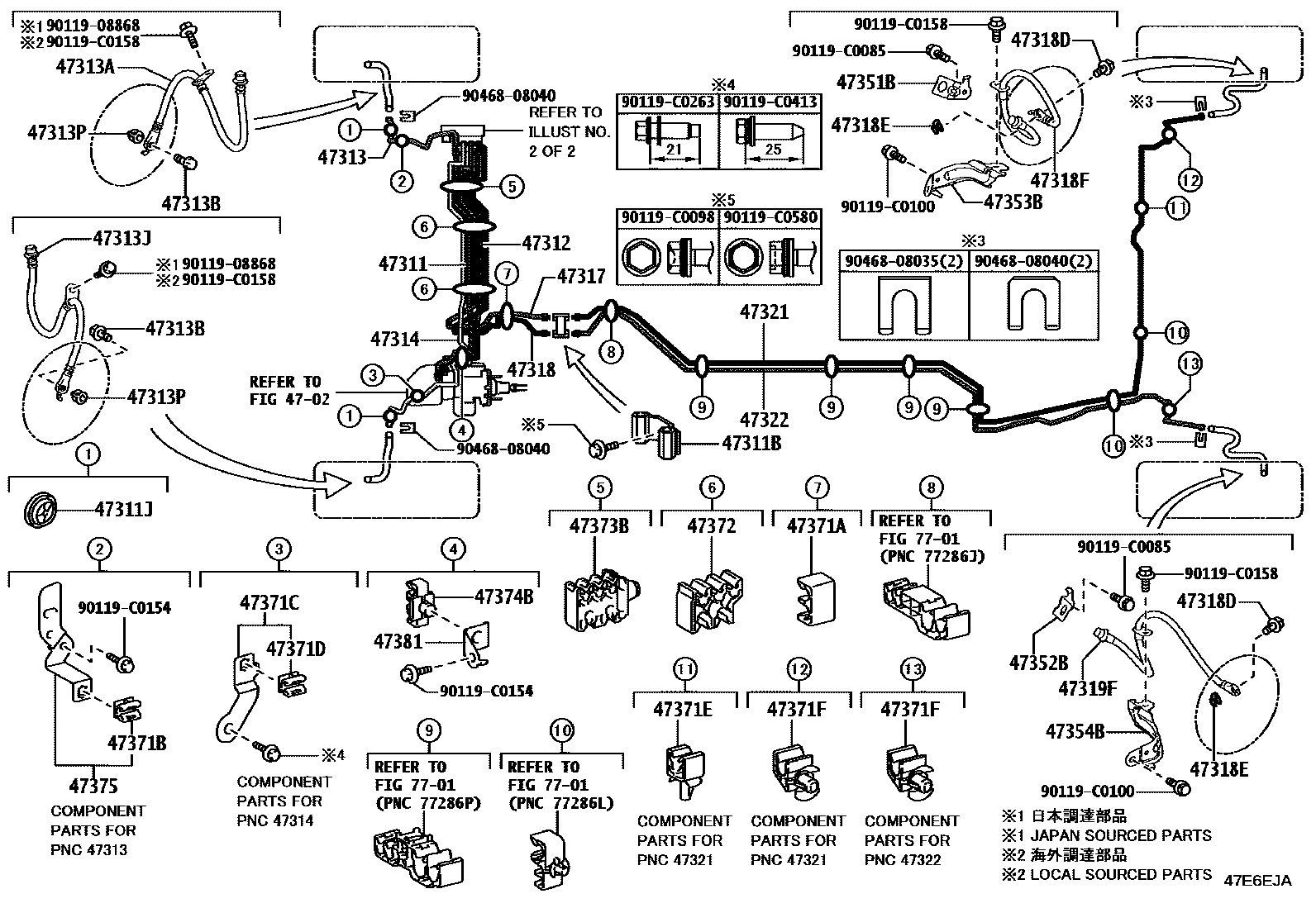

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-06810iMXVA80202403

main47311-06820iAXVH80,MXVH80202403

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-C0004iAXVH80,MXVA80,MXVH80202403

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-25037×2iAXVH80,MXVA80,MXVH80202403

47312TUBE, FRONT BRAKE, NO.2

main47312-06650iMXVA80202403

main47312-06660iAXVH80,MXVH80202403

47313TUBE, FRONT BRAKE, NO.3

main47313-06620iAXVH80,MXVA80,MXVH80202403

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2076iAXVH80,MXVA80,MXVH80202403

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAXVH80,MXVA80,MXVH80202403

(J)

main90401-C0001×2iAXVH80,MXVA80,MXVH80202403

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2077iAXVH80,MXVA80,MXVH80202403

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAXVH80,MXVA80,MXVH80202403

47314TUBE, FRONT BRAKE, NO.4

main47314-06580iMXVA80202403

main47314-06590iAXVH80,MXVH80202403

47317TUBE, FRONT BRAKE, NO.7

main47317-06700iMXVA80202403

main47317-06710iAXVH80,MXVH80202403

47318TUBE, FRONT BRAKE, NO.8

main47318-06270iMXVA80202403

main47318-06280iAXVH80,MXVH80202403

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAXVH80,MXVA80,MXVH80202403

(J)

main90401-C0001×2iAXVH80,MXVA80,MXVH80202403

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAXVH80,MXVA80,MXVH80202403

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2079iAXVH80,MXVA80,MXVH80202403

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2080iAXVH80,MXVA80,MXVH80202403

47321TUBE, REAR BRAKE, NO.1

main47321-06440iMXVA80202403

main47321-06450iAXVH80,MXVH80202403

47322TUBE, REAR BRAKE, NO.2

main47322-06440iMXVA80202403

main47322-06450iAXVH80,MXVH80202403

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06070iAXVH80,MXVA80,MXVH80202403

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06070iAXVH80,MXVA80,MXVH80202403

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-06060iAXVH80,MXVA80,MXVH80202403

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-06060iAXVH80,MXVA80,MXVH80202403

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iAXVH80,MXVA80,MXVH80202403

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D56iAXVH80,MXVA80,MXVH80202403

47371CCLAMP, BRAKE TUBE, NO.7

main47371-33350iAXVH80,MXVA80,MXVH80202403

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D56iAXVH80,MXVA80,MXVH80202403

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E01iAXVH80,MXVA80,MXVH80202403

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E10×2iAXVH80,MXVA80,MXVH80202403

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E40×2iAXVH80,MXVA80,MXVH80202403

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E79iAXVH80,MXVA80,MXVH80202403

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E31iMXVA80202403

main90949-01E80iAXVH80,MXVH80202403

47375CLAMP, BRAKE TUBE, NO.5

main47371-33340iAXVH80,MXVA80,MXVH80202403

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-06090iAXVH80,MXVH80202403

7701

9011908868

main90119-08868

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0154

main90119-C0154

90119C0158

main90119-C0158

90119C0263

main90119-C0263

90119C0413

main90119-C0413

90119C0580

main90119-C0580

9046808035

main90468-08035

9046808040

main90468-08040

46 parts on this diagram · 4 diagrams in section
