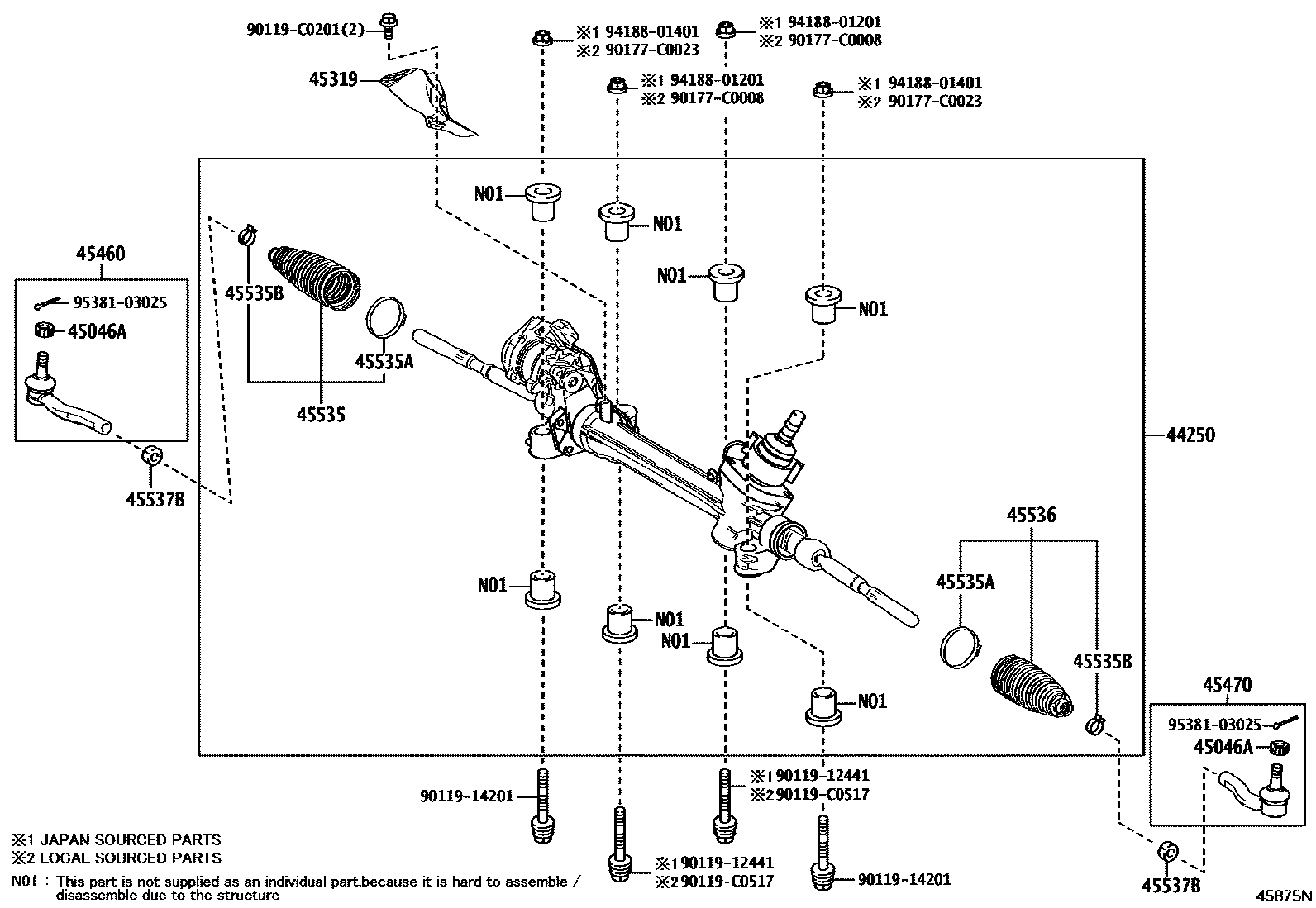

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06580iAXVH80,MXVA80,MXVH80202403-202508

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001×2iAXVH80,MXVA80,MXVH80202403

45319INSULATOR, STEERING GEAR HEAT

main45319-07020iAXVH80,MXVA80,MXVH80202403

45460ROD ASSY, TIE, RH

main45460-09290iAXVH80,MXVA80,MXVH80202403

45470ROD ASSY, TIE, LH

main45470-09190iAXVH80,MXVA80,MXVH80202403

45535BOOT, STEERING RACK, NO.1

main45535-09680iAXVH80,MXVA80,MXVH80202403

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0D070×2iAXVH80,MXVA80,MXVH80202403

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2iAXVH80,MXVA80,MXVH80202403

45536BOOT, STEERING RACK, NO.2

main45535-09680iAXVH80,MXVA80,MXVH80202403

45537BNUT, RACK END LOCK

main90178-16001×2iAXVH80,MXVA80,MXVH80202403

(J)

main90178-C0015×2iAXVH80,MXVA80,MXVH80202403

(L)

9011912441

main90119-12441

9011914201

main90119-14201

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

90177C0023

main90177-C0023

9418801201

main94188-01201

9418801401

main94188-01401

9538103025

main95381-03025

19 parts on this diagram · 1 diagram in section
