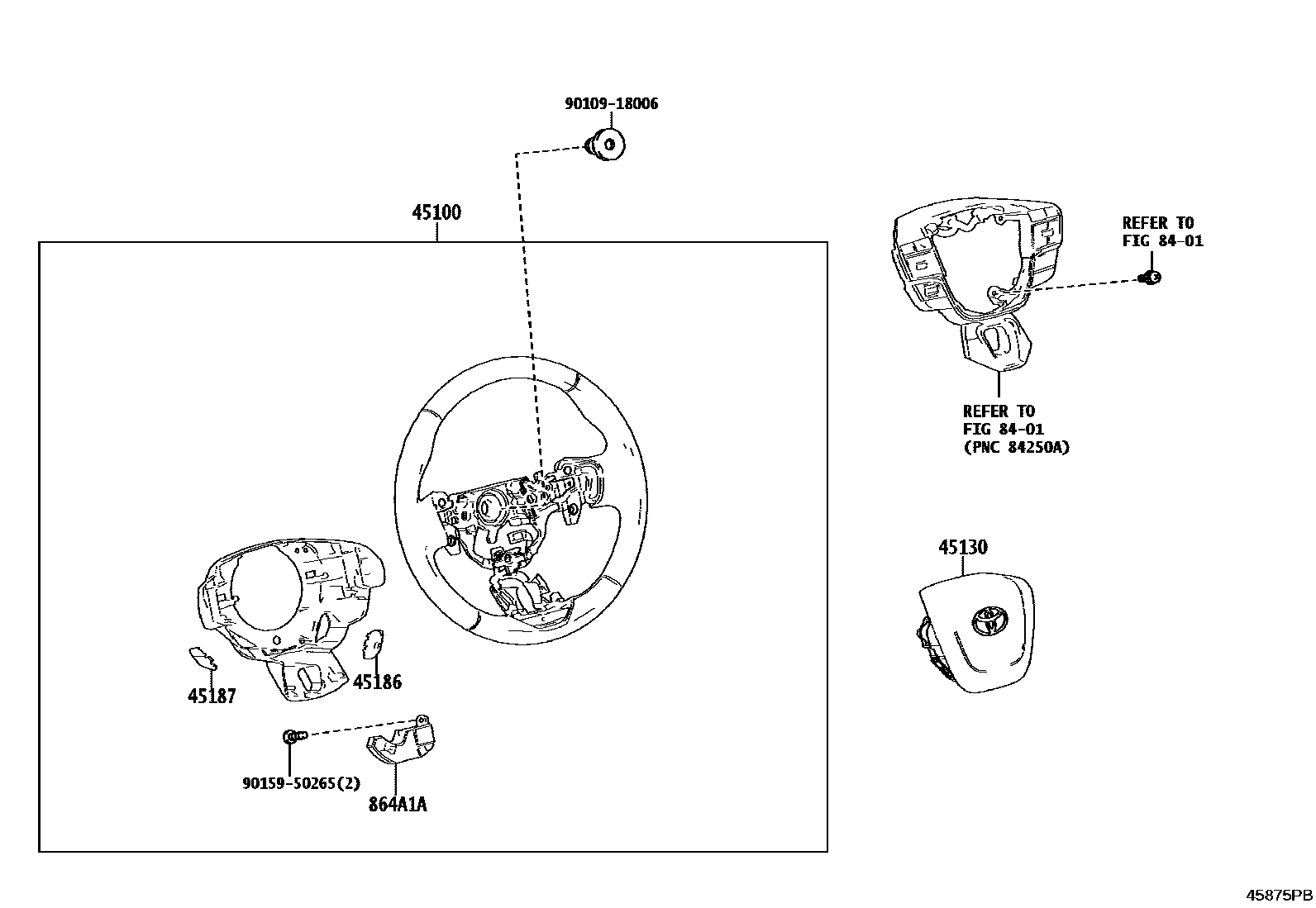

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,LEATHER,BLACK,RED NO.55,TRIM3#
3-SPOKE,LEATHER,BLACK,GRAY NO.205,TRIM2#
3-SPOKE,LEATHER,BLACK,CHOCOLATE BROWN,TRIM4#
3-SPOKE,LEATHER,ADVANCED SAFETY PACKAGE,BLACK,RED NO.55,TRIM3#
3-SPOKE,LEATHER,ADVANCED SAFETY PACKAGE,BLACK,GRAY NO.205,TRIM0#,2#
3-SPOKE,LEATHER,ADVANCED SAFETY PACKAGE,BLACK,CHOCOLATE BROWN,TRIM4#
3-SPOKE,LEATHER,Q UP GRADE PACKAGE,BLACK,TRIM0#,2#
45130BUTTON ASSY, HORN
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
8401SWITCH & RELAY & COMPUTER
864A1ACOMPUTER, MULTIPLEX NETWORK STEERING
ADVANCED SAFETY PACKAGE
Q UP GRADE PACKAGE
9010918006
main90109-18006
9015950265
main90159-50265
8 parts on this diagram · 1 diagram in section
