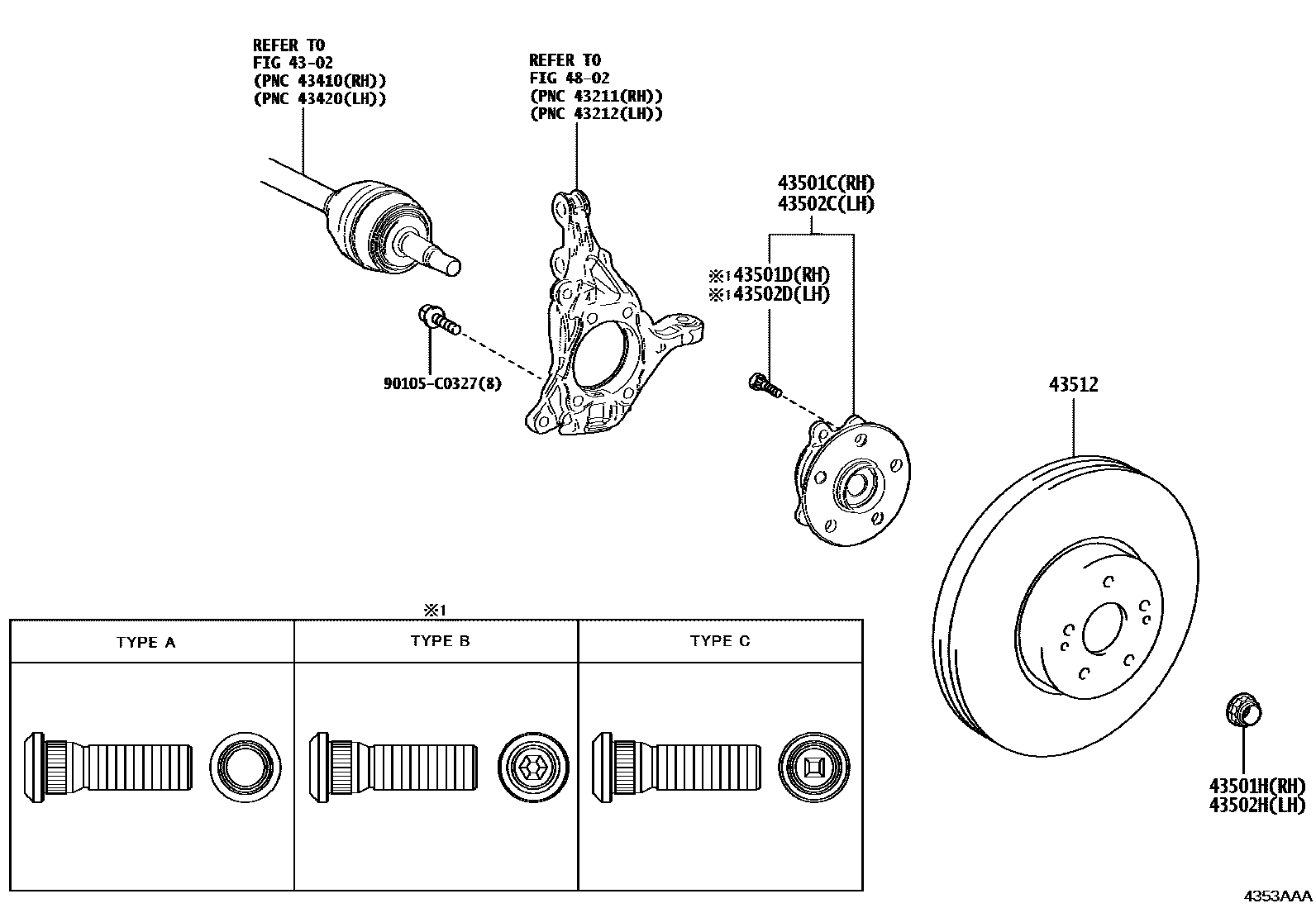

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06090iAXVH80,MXVA80,MXVH80202403

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXVH80,MXVA80,MXVH80202403

TYPE A:REFER ILLUST.

main90942-02081×5iAXVH80,MXVA80,MXVH80202403

TYPE B:REFER ILLUST.

main90942-02082×5iAXVH80,MXVA80,MXVH80202403

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXVH80,MXVA80,MXVH80202403

(J)

main90177-C0004iAXVH80,MXVA80,MXVH80202403

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06090iAXVH80,MXVA80,MXVH80202403

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAXVH80,MXVA80,MXVH80202403

TYPE A:REFER ILLUST.

main90942-02081×5iAXVH80,MXVA80,MXVH80202403

TYPE B:REFER ILLUST.

main90942-02082×5iAXVH80,MXVA80,MXVH80202403

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXVH80,MXVA80,MXVH80202403

(J)

main90177-C0004iAXVH80,MXVA80,MXVH80202403

(L)

43512DISC, FRONT

main43512-06170×2iAXVH80,MXVA80,MXVH80202403

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

90105C0327

main90105-C0327

10 parts on this diagram · 1 diagram in section
