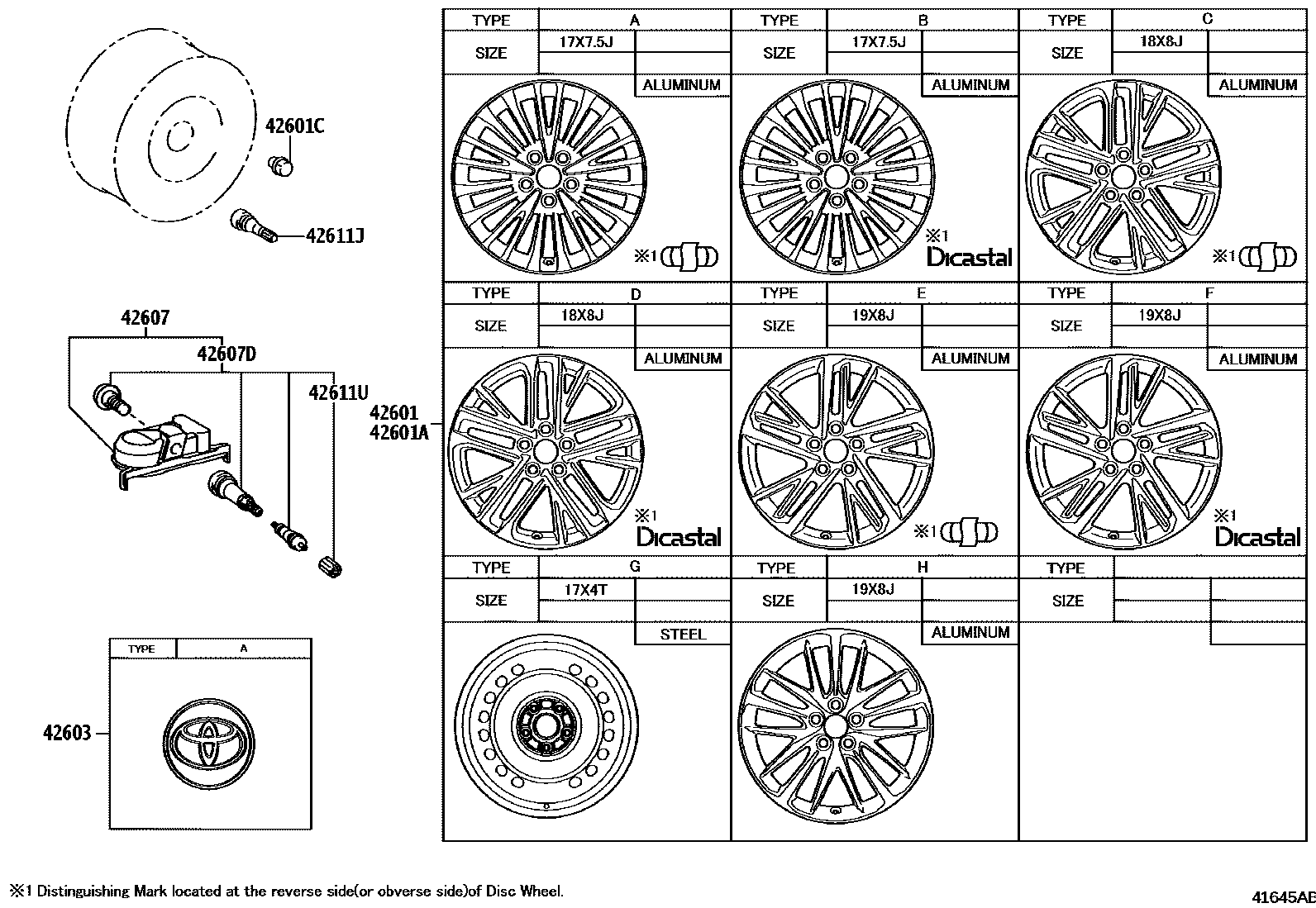

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-06M60iMXVH80..E;MXVA80..E,G202403-202508

17X7.5J,#,TYPE A:REFER ILLUST.

main42611-06M70iMXVH80..G202403-202508

17X7.5J,#,TYPE B:REFER ILLUST.

main42611-06M80iAXVH80..G202406

18X8J, #,TYPE C:REFER ILLUST.

main42611-06M90iAXVH80..G202406

18X8J, #,TYPE D:REFER ILLUST.

main42611-06N00iAXVH80,MXVA80,MXVH80..S202403

19X8J,#,TYPE E:REFER ILLUST.

main42611-06N10iAXVH80,MXVA80,MXVH80..S202403

19X8J,#,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-06G51iAXVH80,MXVA80,MXVH80202403

17X4T,TYPE G:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iAXVH80,MXVA80,MXVH80202403

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0R020iAXVH80,MXVA80,MXVH80202403

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02110iAXVH80,MXVA80,MXVH80202403

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5009iAXVH80,MXVA80,MXVH80202403

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAXVH80,MXVA80,MXVH80202403

(J)

main90942-C5005iAXVH80,MXVA80,MXVH80202403

(L)

42611UCAP, TIRE VALVE

main90942-C5001iAXVH80,MXVA80,MXVH80202403

8 parts on this diagram · 2 diagrams in section
