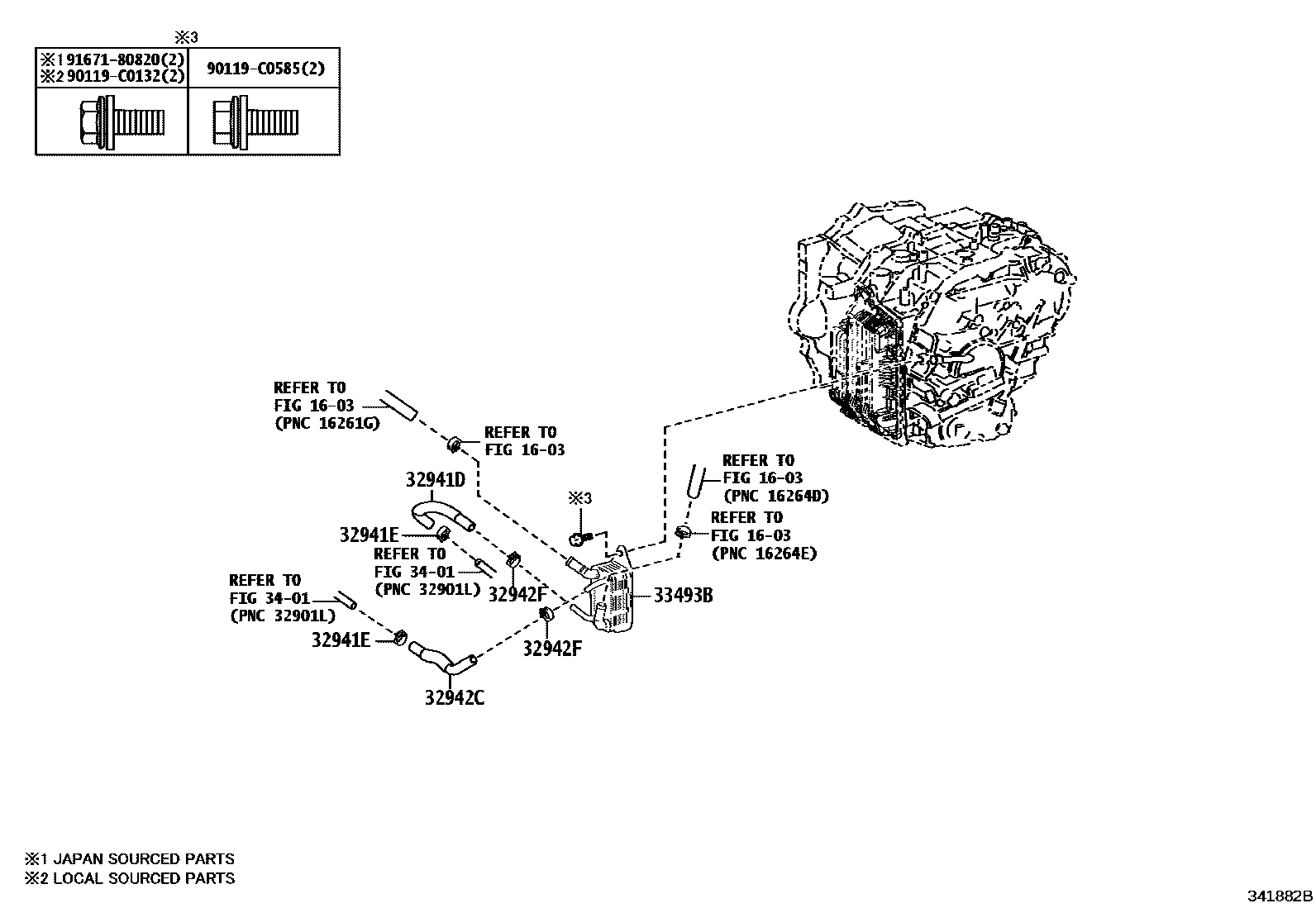

OIL COOLER & TUBE(CVT)

1603

32941DHOSE, OIL COOLER INLET

main32941-07050iMXVA80202403

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×2iMXVA80202403

(J)

main90466-C0024×2iMXVA80202403

(L)

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-07080iMXVA80202403

32942FCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iMXVA80202403

(J)

main90466-C0024×2iMXVA80202403

(L)

33493BCOOLER, OIL

main33493-0E030iMXVA80202403

3401

90119C0132

main90119-C0132

90119C0585

main90119-C0585

9167180820

main91671-80820

10 parts on this diagram · 1 diagram in section
