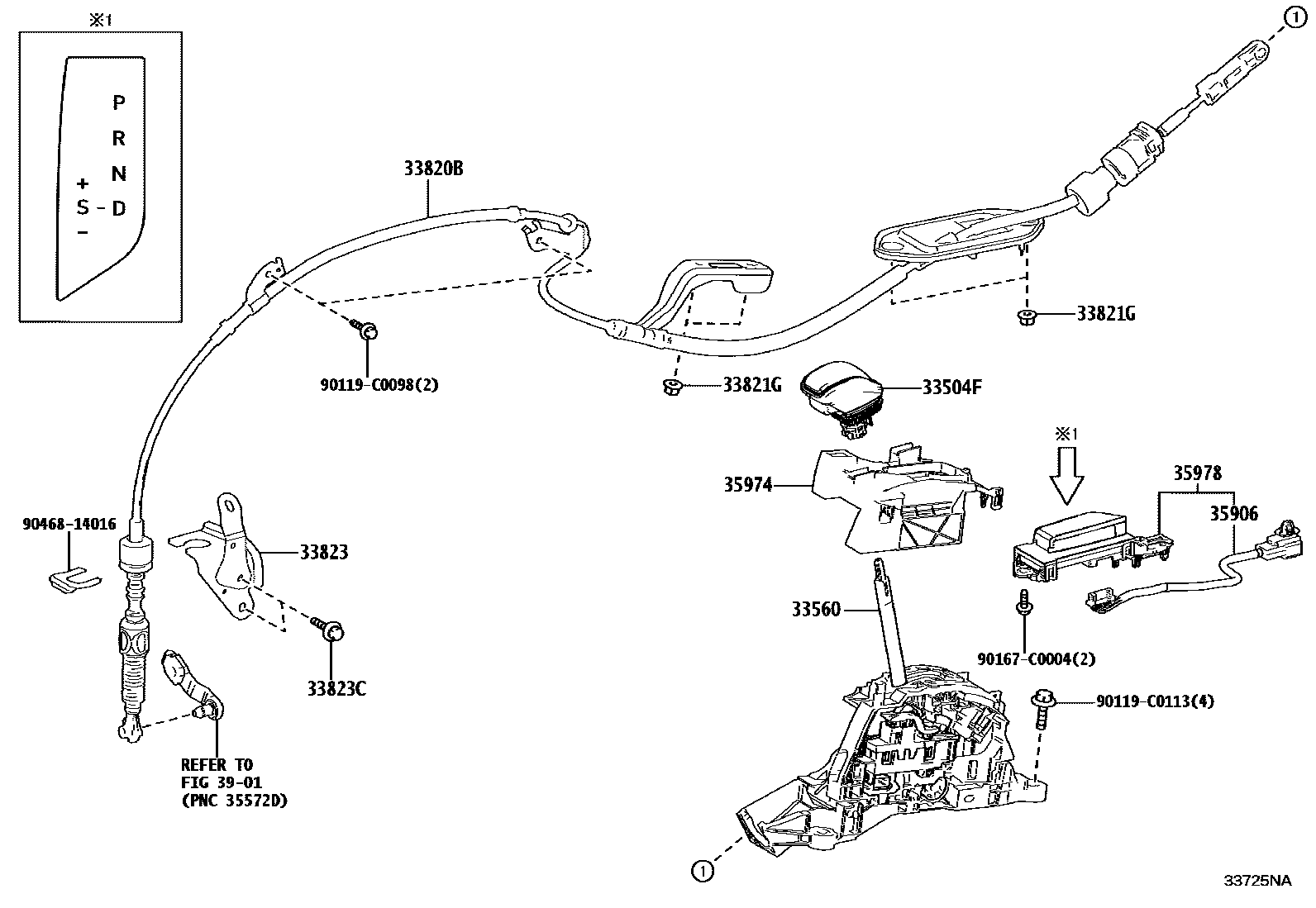

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06480-C0iAXVH80,MXVA80,MXVH80..S202403

BLACK,TRIM2#,3#

main33504-06490-C0iMXVA80,MXVH80..G202403

BLACK,TRIM2#,4#

main33504-06490-C0iAXVH80..G202406

BLACK,TRIM0#,2#,4#

main33504-06500-C0iMXVA80,MXVH80..E202403

BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06500iMXVA80202403

main33560-06510iAXVH80,MXVH80202403

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06690iMXVA80202403

main33820-06700iMXVH80202403-202406

main33820-06701iAXVH80,MXVH80202406

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0011iAXVH80,MXVA80,MXVH80202403

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0A060iAXVH80,MXVH80202403

main33823-F4050iMXVA80202403

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-C0132iAXVH80,MXVA80,MXVH80202403

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06380iAXVH80,MXVH80202403

main35906-06390iMXVA80202403

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06230iMXVA80202403

main35974-06240iAXVH80,MXVH80202403

35978INDICATOR, SHIFT POSITION

main35978-06470iAXVH80,MXVH80202403

main35978-06480iMXVA80202403

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

90119C0098

main90119-C0098

90119C0113

main90119-C0113

90167C0004

main90167-C0004

9046814016

main90468-14016

14 parts on this diagram · 2 diagrams in section
