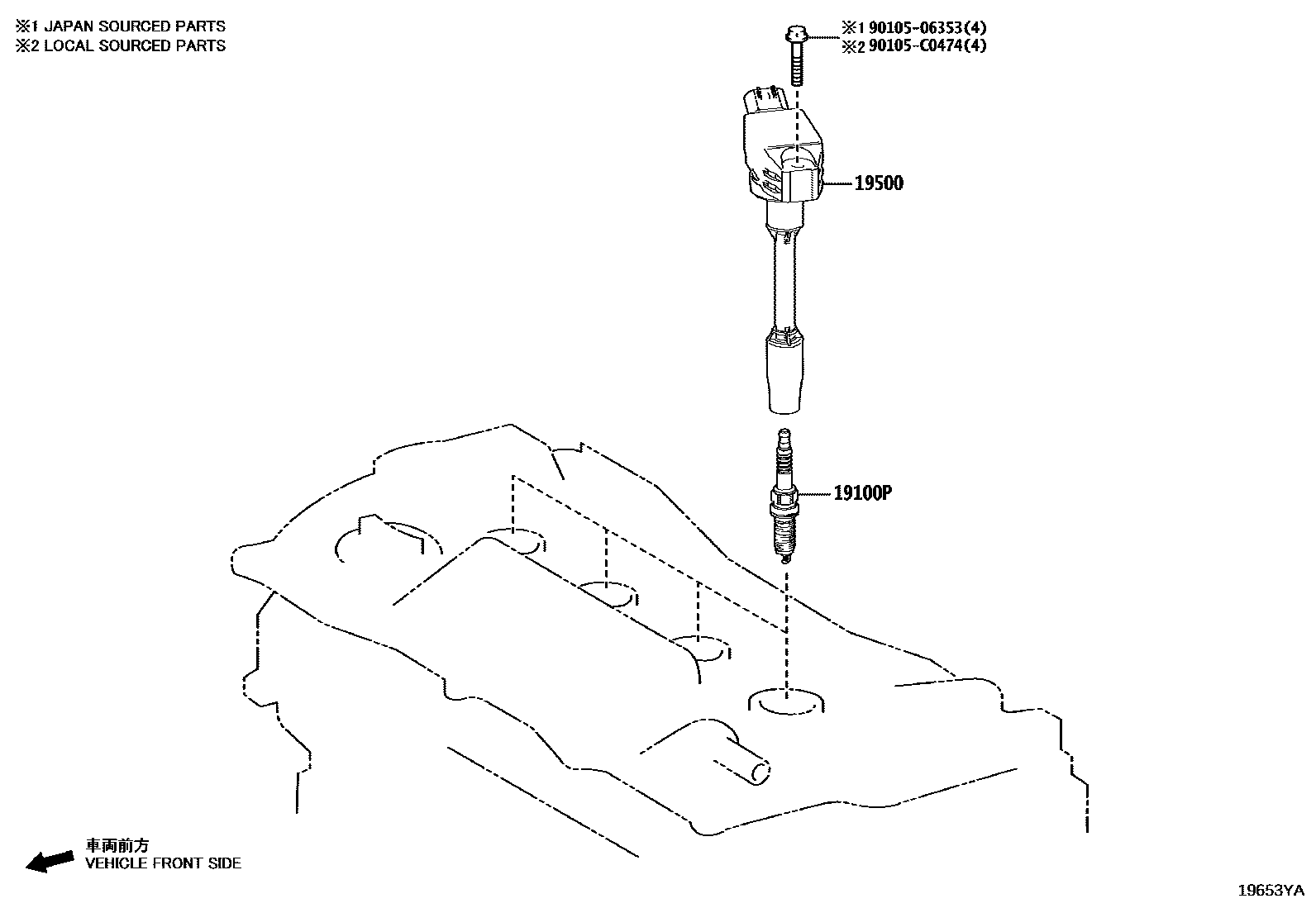

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01289×4iM20..MXVH80202403

FC16HR-Q8

main90919-01297×4iM20..MXVA80202403

FC20HR-Q8

main90919-C1011×4iA25..AXVH80202406

DILKAR6T8

19500COIL ASSY, IGNITION

main90919-C2009×4iM20..MXVA80202403

main90919-C2010×4iM20..MXVH80202403

9010506353

main90105-06353

90105C0474

main90105-C0474

4 parts on this diagram · 2 diagrams in section
