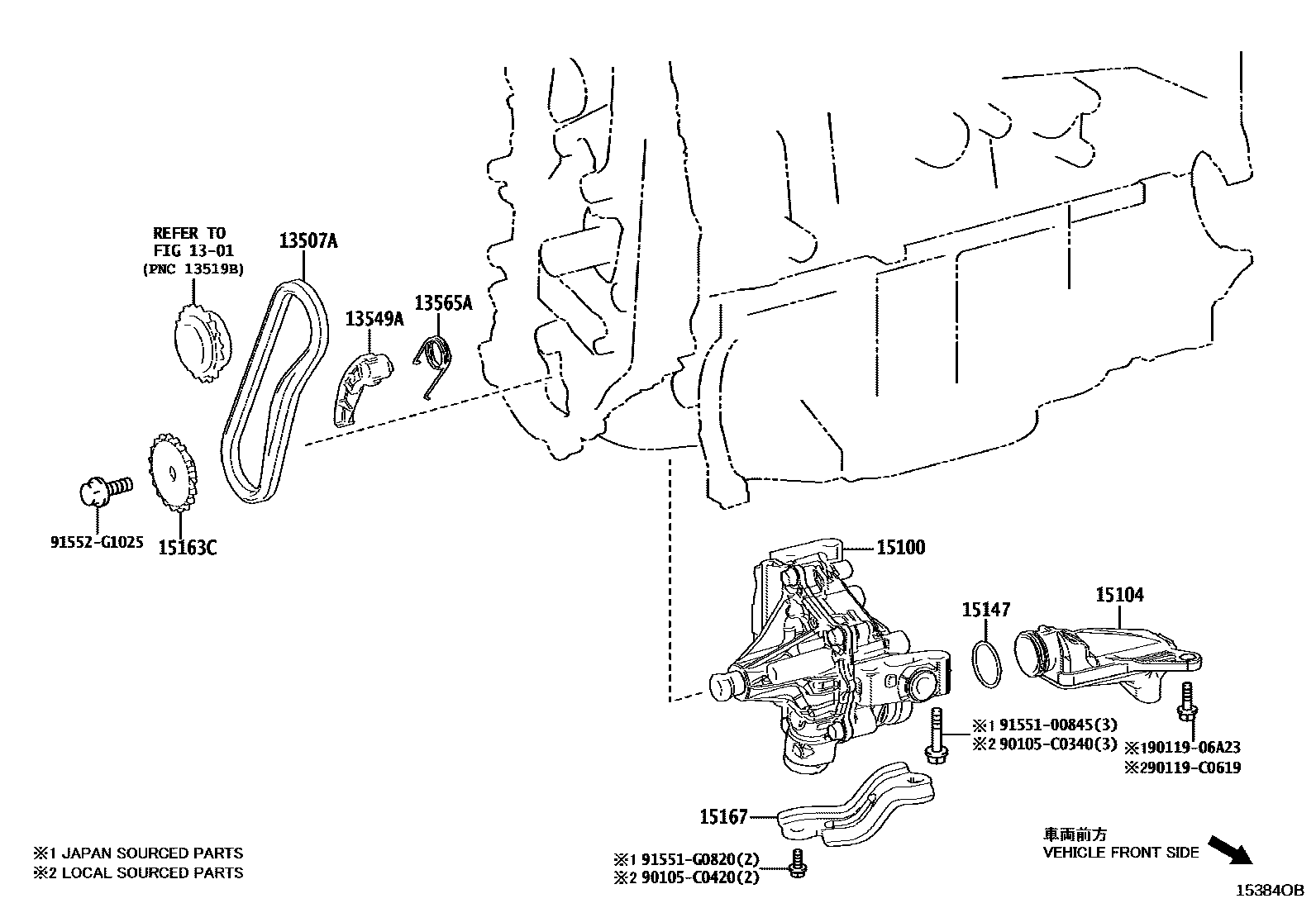

ENGINE OIL PUMP

0001 1 0002 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-F0020iA25..AXVH80202406

main13507-F2020iM20..MXVA80,MXVH80202403

13549APLATE, CHAIN TENSIONER

main13549-F2020iM20..MXVA80,MXVH80202403

13565ASPRING, CHAIN DAMPER

main13565-F2020iM20..MXVA80,MXVH80202403

15100PUMP ASSY, OIL

main15100-F0020iA25..AXVH80202406

main15100-F2030iM20..MXVA80,MXVH80202403

15104STRAINER SUB-ASSY, OIL

main15104-F0020iA25..AXVH80202406

main15104-F2050iM20..MXVA80,MXVH80202403

15147GASKET, OIL STRAINER

main15147-F2010iA25..AXVH80202406

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-F2020iM20..MXVA80,MXVH80202403

15167BRACKET, OIL PUMP

main15167-F0010iA25..AXVH80202406

90105C0340

main90105-C0340

90105C0420

main90105-C0420

9011906A23

main90119-06A23

90119C0619

main90119-C0619

9155100845

main91551-00845

91551G0820

main91551-G0820

91552G1025

main91552-G1025

16 parts on this diagram · 2 diagrams in section
