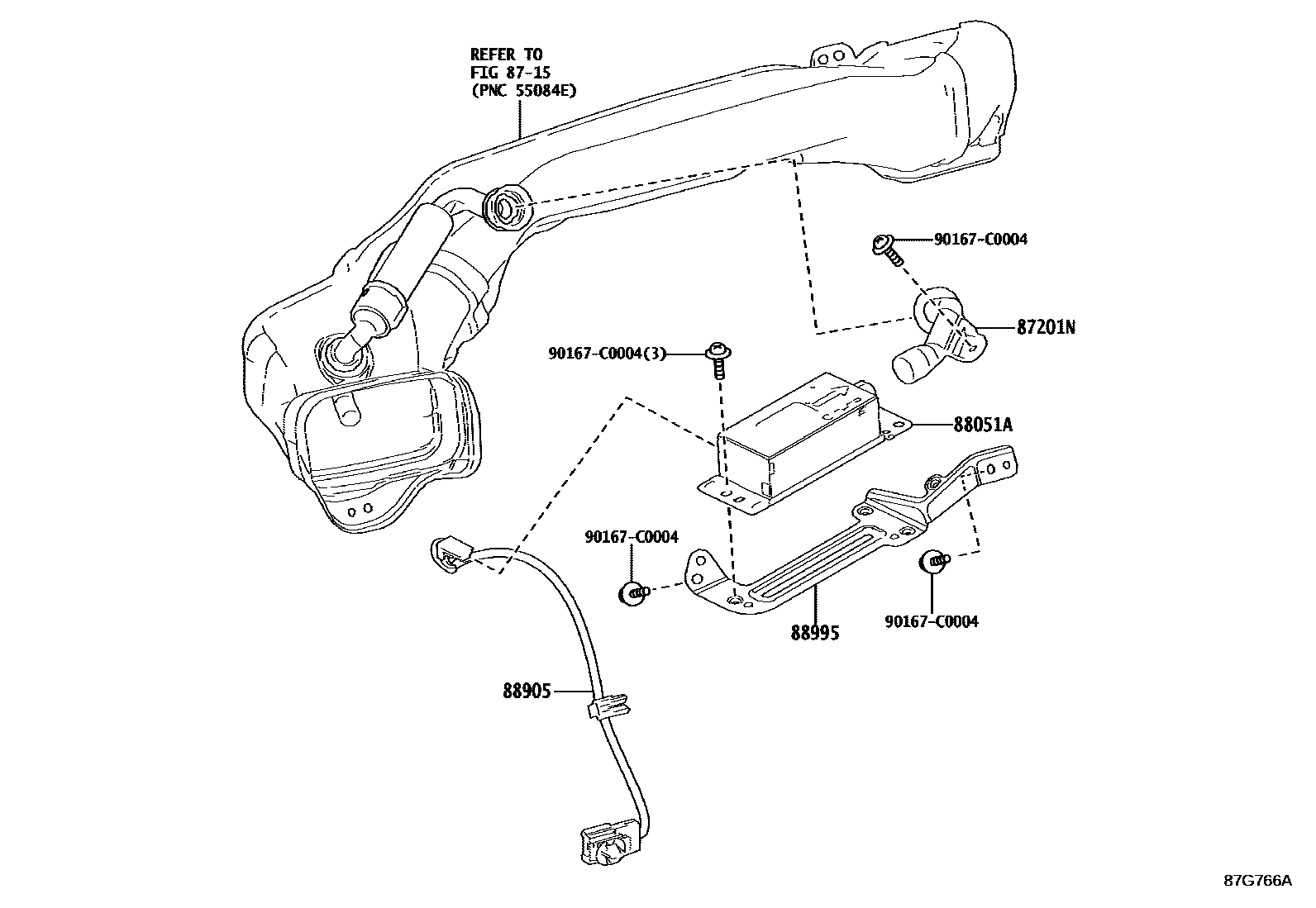

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main55848-06010iASV71..G,S201712-201902

88051AGENERATOR SUB-ASSY,ION

main88051-0N010iASV71,AXVA70,AXVH71,MXVA71..G,S; ASV71,MXVA71..G201712-202103

VALUE PACKAGE

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main82144-06020iASV71,AXVA70,AXVH71,MXVA71..G,S; ASV71,MXVA71..G201712-202103

VALUE PACKAGE

88995BRACKET,ION GENERATOR, NO.1

main88995-06040iASV71,AXVA70,AXVH71,MXVA71..G,S; ASV71,MXVA71..G201712-202103

VALUE PACKAGE

90167C0004

main90167-C0004

6 parts on this diagram · 1 diagram in section
