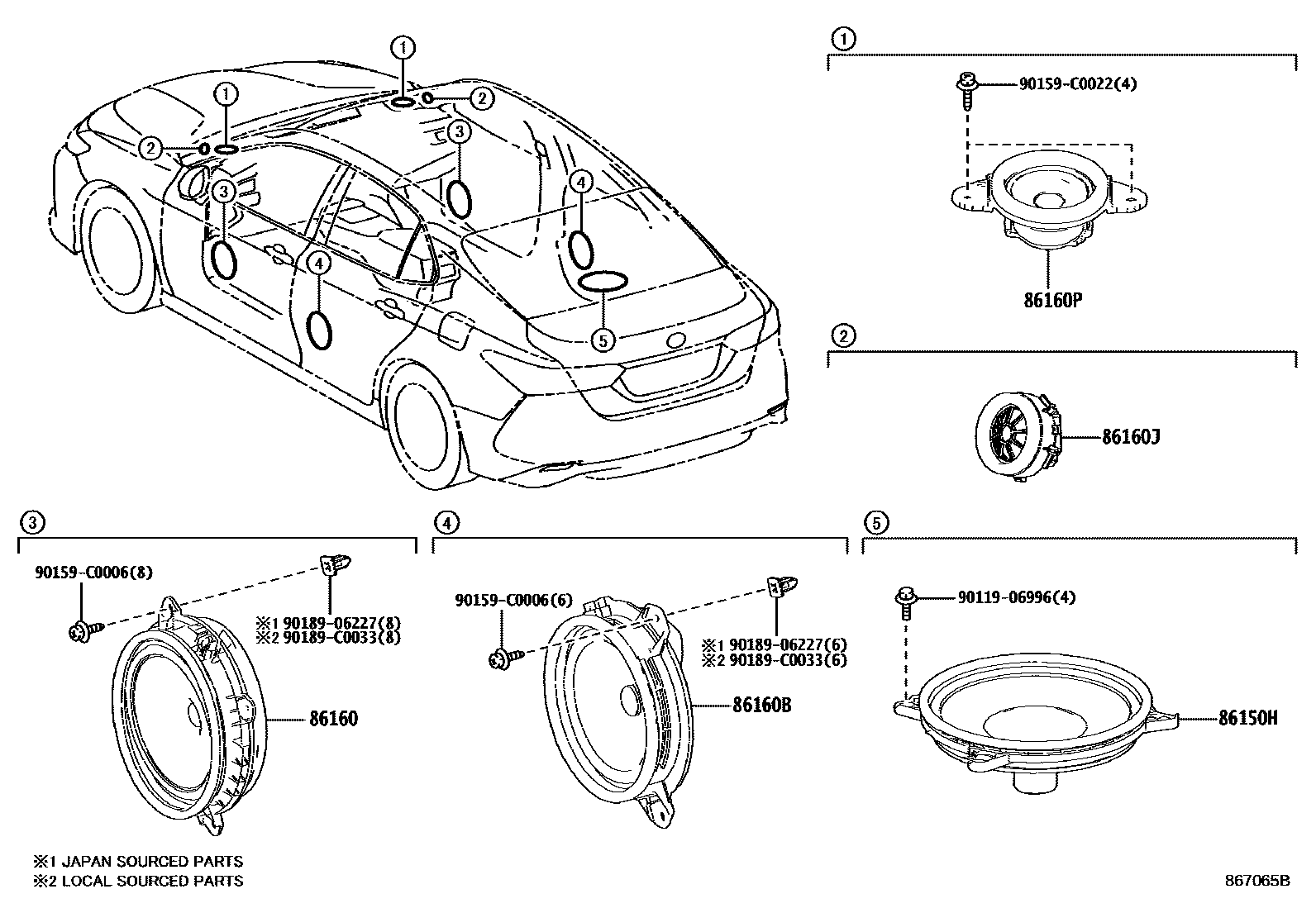

SPEAKER

0001 1 0002 1

86150HSPEAKER ASSY, W/BRACKET

main86150-06070iAXVA70,AXVH71..G201903-202103

AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-06A20×2iAXVA70,AXVH71,MXVA71; AXVA70,AXVH71..G202103-202304

AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER

main86160-06B10×2iAXVA70,AXVH71,MXVA71202304

main86160-06880×2iAXVA70,AXVH71..G201903-202103

AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER

86160BSPEAKER ASSY, REAR

main86160-02C10×2iAXVA70,AXVH71,MXVA71201903-202103

main86160-0D390×2iAXVA70,AXVH71201712-201903

main86160-06870×2iAXVA70,AXVH71..G201903-202103

AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86150-06050×2iAXVA70,AXVH71..G201903-202103

AUDIO-8-INCH DISPLAY & CD & JBL & 9SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-06690×2iAXVA70,AXVH71,MXVA71201712-202103

main86160-06A50×2iAXVA70,AXVH71..G202103

AUDIO-10.1 DISPLAY & AVN(DOP) & JBL & 9SPEAKER

9011906996

main90119-06996

90159C0006

main90159-C0006

90159C0022

main90159-C0022

9018906227

main90189-06227

90189C0033

main90189-C0033

10 parts on this diagram · 2 diagrams in section
