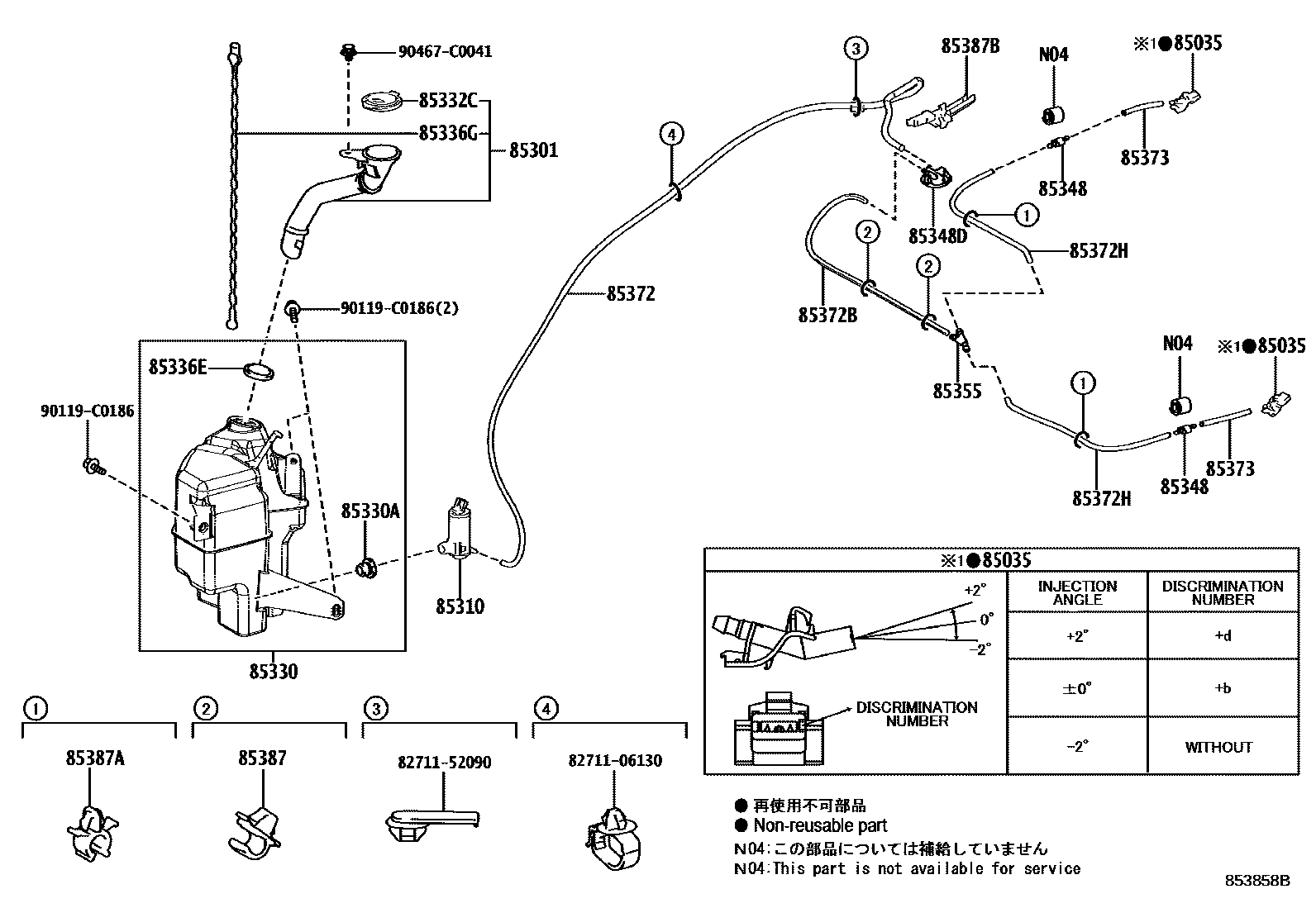

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iASV71201712-201902

ANGLE 0

main85381-30230×2iASV71201712-201902

ANGLE -2

main85381-30240×2iAXVA70,AXVH71,MXVA71202103

ANGLE +2

85301INLET SUB-ASSY, WASHER

main85329-06300iAXVA70,AXVH71,MXVA71201712-202103

main85329-06301iAXVA70,AXVH71,MXVA71202103

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-33070iAXVA70,AXVH71,MXVA71202103

85330JAR ASSY, WINDSHIELD WASHER

main85315-06300iASV71201712-201902

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iASV71201712-201902

85332CCAP, FRONT WASHER TANK

main85316-06300iASV71201712-201902

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iASV71201712-201902

85336GGAGE, WATER LEVEL

main85312-47020iASV71201712-201902

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85321-26020×2iAXVA70,AXVH71,MXVA71201712-202103

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85373-33030iASV71201712-201902

85355VALVE, WINDSHIELD WASHER HOSE

main85317-06240iASV71201712-201902

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33058iASV71201712-201902

L=1530

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33308iASV71201712-201902

L=620

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33307×2iASV71201712-201902

L=370

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33232×2iASV71201712-201902

L=60

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040×2iASV71201712-201902

85387ACLAMP, WASHER, NO.2

main90469-07011×2iASV71,AXVA70,AXVH71201712-201812

main90469-C0015×2iASV71201901-201902

85387BCLAMP, WASHER, NO.3

main85371-06060iASV71201712-201902

8271106130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-06130

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

90119C0186

main90119-C0186

90467C0041

main90467-C0041

22 parts on this diagram · 1 diagram in section
