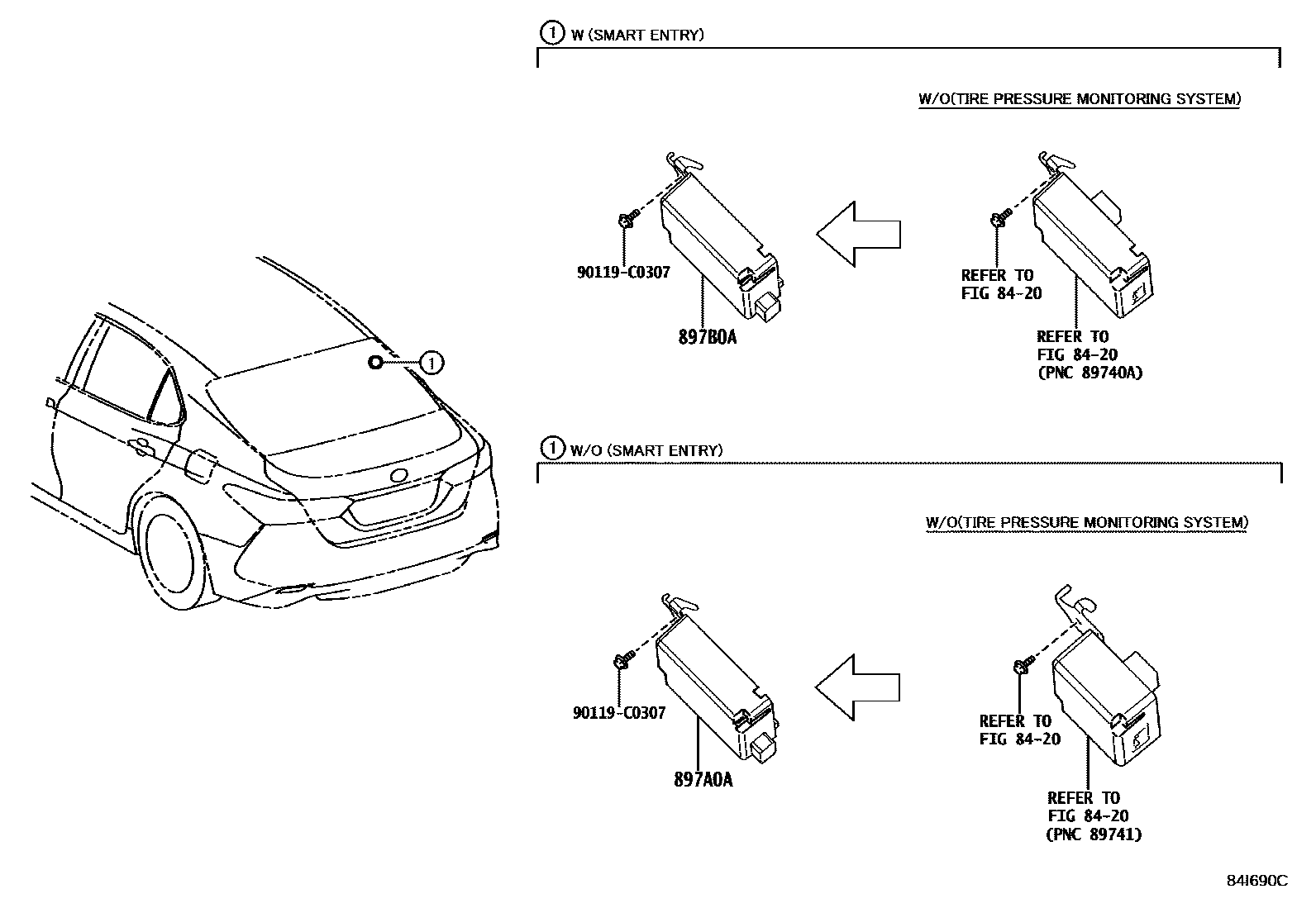

TIRE PRESSURE WARNING SYSTEM

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

897A0ARECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897A0-06120iMXVA71..E; MXVA71..G201903-201904

VALUE PACKAGE

main897A0-06121iMXVA71..E; MXVA71..G201904-202103

VALUE PACKAGE

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-06140iASV71,AXVA70,AXVH71..G; ASV71..G201712-201802

VALUE PACKAGE

main897B0-06141iAXVH71..E201903-201904

main897B0-06142iAXVH71..E201904-202103

main897B0-06151iAXVA70,AXVH71,MXVA71..G,S; MXVA71..G201903-201904

VALUE PACKAGE

main897B0-06152iAXVA70,AXVH71,MXVA71..G,S; MXVA71..G201904-202103

VALUE PACKAGE

main897B0-06150iAXVA70,AXVH71..G201712-201802

UPGRADE PACKAGE

90119C0307

main90119-C0307

4 parts on this diagram · 1 diagram in section
