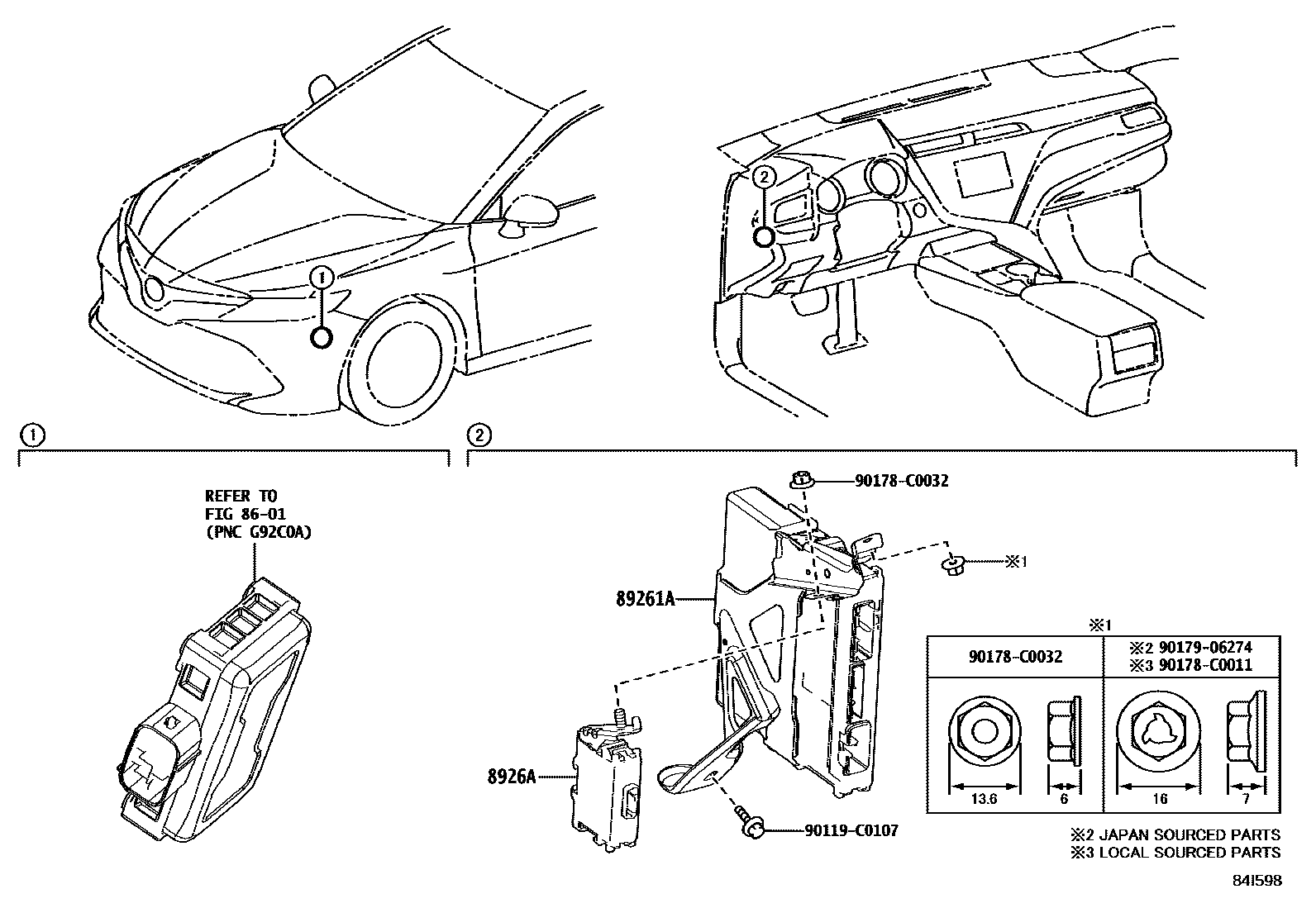

ECO-RUN SYSTEM

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

89261ACOMPUTER, ENGINE STOP AND START

main89260-06010iASV71201712-201902

main89260-06040iAXVA70202103-202304

main89260-06050iAXVA70201712-201903

main89260-06060iMXVA71202103-202304

main89260-06070iAXVA70201903-202103

main89260-06100iMXVA71201903-202011

main89260-06101iMXVA71202012-202103

main89260-06110iAXVA70202304

main89260-06120iMXVA71202304

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-06010iAXVA70201712-202103

90119C0107

main90119-C0107

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
