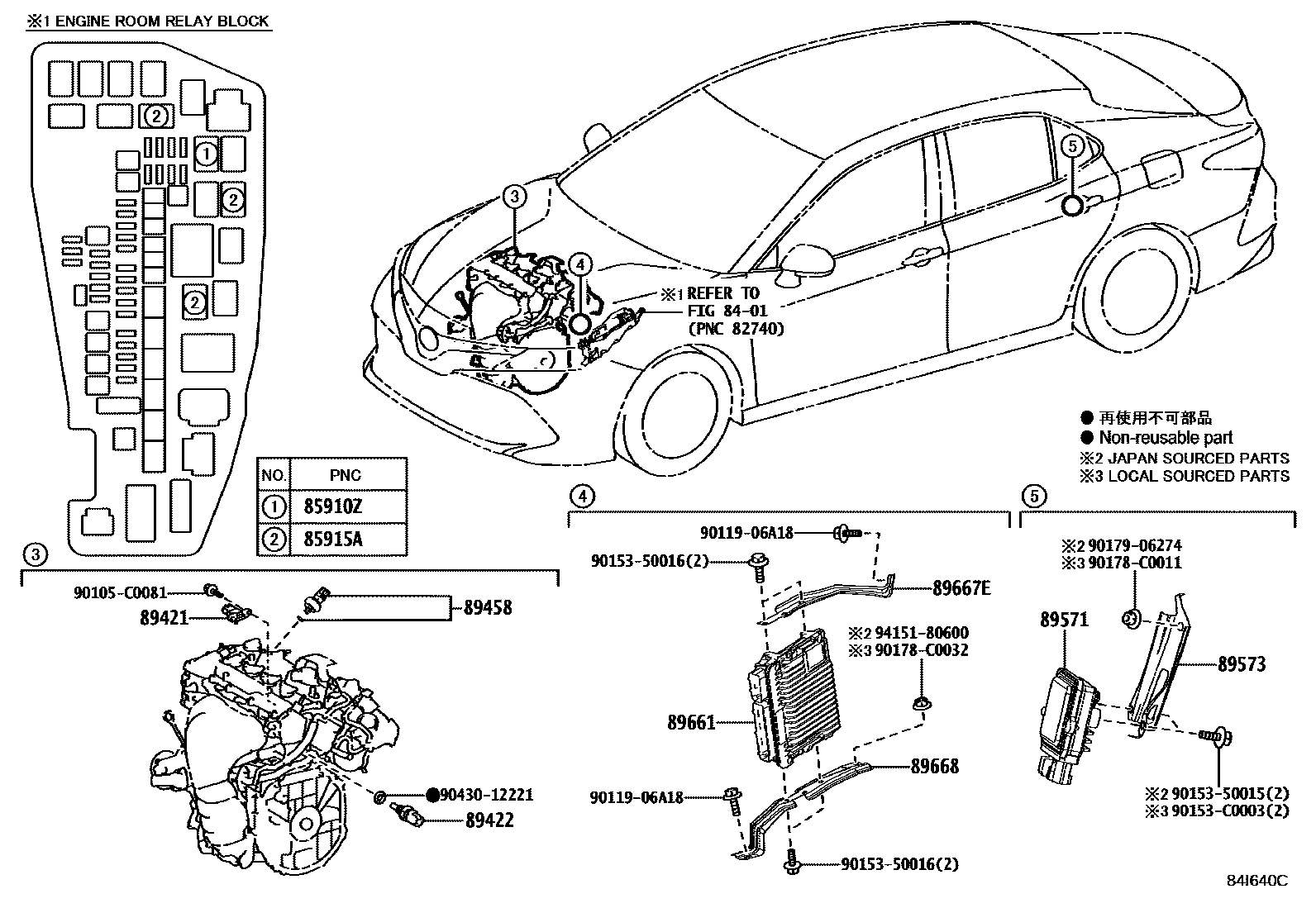

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-T2005iAXVA70,AXVH71,MXVA71201712-202103

85915ARELAY, MAIN

main90987-T2005iASV71201712-202103

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iASV71201712-201902

main89421-33010iAXVA70,AXVH71,MXVA71201712-202103

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iASV71201712-201902

89458SENSOR, FUEL PRESSURE

main89458-0R010iAXVA70,AXVH71,MXVA71202403

(L)

main89458-33030iAXVA70,AXVH71,MXVA71201712-202403

main89458-33030iAXVA70,AXVH71,MXVA71202403

(J)

main89458-33041iASV71201712-201902

89571COMPUTER, FUEL PUMP CONTROL

main89571-33030iASV71201712-202001

main89571-42010iAXVA70,AXVH71,MXVA71202001-202103

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-06030iAXVA70,AXVH71,MXVA71201712-202001

main89573-06060iAXVA70,AXVH71,MXVA71202001-202103

89661COMPUTER, ENGINE CONTROL

main89661-06N90iMXVA71201903-202001

DENSO

main89661-06X80iMXVA71202001-202103

DENSO

main89661-06Y80iAXVH71201712-201903

DENSO

main89661-06Z30iASV71201712-201902

DENSO

main89661-0X210iAXVH71201903-202001

DENSO

main89661-0X300iAXVA70201712-202001

DENSO

sub89661-0X301

main89661-0X450iAXVH71202103-202304

DENSO

main89661-0X530iAXVH71202001-202103

DENSO

main89661-0X540iAXVA70202001-202005

DENSO

sub89661-0X541

main89661-0X541iAXVA70202006-202103

main89661-0X740iMXVA71202103-202304

DENSO

main89661-0X750iAXVA70202103-202112

DENSO

sub89661-0X751

main89661-0X751iAXVA70202201-202304

DENSO

main89661-0XA80iMXVA71202304

DENSO

main89661-0XA90iAXVA70202304

DENSO

main89661-0XB00iAXVH71202304

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06270iAXVH71201712-202103

main89667-06280iASV71201712-201902

main89667-06290iAXVA70,MXVA71201712-202103

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06270iAXVH71201712-202103

main89668-06280iASV71201712-201902

main89668-06290iAXVA70,MXVA71201712-202103

90105C0081

main90105-C0081

9011906A18

main90119-06A18

9015350015

main90153-50015

9015350016

main90153-50016

90153C0003

main90153-C0003

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906274

main90179-06274

9043012221

main90430-12221

9415180600

main94151-80600

21 parts on this diagram · 6 diagrams in section
