METER

0001 1COMBINATION METER (4.2INCH DI0002 1COMBINATION METER (7INCH DISP0003 1COMBINATION METER (FULL DISPL0004 1HEAD-UP DISPLAY

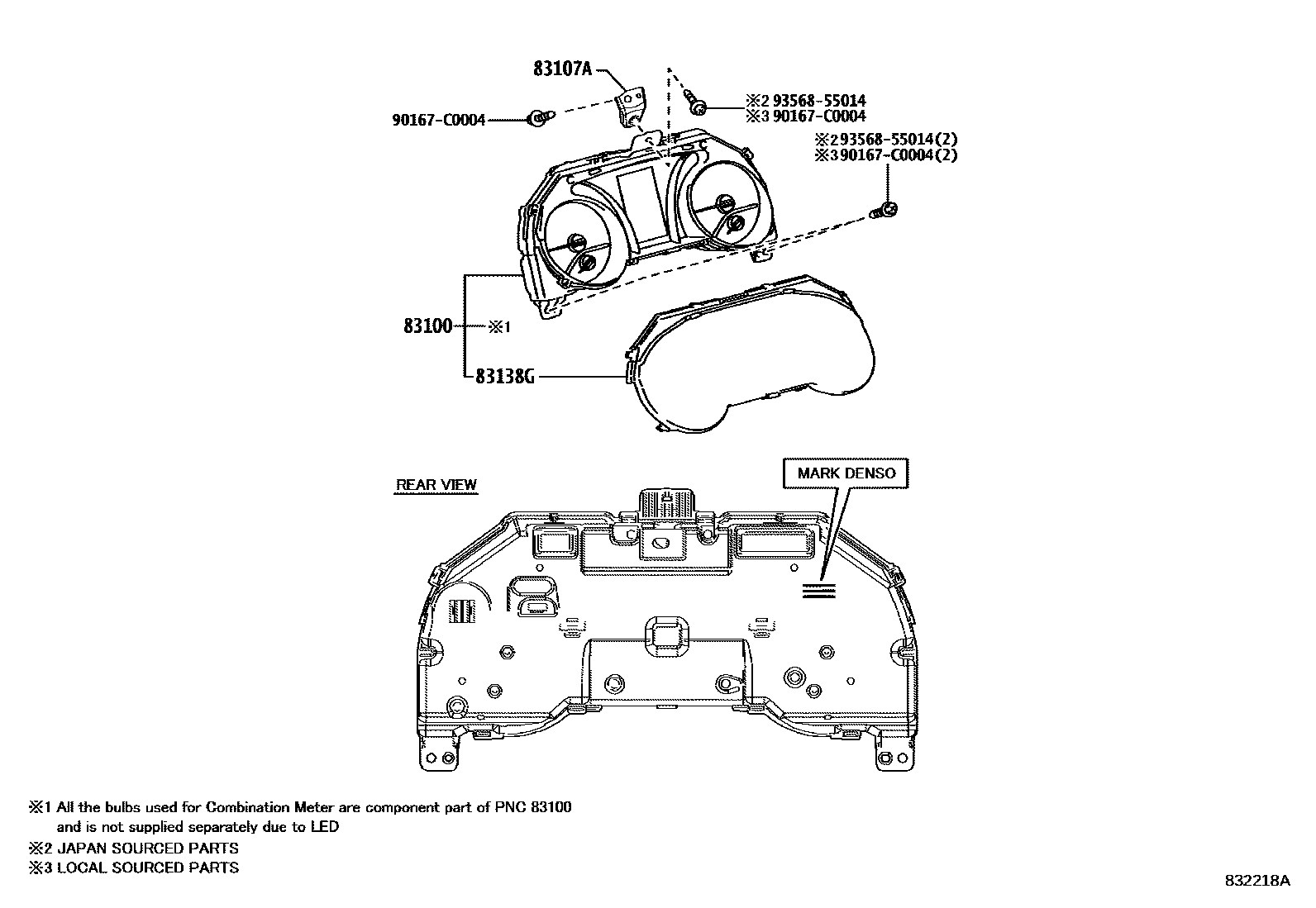

83100METER ASSY, COMBINATION

main83800-0XG10supersedes 83800-0XG20iASV71..E; ASV71..G201712-201902

DENSO; DENSO,VALUE PACKAGE

main83800-0XG11iMXVA71..E; MXVA71..G201903-201912

DENSO; DENSO,VALUE PACKAGE

main83800-0XG12iMXVA71..E; MXVA71..G201912-202103

DENSO; DENSO,VALUE PACKAGE

main83800-0XG13supersedes 83800-0XT93iMXVA71..E; MXVA71..G202103-202112

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XG14iMXVA71..E; MXVA71..G202112-202304

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XG15iMXVA71..E; MXVA71..G202304-202306

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XG16supersedes 83800-0XG26iMXVA71..E; MXVA71..G202307

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XG20iAXVA70..G201712-201903

CONTINENTAL

main83800-0XG21iAXVA70,MXVA71..G201903-201911

CONTINENTAL

main83800-0XG22iAXVA70,MXVA71..G201911-202103

CONTINENTAL

main83800-0XP10iASV71..S201712-201902

CONTINENTAL

main83800-0XP11iAXVA70,MXVA71..S201903-201911

CONTINENTAL

main83800-0XP12iAXVA70,MXVA71..S201911-202103

CONTINENTAL

main83800-0XP13iMXVA71..S202103-202106

CONTINENTAL

main83800-0XP14iMXVA71..S202107-202304

CONTINENTAL

main83800-0XP15iMXVA71..S202304-202306

CONTINENTAL

main83800-0XP16iMXVA71..S202307

CONTINENTAL

main83800-0XU00iAXVH71..G; AXVH71..G,S202103-202112

VISTEON; VISTEON,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XU01iAXVH71..G; AXVH71..G,S202112-202206

VISTEON; VISTEON,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XU02iAXVH71..G; AXVH71..G,S202304-202305

VISTEON; VISTEON,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XU03iAXVH71..G; AXVH71..G,S202206-202304

VISTEON; VISTEON,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XU04supersedes 83800-0XK52iAXVH71..G,S202305

VISTEON

main83800-0XF80supersedes 83800-0XK50iAXVH71..G201810-201903

CONTINENTAL,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XF81supersedes 83800-0XK51iAXVH71..G201903-201911

CONTINENTAL,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XF82supersedes 83800-0XK52iAXVH71..G201911-202001

CONTINENTAL,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XG24iAXVA70..G202107-202112

CONTINENTAL,MIDDLE PACKAGE

main83800-0XN30supersedes 83800-0XM90iAXVH71..E201810-201903

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XN31supersedes 83800-0XM91iAXVH71..E201903-201912

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XN32supersedes 83800-0XN36iAXVH71..E201912-202001

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XN33supersedes 83800-0XK52iAXVH71..E; AXVH71..G202103-202112

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XN34supersedes 83800-0XK52iAXVH71..E; AXVH71..G202112-202304

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XN35supersedes 83800-0XK52iAXVH71..E; AXVH71..G202304-202306

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XN36supersedes 83800-0XK52iAXVH71..E; AXVH71..G202307

DENSO; DENSO,WITHOUT(CLEARANCE & BACK SONER)

main83800-0XQ00supersedes 83800-0XP90iAXVH71..S201903-201911

CONTINENTAL,EXHAUST EMISSION CONTROL-CHINA 6

main83800-0XQ01iAXVH71..S201911-202001

CONTINENTAL,EXHAUST EMISSION CONTROL-CHINA 6

83107ABRACKET SUB-ASSY, METER, NO.1

main83107-06070iASV71201712-201902

83138GGLASS, COMBINATION METER

main83852-0XG10iAXVH71,MXVA71..E; MXVA71..G201712-202103

VALUE PACKAGE

main83852-0XU00iAXVH71..G; AXVH71..G,S202103-202403

WITHOUT(CLEARANCE & BACK SONER)

main83852-33S80supersedes 83852-0XT90iAXVA70,AXVH71,MXVA71..G,S201712-202103

90167C0004

main90167-C0004

9356855014

main93568-55014

5 parts on this diagram · 4 diagrams in section
