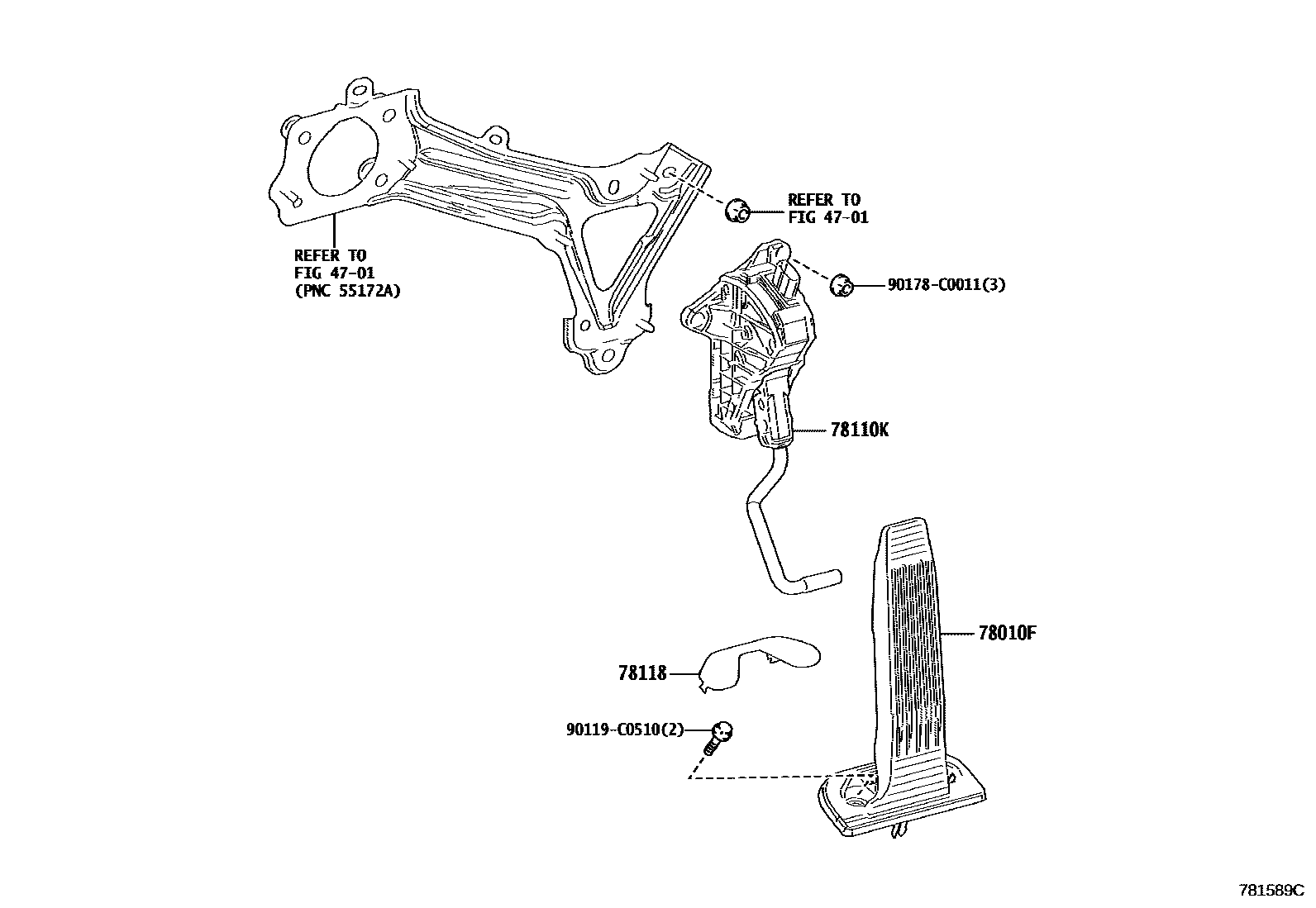

ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-06020iASV71201712-201902

main78101-06021iAXVA70,AXVH71,MXVA71202207

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06170iASV71201712-201902

main78110-06171iAXVH71,MXVA71202010-202103

main78110-06210iAXVA70201712-202009

main78110-06211iAXVA70202010-202103

78118PAD, ACCELERATOR PEDAL

main78117-06020iAXVA70,AXVH71,MXVA71202103

90119C0510

main90119-C0510

90178C0011

main90178-C0011

6 parts on this diagram · 1 diagram in section
