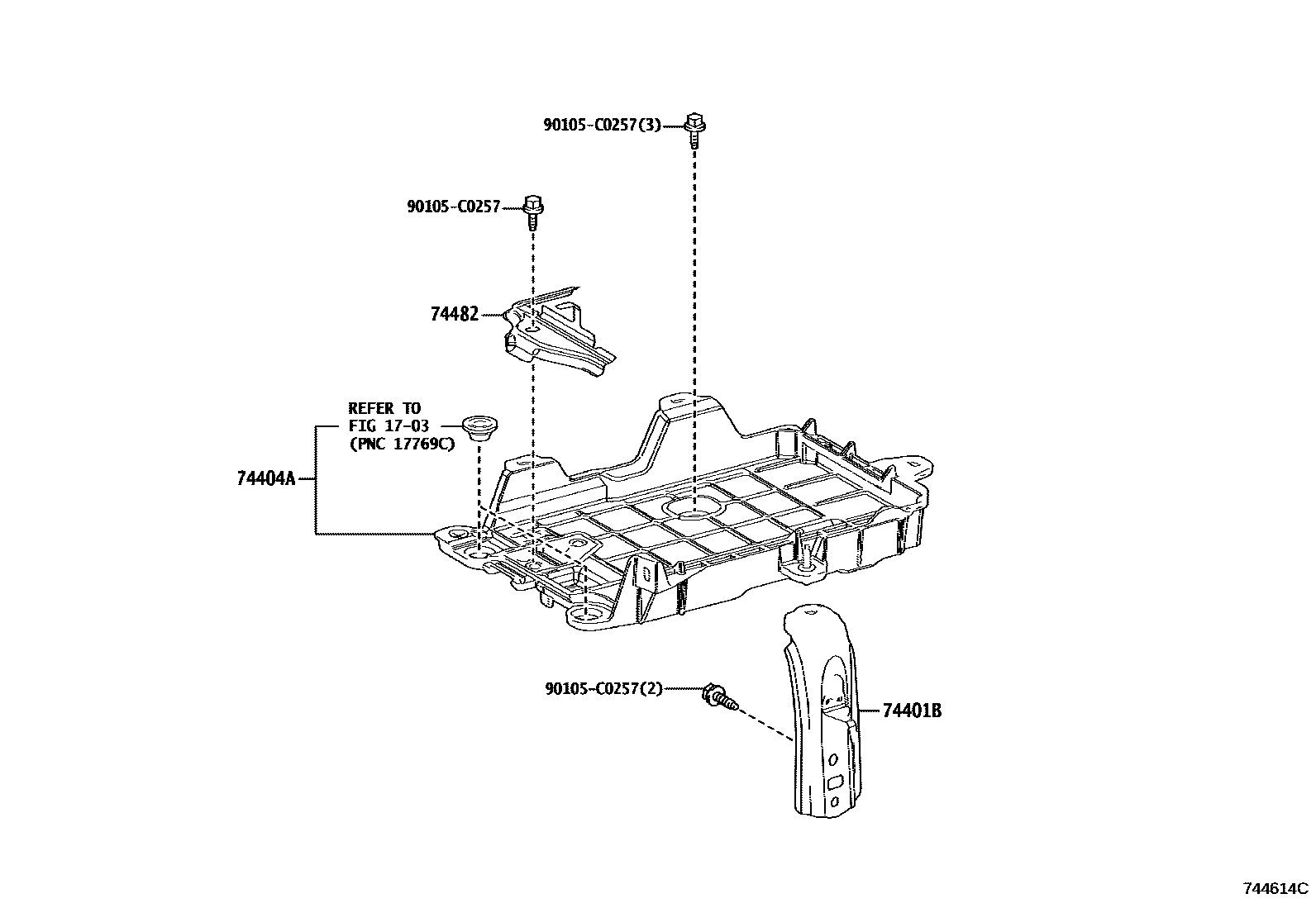

BATTERY CARRIER

0001 1 0002 1

1703AIR CLEANER

→ Go to FIG 17-03

74401BBRACKET SUB-ASSY, BATTERY CARRIER

main74401-06040iASV71,AXVA70,MXVA71201712-202103

74404ACLAMP SUB-ASSY, BATTERY

main74404-06210iASV71201712-201902

74482CLAMP, BATTERY, NO.2

main74482-06070iASV71201712-201902

90105C0257

main90105-C0257

5 parts on this diagram · 2 diagrams in section
